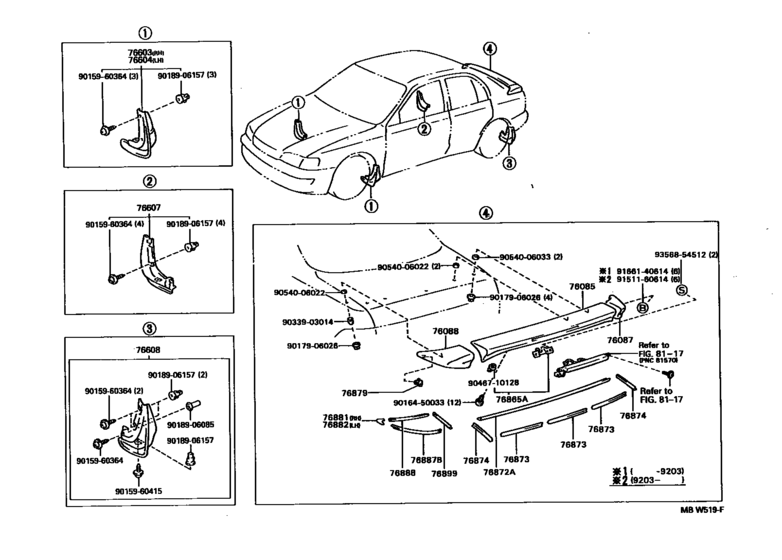

Mudguard & Spoiler ([02.1992 - ] (9202- )SED) Diagram Toyota CORONA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- CT190
- grade
- SELS
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 02.1992
- To
- 01.1996
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76603
|
76603
76621-29135-A0
Mudguard Sub-Assy, Front Fender, Rh
[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 SUPER WHITE 2,040 |
76621-29135-A0 |
— | ||
|
76603
|
76603
76621-29135-A1 Mudguard Sub-Assy, Front Fender, Rh[02.1992 - 03.1992] AT190,CT190,ST19#..EXG,EXS,SELS WARM GRAY PEARL MICA,046 |
76621-29135-A1 |
US $48.05 |
||
|
76603
|
76603
76621-29135-B0 Mudguard Sub-Assy, Front Fender, Rh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK BLUEISH GRAY ME,183 |
76621-29135-B0 |
US $48.05 |
||
|
76603
|
76603
76621-29135-B2 Mudguard Sub-Assy, Front Fender, Rh[12.1994 - 01.1996] AT190,CT190,ST190..SELS LI.GRAIGE ME,1A2 |
76621-29135-B2 |
US $94.64 |
||
|
76603
|
76603
76621-29135-C0 Mudguard Sub-Assy, Front Fender, Rh[12.1994 - 01.1996] AT190,CT190,ST190..SELS BLACK ME,205 |
76621-29135-C0 |
US $48.05 |
||
|
76603
|
76603
76621-29135-D1 Mudguard Sub-Assy, Front Fender, Rh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK WINE MICA M,3K1 |
76621-29135-D1 |
US $48.05 |
||
|
76603
|
76603
76621-29135-D2 Mudguard Sub-Assy, Front Fender, Rh[12.1994 - 01.1996] AT190,CT190,ST190..SELS MAGENTA MC,3L3 |
76621-29135-D2 |
US $94.64 |
||
|
76603
|
76603
76621-29135-E0 Mudguard Sub-Assy, Front Fender, Rh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS DK.GRAYISH BROWN ME,4H7 |
76621-29135-E0 |
US $48.05 |
||
|
76603
|
76603
76621-29135-E1 Mudguard Sub-Assy, Front Fender, Rh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS LIGHT BEIGE ME,4M3 |
76621-29135-E1 |
US $48.05 |
||
|
76603
|
76603
76621-29135-G0 Mudguard Sub-Assy, Front Fender, Rh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DK.GRAYISH OLIVE ME,6M7 |
76621-29135-G0 |
US $48.05 |
||
|
76603
|
76603
76621-29135-H0 Mudguard Sub-Assy, Front Fender, Rh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK TORQUOISE MICA,742 |
76621-29135-H0 |
US $48.05 |
||
|
76604
|
76604
76622-29135-A0
Mudguard Sub-Assy, Front Fender, Lh
[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 SUPER WHITE 2,040 |
76622-29135-A0 |
— | ||
|
76604
|
76604
76622-29135-A1 Mudguard Sub-Assy, Front Fender, Lh[02.1992 - 03.1992] AT190,CT190,ST19#..EXG,EXS,SELS WARM GRAY PEARL MICA,046 |
76622-29135-A1 |
US $48.05 |
||
|
76604
|
76604
76622-29135-B0 Mudguard Sub-Assy, Front Fender, Lh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK BLUEISH GRAY ME,183 |
76622-29135-B0 |
US $48.05 |
||
|
76604
|
76604
76622-29135-B2 Mudguard Sub-Assy, Front Fender, Lh[12.1994 - 01.1996] AT190,CT190,ST190..SELS LI.GRAIGE ME,1A2 |
76622-29135-B2 |
US $94.64 |
||
|
76604
|
76604
76622-29135-C0 Mudguard Sub-Assy, Front Fender, Lh[12.1994 - 01.1996] AT190,CT190,ST190..SELS BLACK ME,205 |
76622-29135-C0 |
US $48.05 |
||
|
76604
|
76604
76622-29135-D1 Mudguard Sub-Assy, Front Fender, Lh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK WINE MICA M,3K1 |
76622-29135-D1 |
US $48.05 |
||
|
76604
|
76604
76622-29135-D2 Mudguard Sub-Assy, Front Fender, Lh[12.1994 - 01.1996] AT190,CT190,ST190..SELS MAGENTA MC,3L3 |
76622-29135-D2 |
US $94.64 |
||
|
76604
|
76604
76622-29135-E0 Mudguard Sub-Assy, Front Fender, Lh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS DK.GRAYISH BROWN ME,4H7 |
76622-29135-E0 |
US $48.05 |
||
|
76604
|
76604
76622-29135-E1 Mudguard Sub-Assy, Front Fender, Lh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS LIGHT BEIGE ME,4M3 |
76622-29135-E1 |
US $48.05 |
||
|
76604
|
76604
76622-29135-G0 Mudguard Sub-Assy, Front Fender, Lh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DK.GRAYISH OLIVE ME,6M7 |
76622-29135-G0 |
US $48.05 |
||
|
76604
|
76604
76622-29135-H0 Mudguard Sub-Assy, Front Fender, Lh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK TORQUOISE MICA,742 |
76622-29135-H0 |
US $48.05 |
||
|
76607
|
76607
76625-29125-A0
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 SUPER WHITE 2,040 |
76625-29125-A0 |
— | ||
|
76607
|
76607
76625-29125-A1 Mudguard Sub-Assy, Quarter Panel, Rear Rh[02.1992 - 03.1992] AT190,CT190,ST19#..EXG,EXS,SELS WARM GRAY PEARL MICA,046 |
76625-29125-A1 |
US $48.05 |
||
|
76607
|
76607
76625-29125-B0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK BLUEISH GRAY ME,183 |
76625-29125-B0 |
US $48.05 |
||
|
76607
|
76607
76625-29125-B2 Mudguard Sub-Assy, Quarter Panel, Rear Rh[12.1994 - 01.1996] AT190,CT190,ST190..SELS LI.GRAIGE ME,1A2 |
76625-29125-B2 |
US $94.64 |
||
|
76607
|
76607
76625-29125-C0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[12.1994 - 01.1996] AT190,CT190,ST190..SELS BLACK ME,205 |
76625-29125-C0 |
US $48.05 |
||
|
76607
|
76607
76625-29125-D1 Mudguard Sub-Assy, Quarter Panel, Rear Rh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK WINE MICA M,3K1 |
76625-29125-D1 |
US $48.05 |
||
|
76607
|
76607
76625-29125-D2 Mudguard Sub-Assy, Quarter Panel, Rear Rh[12.1994 - 01.1996] AT190,CT190,ST190..SELS MAGENTA MC,3L3 |
76625-29125-D2 |
US $94.64 |
||
|
76607
|
76607
76625-29125-E0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS DK.GRAYISH OLIVE ME,4H7 |
76625-29125-E0 |
US $48.05 |
||
|
76607
|
76607
76625-29125-E1 Mudguard Sub-Assy, Quarter Panel, Rear Rh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS LIGHT BEIGE M,4M3 |
76625-29125-E1 |
US $48.05 |
||
|
76607
|
76607
76625-29125-G0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DK.GRAYISH OLIVE ME,6M7 |
76625-29125-G0 |
US $48.05 |
||
|
76607
|
76607
76625-29125-H0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK TORQUOISE MICA,742 |
76625-29125-H0 |
US $48.05 |
||
|
76608
|
76608
76626-29125-A0
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 SUPER WHITE 2,040 |
76626-29125-A0 |
— | ||
|
76608
|
76608
76626-29125-A1 Mudguard Sub-Assy, Quarter Panel, Rear Lh[02.1992 - 03.1992] AT190,CT190,ST19#..EXG,EXS,SELS WARM GRAY PEARL MICA,046 |
76626-29125-A1 |
US $48.05 |
||
|
76608
|
76608
76626-29125-B0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK BLUEISH GRAY ME,183 |
76626-29125-B0 |
US $48.05 |
||
|
76608
|
76608
76626-29125-B2 Mudguard Sub-Assy, Quarter Panel, Rear Lh[12.1994 - 01.1996] AT190,CT190,ST190..SELS LI.GRAIGE ME,1A2 |
76626-29125-B2 |
US $94.64 |
||
|
76608
|
76608
76626-29125-C0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[12.1994 - 01.1996] AT190,CT190,ST190..SELS BLACK ME,205 |
76626-29125-C0 |
US $48.05 |
||
|
76608
|
76608
76626-29125-D1 Mudguard Sub-Assy, Quarter Panel, Rear Lh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK WINE MICA M,3K1 |
76626-29125-D1 |
US $48.05 |
||
|
76608
|
76608
76626-29125-D2 Mudguard Sub-Assy, Quarter Panel, Rear Lh[12.1994 - 01.1996] AT190,CT190,ST190..SELS MAGENTA MC,3L3 |
76626-29125-D2 |
US $94.64 |
||
|
76608
|
76608
76626-29125-E0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS DK.GRAYISH OLIVE ME,4H7 |
76626-29125-E0 |
US $48.05 |
||
|
76608
|
76608
76626-29125-E1 Mudguard Sub-Assy, Quarter Panel, Rear Lh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS LIGHT BEIGE M,4M3 |
76626-29125-E1 |
US $48.05 |
||
|
76608
|
76608
76626-29125-G0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DK.GRAYISH OLIVE ME,6M7 |
76626-29125-G0 |
US $48.05 |
||
|
76608
|
76608
76626-29125-H0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[02.1992 - 08.1993] AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK TORQUOISE MICA,742 |
76626-29125-H0 |
US $48.05 |
||
|
9015960364
|
9015960364
90159-60364 SCREW WWASHER |
90159-60364 |
from US $0.88 |
||
|
9015960415
|
9015960415
90159-60415 SCREW WWASHER |
90159-60415 |
from US $0.86 |
||
|
9016450033
|
9016450033
90164-50033 New Genuine Part |
90164-50033 |
US $0.96 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9018906085
|
9018906085
90189-06085 GROMMET |
90189-06085 |
US $1.89 |
||
|
9018906157
|
9018906157
90189-06157 GROMMET SCREW |
90189-06157 |
from US $0.78 |
||
|
9033903014
|
9033903014
90339-03014
New Genuine Part
|
90339-03014 |
— | ||
|
9046710128
|
9046710128
90467-10128 New Genuine Part |
90467-10128 |
US $1.89 |
||
|
9054006022
|
9054006022
90540-06022
SPACER
|
90540-06022 |
— | ||
| replacement | |||||
|
9054006022
|
9054006022
90540-06032 CUSHION |
90540-06032 |
from US $2.55 |
||
|
9054006033
|
9054006033
90540-06033 New Genuine Part |
90540-06033 |
US $2.62 |
||
|
9151160614
|
9151160614
91511-60614
LEXBOLT
|
91511-60614 |
— | ||
| replacement | |||||
|
9151160614
|
9151160614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.78 |
||
|
9166140614
|
9166140614
91661-40614
New Genuine Part
|
91661-40614 |
— | ||
| replacement | |||||
|
9166140614
|
9166140614
91661-A0614 New Genuine Part |
91661-A0614 |
US $1.76 |
||
|
9356854512
|
9356854512
93568-54512 SCREW |
93568-54512 |
US $1.12 |
||
