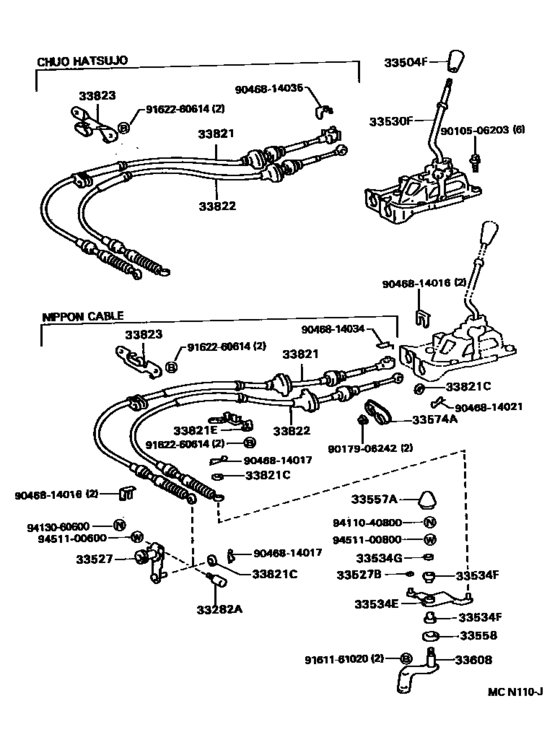

Shift Lever & Retainer ([02.1992 - ] (9202- )CT190,ST190..MTM) Diagram Toyota CORONA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- CT190
- grade
- SELS
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 02.1992
- To
- 01.1996
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33282A
|
33282A
33282-35010 Pin, Lever Lock (For Shift Outer Lever)[02.1992 - 01.1996] CT190,ST190..MTM |
33282-35010 |
from US $1.83 |
||
|
33504F
|
33504F
33504-12180-C0 Knob Sub-Assy, Shift Lever[02.1992 - 02.1994] CT190,ST190..MTM..KYO BLACK,TRIM2#,4#; AT190,CT19#,ST190,195..MTM..(EXS,GX,SELS) BLACK,TRIM2# |
33504-12180-C0 |
US $51.25 |
||
| replacement | |||||
|
33504F
|
33504F
33504-12180-B7 Knob Sub-Assy, Shift Lever[02.1992 - 02.1994] CT190,ST190..MTM..KYO BLACK,TRIM2#,4#; AT190,CT19#,ST190,195..MTM..(EXS,GX,SELS) BLACK,TRIM2# |
33504-12180-B7 |
from US $36.33 |
||
|
33504F
|
33504F
33504-12180-E1 Knob Sub-Assy, Shift Lever[02.1992 - 02.1994] AT190,CT19#,ST190,195..MTM..(EXS,GX,SELS) ANTELOPE,TRIM4# |
33504-12180-E1 |
US $51.25 |
||
| replacement | |||||
|
33504F
|
33504F
33504-12180-B7 Knob Sub-Assy, Shift Lever[02.1992 - 02.1994] AT190,CT19#,ST190,195..MTM..(EXS,GX,SELS) ANTELOPE,TRIM4# |
33504-12180-B7 |
from US $36.33 |
||
|
33527
|
33527
33527-32010 Lever, Control Shift (For Floor Shift)[02.1992 - 01.1996] CT190,ST190..MTM |
33527-32010 |
US $56.06 |
||
|
33527B
|
33527B
33557-33010 Bush (For Shift & Select Lever)[05.1992 - 11.1993] CT190,ST190..MTM |
33557-33010 |
from US $7.20 |
||
|
33527B
|
33527B
90389-10009 Bush (For Shift & Select Lever)[02.1992 - 05.1992] CT190,ST190,195..MTM |
90389-10009 |
from US $9.92 |
||
|
33530F
|
33530F
33530-20570 Lever Assy, Shift (For Floor Shift)[02.1992 - 01.1996] AT190,CT190,ST190..MTM |
33530-20570 |
US $158.70 |
||
|
33534E
|
33534E
33534-32030
Crank, Selecting Bell, No.2
[02.1992 - 05.1992] CT190,ST190..MTM |
33534-32030 |
— | ||
|
33534E
|
33534E
33534-33010
Crank, Selecting Bell, No.2
[05.1992 - 01.1996] CT190,ST190..MTM |
33534-33010 |
— | ||
|
33534F
|
33534F
90386-12022 Bush (For Selecting Bellcrank No.1)[02.1992 - 01.1996] AT190,CT19#,ST190,195..MTM |
90386-12022 |
from US $2.08 |
||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[02.1992 - 01.1996] AT190,CT19#,ST190,195..MTM |
90201-08028 |
US $0.96 |
||
|
33557A
|
33557A
33557-32010 Cover, Selecting Bellcrank Dust, No.1[02.1992 - 01.1996] AT190,CT19#,ST190,195..MTM |
33557-32010 |
from US $4.48 |
||
|
33558
|
33558
33558-32010
Cover, Selecting Bellcrank Dust, No.2
[02.1992 - 01.1996] CT190,ST190..MTM |
33558-32010 |
— | ||
|
33574A
|
33574A
33574-20350 Retainer, Shift Cable Grommet, No.1[02.1992 - 01.1996] AT190,CT19#,ST190,195..MTM |
33574-20350 |
US $8.30 |
||
|
33608
|
33608
33608-32021 Support Sub-Assy, Selecting Bellcrank[02.1992 - 05.1992] CT190,ST190..MTM |
33608-32021 |
US $12.52 |
||
|
33608
|
33608
33608-33010 Support Sub-Assy, Selecting Bellcrank[05.1992 - 01.1996] CT190,ST190..MTM |
33608-33010 |
US $18.08 |
||
|
33821
|
33821
33821-2B120 Cable Transmission Control Shift (For Floor Shift)[02.1992 - 02.1994] CT190..MTM |
33821-2B120 |
US $200.93 |
||
|
33821C
|
33821C
90201-08023 Washer, Plate (For Transfer Control Cable)[02.1992 - 01.1996] AT190,CT19#,ST190,195..MTM SHIFT LEVER SIDE |
90201-08023 |
US $0.73 |
||
|
33821C
|
33821C
90201-08077 Washer, Plate (For Transmission Control Cable)[02.1992 - 01.1996] AT190,CT19#,ST190,195..MTM 外径＝３０,TRANSAXLE SIDE |
90201-08077 |
from US $1.56 |
||
|
33821E
|
33821E
90949-01805 Clamp, No.1 (For Transmission Control Cable)[02.1992 - 01.1996] AT190,CT19#,ST190,195..MTM |
90949-01805 |
US $4.37 |
||
|
33822
|
33822
33822-20470 Cable Transmission Control Select (For Floor Shift)[02.1992 - 02.1994] CT190..MTM |
33822-20470 |
US $177.63 |
||
|
33823
|
33823
33823-20100 Bracket, Transmission Control Cable, No.1[02.1992 - 01.1996] AT190,CT190,ST190..MTM NIPPON CABLE |
33823-20100 |
US $11.65 |
||
|
33823
|
33823
33823-20120 Bracket, Transmission Control Cable, No.1[02.1992 - 01.1996] AT190,CT190,ST190..MTM CHUO HATSUJO |
33823-20120 |
US $7.43 |
||
|
9010506203
|
9010506203
90105-06203 Bolt |
90105-06203 |
US $1.60 |
||
| replacement | |||||
|
9010506203
|
9010506203
90105-06258 BOLT, WASHER BASED |
90105-06258 |
US $1.76 |
||
|
9017906242
|
9017906242
90179-06242
Direct
|
90179-06242 |
— | ||
| replacement | |||||
|
9017906242
|
9017906242
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.90 |
||
|
9046814021
|
9046814021
90468-14021 New Genuine Part |
90468-14021 |
US $1.60 |
||
|
9046814034
|
9046814034
90468-14034 New Genuine Part |
90468-14034 |
US $2.62 |
||
|
9046814035
|
9046814035
90468-14035 New Genuine Part |
90468-14035 |
US $1.40 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.72 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9162260614
|
9162260614
91622-60614 New Genuine Part |
91622-60614 |
US $1.16 |
||
| replacement | |||||
|
9162260614
|
9162260614
91621-J0614 BOLT W-WASHER |
91621-J0614 |
US $1.76 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9413060600
|
9413060600
94130-60600 Nut, Wire Adjusting, No.1 |
94130-60600 |
from US $0.84 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
