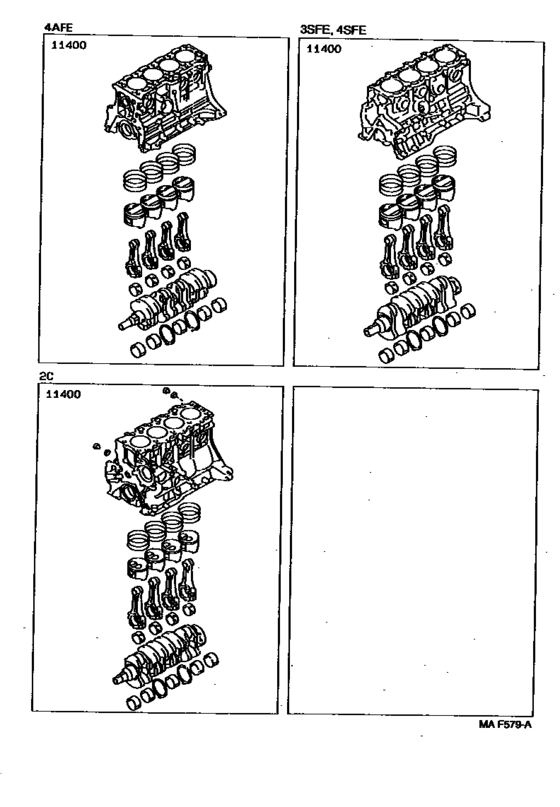

Short Block Assembly ([02.1992 - ] (9202- )) Diagram Toyota CORONA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- CT190
- grade
- SELS
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 02.1992
- To
- 01.1996
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11400
|
11400
11400-64370 Block Assy, Short[02.1992 - 04.1995] 2C..CT190 |
11400-64370 |
US $5,401.76 |
||
| replacements | |||||
|
11400
|
11400
11115-64170-B0 Gasket, Cylinder Head[02.1992 - 04.1995] 2C..CT190 |
11115-64170-B0 |
from US $59.10 |
||
|
11400
|
11400
90105-16079 Bolt(For Crankshaft Pulley Set)[02.1992 - 04.1995] 2C..CT190 |
90105-16079 |
from US $4.45 |
||
|
11400
|
11400
11381-64020 Retainer, Engine Rear Oil Seal[02.1992 - 04.1995] 2C..CT190 |
11381-64020 |
US $63.77 |
||
|
11400
|
11400
90560-16025 Washer, Plate(For Crankshaft Pulley Set)[02.1992 - 04.1995] 2C..CT190 |
90560-16025 |
US $8.39 |
||
|
11400
|
11400
11400-64483 Block Assy, Short[02.1992 - 04.1995] 2C..CT190 |
11400-64483 |
US $3,407.04 |
||
|
11400
|
11400
11400-64480 Block Assy, Short[04.1995 - 01.1996] 2C..CT190 |
11400-64480 |
US $5,416.32 |
||
| replacements | |||||
|
11400
|
11400
90105-16079 Bolt(For Crankshaft Pulley Set)[04.1995 - 01.1996] 2C..CT190 |
90105-16079 |
from US $4.45 |
||
|
11400
|
11400
11115-64170-B0 Gasket, Cylinder Head[04.1995 - 01.1996] 2C..CT190 |
11115-64170-B0 |
from US $59.10 |
||
|
11400
|
11400
11381-64020 Retainer, Engine Rear Oil Seal[04.1995 - 01.1996] 2C..CT190 |
11381-64020 |
US $63.77 |
||
|
11400
|
11400
90560-16025 Washer, Plate(For Crankshaft Pulley Set)[04.1995 - 01.1996] 2C..CT190 |
90560-16025 |
US $8.39 |
||
|
11400
|
11400
11400-64483 Block Assy, Short[04.1995 - 01.1996] 2C..CT190 |
11400-64483 |
US $3,407.04 |
||
