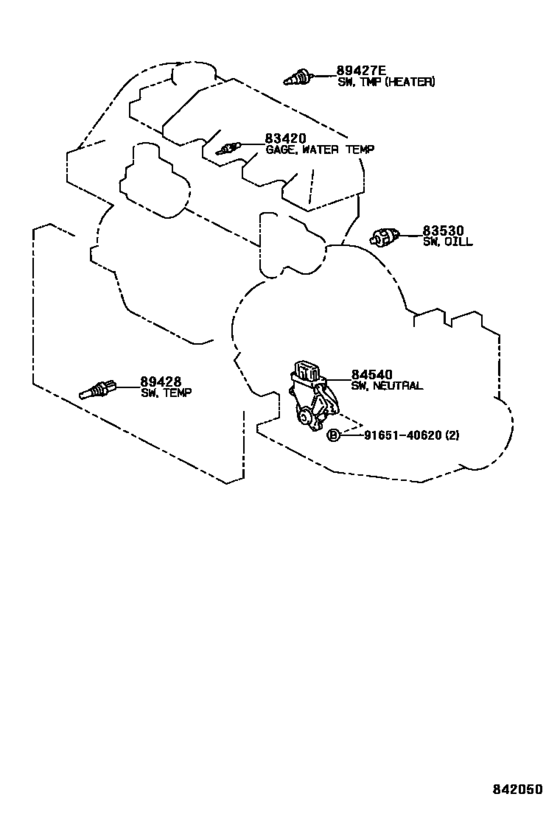

Switch & Relay & Computer ([01.1996 - ] ENGINE & TRANSMISSION (9601- )CT190..UKP) Diagram Toyota CORONA
- Year
- 1996 - 1997
- Sales region
- General
- Frame
- CT190
- grade
- GL
- body
- SED
- ENGINE
- 2CT
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CORONA (SED/LB/UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Corona SED
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[01.1996 - 10.1997] CT190..UKP |
83420-20020 |
from US $30.62 |
||
|
83530
|
83530
83530-30060
Switch Assy, Oil Pressure (For Engine)
[01.1996 - 10.1997] CT190..UKP |
83530-30060 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60030 Switch Assy, Oil Pressure (For Engine)[01.1996 - 10.1997] CT190..UKP |
83530-60030 |
from US $26.54 |
||
|
89427E
|
89427E
89427-12051 Switch, Temperature Detect[01.1996 - 10.1997] CT190..UKP |
89427-12051 |
US $77.17 |
||
|
89428
|
89428
89428-33010 Switch, Temperature Detect[01.1996 - 10.1997] CT190,ST191..UKP |
89428-33010 |
from US $88.80 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
