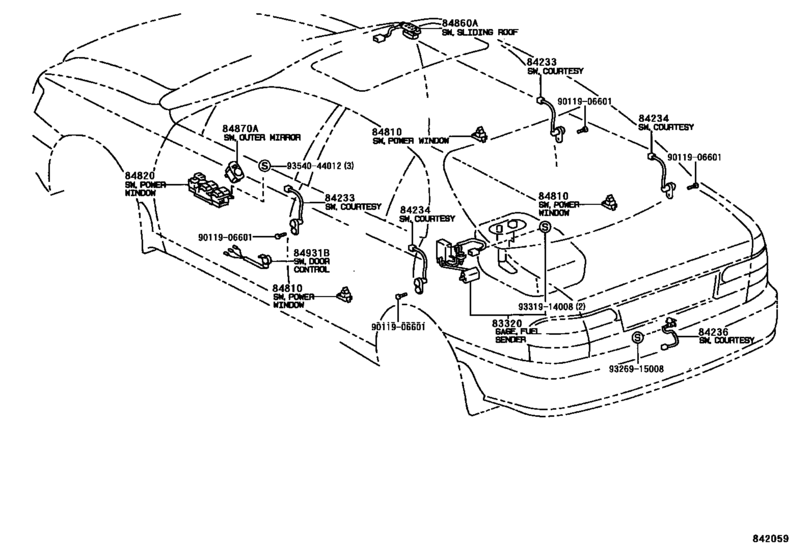

Switch & Relay & Computer ([01.1996 - ] ROOF,DOOR,FLOOR & LUGGAGE (9601- )UKP) Diagram Toyota CORONA
- Year
- 1996 - 1997
- Sales region
- General
- Frame
- CT190
- grade
- GL
- body
- SED
- ENGINE
- 2CT
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CORONA (SED/LB/UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Corona SED
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-09030
Gage Assy, Fuel Sender
[01.1996 - 10.1997] CT190..UKP |
83320-09030 |
— | ||
| replacement | |||||
|
83320
|
83320
83320-80242
Gage Assy, Fuel Sender
[01.1996 - 10.1997] CT190..UKP |
83320-80242 |
— | ||
|
84233
|
84233
84231-05010
Switch Assy, Courtesy Lamp (For Front Door)
[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
84231-05010 |
— | ||
|
84234
|
84234
84231-05010
Switch Assy, Courtesy Lamp (For Front Door)
[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
84231-05010 |
— | ||
|
84236
|
84236
84231-20290 Switch Assy, Courtesy Lamp(For Luggage Compartment Room)[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
84231-20290 |
US $14.41 |
||
|
84810
|
84810
84810-05010-C0
Switch Assy, Power Window Regulator
[01.1996 - 10.1997] AT190,CT190,ST191..UKP BLACK,TRIM1#,8#,FRONT |
84810-05010-C0 |
— | ||
|
84810
|
84810
84810-05020-C0
Switch Assy, Power Window Regulator
[01.1996 - 10.1997] AT190,CT190,ST191..UKP BLACK,TRIM1#,8#,REAR |
84810-05020-C0 |
— | ||
|
84820
|
84820
84820-05021
Master Switch Assy, Power Window Regulator
[01.1996 - 10.1997] AT190,CT190,ST191..UKP..LHD |
84820-05021 |
— | ||
|
84860A
|
84860A
84860-20021-B0 Switch Assy, Sliding Roof[01.1996 - 10.1997] AT190,CT190,ST191..UKP GRAY,TRIM1#,8# |
84860-20021-B0 |
US $53.29 |
||
|
84870A
|
84870A
84870-05010
Switch Assy, Outer Mirror
[01.1996 - 10.1997] AT190,CT190,ST191..UKP |
84870-05010 |
— | ||
|
84931B
|
84931B
84931-20200 Switch, Door ControlDOOR CONTROL [01.1996 - 10.1997] CT190,ST191..UKP LH; AT190..UKP W(*PW),LH |
84931-20200 |
US $122.06 |
||
|
84931B
|
84931B
84931-20231 Switch, Door Control[01.1996 - 10.1997] CT190,ST191..UKP RH; AT190..UKP W(*PW),RH |
84931-20231 |
US $48.48 |
||
|
9011906601
|
9011906601
90119-06601
New Genuine Part
|
90119-06601 |
— | ||
|
9326915008
|
9326915008
93269-15008 New Genuine Part |
93269-15008 |
US $0.96 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.28 |
||
|
9354044012
|
9354044012
93540-44012 Screw, Front Body Pillar Garnish |
93540-44012 |
US $1.46 |
||
