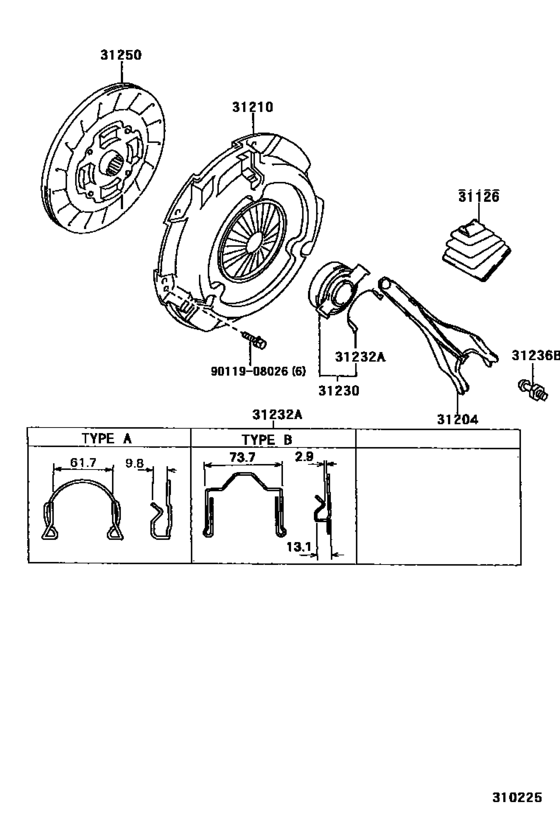

Clutch & Release Fork ([01.1996 - ] (9601- )CT210,211..MTM) Diagram Toyota CORONA
- Year
- 1996 - 1997
- Sales region
- Japan
- Frame
- CT210
- grade
- PRM
- ENGINE
- 2CT
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1996
- To
- 12.1997
- Vehicle Model
- Corona
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-32010 Boot, Clutch Release Fork[01.1996 - 12.2001] CT210,211,215,ST215..MTM |
31126-32010 |
US $14.56 |
||
|
31204
|
31204
31204-20100 Fork Sub-Assy, Clutch Release[01.1996 - 12.2001] CT210,211,215,ST215..MTM |
31204-20100 |
US $30.40 |
||
|
31210
|
31210
31210-32130 Cover Assy, Clutch[01.1996 - 12.1997] CT21#..MTM |
31210-32130 |
US $200.93 |
||
| replacement | |||||
|
31210
|
31210
31210-33030 Cover Assy, Clutch[01.1996 - 12.1997] CT21#..MTM |
31210-33030 |
US $199.47 |
||
|
31230
|
31230
31230-32060 Bearing Assy, Clutch Release[01.1996 - 12.1997] CT210..MTM |
31230-32060 |
from US $52.42 |
||
|
31232A
|
31232A
31232-20020 Clip, Release Bearing Hub[01.1996 - 12.2001] CT210,211,215,ST215..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
31232-20020 |
from US $1.54 |
||
|
31232A
|
31232A
31232-32050 Clip, Release Bearing Hub[01.1996 - 12.1997] CT210..MTM TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
31232-32050 |
US $2.33 |
||
|
31236B
|
31236B
31236-32010 Support, Release Fork[01.1996 - 12.1997] CT210..MTM |
31236-32010 |
US $12.48 |
||
|
31250
|
31250
31250-32100
Disc Assy, Clutch
[01.1996 - 06.1999] CT210,211..MTM |
31250-32100 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-32102 Disc Assy, Clutch[01.1996 - 06.1999] CT210,211..MTM |
31250-32102 |
US $254.80 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
