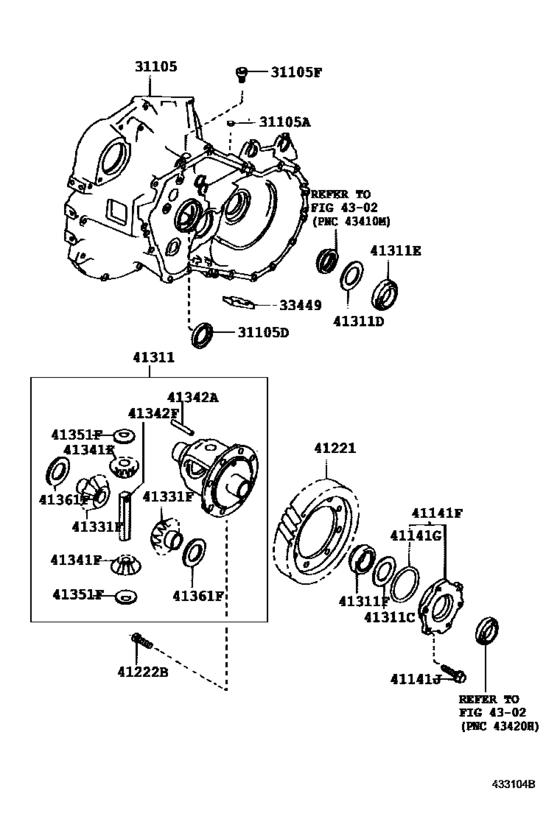

Front Axle Housing & Differential ([01.1996 - 12.1997] S51 (9601-9712)CT210..MTM ; (9712- )CT211..MTM) Diagram Toyota CORONA
- Year
- 1996 - 1997
- Sales region
- Japan
- Frame
- CT210
- grade
- PRM
- ENGINE
- 2CT
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1996
- To
- 12.1997
- Vehicle Model
- Corona
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105
|
31105
31105-32070 Case Sub-Assy, Transaxle(Mtm)[04.1997 - 12.2001] CT210,211..MTM |
31105-32070 |
US $486.30 |
||
|
31105
|
31105
31105-33020 Case Sub-Assy, Transaxle(Mtm)[01.1996 - 03.1997] CT210..MTM |
31105-33020 |
US $484.85 |
||
| replacement | |||||
|
31105
|
31105
31105-32070 Case Sub-Assy, Transaxle(Mtm)[01.1996 - 03.1997] CT210..MTM |
31105-32070 |
US $486.30 |
||
|
31105A
|
31105A
90331-08002 Plug, Tight(For Front Transaxle Case)[01.1996 - 12.2001] AT21#,CT210,211..MTM |
90331-08002 |
US $1.46 |
||
|
31105D
|
31105D
90311-30006
Seal, Oil, No.1(For Front Transaxle Case)
[01.1996 - 12.2001] CT210,211,215,ST215..MTM |
90311-30006 |
— | ||
| replacement | |||||
|
31105D
|
31105D
90311-30017 Seal, Oil, No.1(For Front Transaxle Case)OIL, NO.1(FOR FRONT TRANSAXLE CASE) [01.1996 - 12.2001] CT210,211,215,ST215..MTM |
90311-30017 |
from US $4.64 |
||
|
31105F
|
31105F
90341-10065 Plug, Straight, No.1[01.1996 - 12.1997] CT210..MTM |
90341-10065 |
from US $3.52 |
||
|
33449
|
33449
33449-32020 Magnet, Transmission[01.1996 - 12.1997] CT210..MTM |
33449-32020 |
US $10.40 |
||
|
41141F
|
41141F
41101-32010 Retainer, Rear Differential Side Bearing[01.1996 - 12.1997] CT210..MTM |
41101-32010 |
US $42.66 |
||
| replacements | |||||
|
41141F
|
41141F
41101-32011 Retainer, Front Differential Side Bearing[01.1996 - 12.1997] CT210..MTM |
41101-32011 |
US $38.58 |
||
|
41141F
|
41141F
90311-35048 Oil Seal, Front Drive Shaft, Lh[01.1996 - 12.1997] CT210..MTM |
90311-35048 |
from US $4.64 |
||
|
41141G
|
41141G
90301-63004 Ring, O (For Transfer Extension Housing)[01.1996 - 12.1997] CT210..MTM |
90301-63004 |
US $4.89 |
||
|
41141J
|
41141J
90105-08061 Bolt(For Rear Differential Side Bearing Retainer)[01.1996 - 12.1997] CT210..MTM ＊８−１．２５ＰＸ２６．５−２３．５ |
90105-08061 |
US $3.06 |
||
| replacement | |||||
|
41141J
|
41141J
91511-C0825 Bolt(For Front Differential Side Bearing Retainer)[01.1996 - 12.1997] CT210..MTM ＊８−１．２５ＰＸ２６．５−２３．５ |
91511-C0825 |
US $2.08 |
||
|
41221
|
41221
41221-32080 Gear, Front Differential Ring[01.1996 - 12.1997] CT210..MTM |
41221-32080 |
US $171.81 |
||
|
41222B
|
41222B
90105-11040 Bolt (For Rear Differential Ring Gear Set)[01.1996 - 12.1997] AT21#,CT210..MTM |
90105-11040 |
US $2.08 |
||
|
41311
|
41311
41301-32060 Case Sub-Assy, Rear Differential[01.1996 - 02.1999] CT210,211..MTM |
41301-32060 |
US $569.30 |
||
| replacement | |||||
|
41311
|
41311
41301-32061 Case Sub-Assy, Rear Differential[01.1996 - 02.1999] CT210,211..MTM |
41301-32061 |
US $599.29 |
||
|
41311C
|
41311C
90564-45001 Shim (For Front Differential Case Rear)[01.1996 - 12.1997] CT210..MTM 厚さ＝１．９０，マーク ０１ |
90564-45001 |
US $4.66 |
||
|
41311C
|
41311C
90564-45002 Shim (For Front Differential Case Rear)[01.1996 - 12.1997] CT210..MTM 厚さ＝１．９５，マーク ０２ |
90564-45002 |
US $4.66 |
||
|
41311C
|
41311C
90564-45003 Shim (For Front Differential Case Rear)[01.1996 - 12.1997] CT210..MTM 厚さ＝２．００，マーク ０３ |
90564-45003 |
US $4.66 |
||
|
41311C
|
41311C
90564-45004 Shim (For Front Differential Case Rear)[01.1996 - 12.1997] CT210..MTM 厚さ＝２．０５，マーク ０４ |
90564-45004 |
US $4.66 |
||
|
41311C
|
41311C
90564-45005 Shim (For Front Differential Case Rear)[01.1996 - 12.1997] CT210..MTM 厚さ＝２．１０，マーク ０５ |
90564-45005 |
US $4.66 |
||
|
41311C
|
41311C
90564-45006 Shim (For Front Differential Case Rear)[01.1996 - 12.1997] CT210..MTM 厚さ＝２．１５，マーク ０６ |
90564-45006 |
US $4.66 |
||
|
41311C
|
41311C
90564-45007 Shim (For Front Differential Case Rear)[01.1996 - 12.1997] CT210..MTM 厚さ＝２．２０，マーク ０７ |
90564-45007 |
US $4.66 |
||
|
41311C
|
41311C
90564-45008 Shim (For Front Differential Case Rear)[01.1996 - 12.1997] CT210..MTM 厚さ＝２．２５，マーク ０８ |
90564-45008 |
US $4.66 |
||
|
41311C
|
41311C
90564-45009 Shim (For Front Differential Case Rear)[01.1996 - 12.1997] CT210..MTM 厚さ＝２．３０，マーク ０９ |
90564-45009 |
US $4.66 |
||
|
41311C
|
41311C
90564-45010 Shim (For Front Differential Case Rear)[01.1996 - 12.1997] CT210..MTM 厚さ＝２．３５，マーク １０ |
90564-45010 |
US $4.66 |
||
|
41311C
|
41311C
90564-45011 Shim(For Rear Differential Case)[01.1996 - 12.1997] CT210..MTM 厚さ＝２．４０，マーク １１ |
90564-45011 |
US $3.93 |
||
|
41311C
|
41311C
90564-45012 Shim (For Front Differential Case Rear)[01.1996 - 12.1997] CT210..MTM 厚さ＝２．４５，マーク １２ |
90564-45012 |
US $4.66 |
||
|
41311C
|
41311C
90564-45013 Shim (For Front Differential Case Rear)[01.1996 - 12.1997] CT210..MTM 厚さ＝２．５０，マーク １３ |
90564-45013 |
US $4.66 |
||
|
41311C
|
41311C
90564-45014 Shim (For Front Differential Case Rear)[01.1996 - 12.1997] CT210..MTM 厚さ＝２．５５，マーク １４ |
90564-45014 |
US $4.66 |
||
|
41311C
|
41311C
90564-45015 Shim(For Rear Differential Case)[01.1996 - 12.1997] CT210..MTM 厚さ＝２．６０，マーク １５ |
90564-45015 |
US $4.80 |
||
|
41311C
|
41311C
90564-45016 Shim (For Front Differential Case Rear)[01.1996 - 12.1997] CT210..MTM 厚さ＝２．６５，マーク １６ |
90564-45016 |
US $4.66 |
||
|
41311C
|
41311C
90564-45017 Shim (For Front Differential Case Rear)[01.1996 - 12.1997] CT210..MTM 厚さ＝２．７０，マーク １７ |
90564-45017 |
US $4.95 |
||
|
41311C
|
41311C
90564-45018 Shim (For Front Differential Case Rear)[01.1996 - 12.1997] CT210..MTM 厚さ＝２．７５，マーク １８ |
90564-45018 |
US $4.95 |
||
|
41311C
|
41311C
90564-45019 Shim (For Front Differential Case Rear)[01.1996 - 12.1997] CT210..MTM 厚さ＝２．８０，マーク １９ |
90564-45019 |
US $4.95 |
||
|
41311D
|
41311D
90564-45011 Shim(For Rear Differential Case)[01.1996 - 12.2001] CT210,211..MTM 厚さ＝２．４０，マーク １１ |
90564-45011 |
US $3.93 |
||
|
41311E
|
41311E
90366-40016 Bearing(For Rear Differential Case)[01.1996 - 12.2001] CT210,211..MTM |
90366-40016 |
from US $29.18 |
||
|
41311F
|
41311F
90366-40064 Bearing(For Rear Differential Case)[01.1996 - 12.1997] CT210..MTM |
90366-40064 |
from US $25.33 |
||
|
41331F
|
41331F
41331-32010 Gear, Rear Differential Side[01.1996 - 12.1997] CT210,ST210 |
41331-32010 |
US $55.74 |
||
|
41341F
|
41341F
41341-30011 Pinion, Rear Differential[01.1996 - 12.1997] CT210,ST210 |
41341-30011 |
from US $32.83 |
||
| replacement | |||||
|
41341F
|
41341F
41039-28010 Gear Kit, Differential, Rear[01.1996 - 12.1997] CT210,ST210 |
41039-28010 |
US $251.60 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[01.1996 - 12.1997] AT21#,CT210,ST210 |
90250-06058 |
US $2.56 |
||
|
41342F
|
41342F
41342-32020
Shaft, Rear Differential Pinion
[01.1996 - 12.1997] CT210,ST210 |
41342-32020 |
— | ||
| replacement | |||||
|
41342F
|
41342F
41342-52060 Shaft, Front Differential Pinion, No.1[01.1996 - 12.1997] CT210,ST210 |
41342-52060 |
US $17.82 |
||
|
41351F
|
41351F
41351-32010 Washer, Rear Differential Pinion Thrust[01.1996 - 12.1997] CT210,ST210 |
41351-32010 |
from US $1.44 |
||
|
41361F
|
41361F
41361-22020 Washer, Rear Differential Side Gear Thrust, No.1[01.1996 - 12.1997] AT21#,CT210..MTM 厚さ＝１．００，マーク ０２ |
41361-22020 |
US $2.80 |
||
|
41361F
|
41361F
41361-22030 Washer, Rear Differential Side Gear Thrust, No.1[01.1996 - 12.1997] AT21#,CT210..MTM 厚さ＝１．１０，マーク ０３ |
41361-22030 |
US $3.14 |
||
|
41361F
|
41361F
41361-22040 Washer, Rear Differential Side Gear Thrust, No.1[01.1996 - 12.1997] AT21#,CT210..MTM 厚さ＝１．２０，マーク ０４ |
41361-22040 |
from US $3.52 |
||
|
41361F
|
41361F
41361-22140 Washer, Rear Differential Side Gear Thrust, No.1[01.1996 - 12.1997] AT21#,CT210..MTM 厚さ＝０．９５，マーク １４ |
41361-22140 |
US $2.53 |
||
|
41361F
|
41361F
41361-22150 Washer, Rear Differential Side Gear Thrust, No.1[01.1996 - 12.1997] AT21#,CT210..MTM 厚さ＝１．０５，マーク １５ |
41361-22150 |
US $2.62 |
||
|
41361F
|
41361F
41361-22160 Washer, Rear Differential Side Gear Thrust, No.1[01.1996 - 12.1997] AT21#,CT210..MTM 厚さ＝１．１５，マーク １６ |
41361-22160 |
US $2.62 |
||
