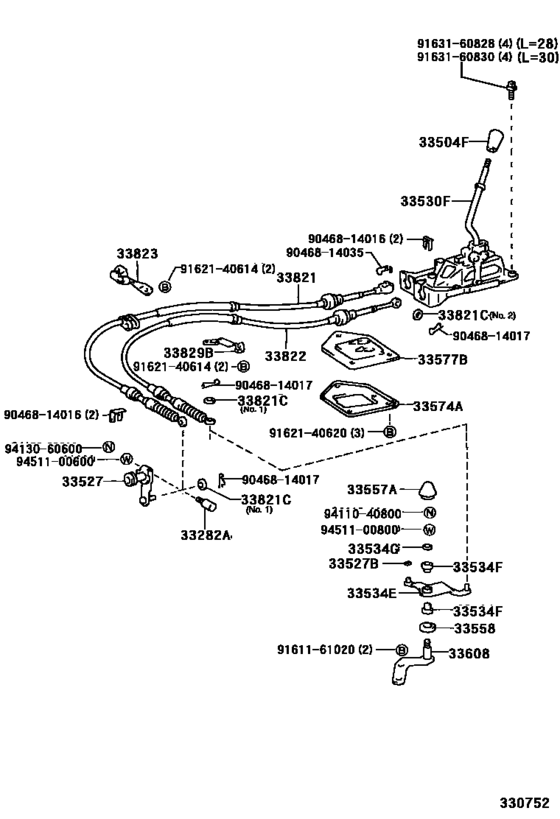

Shift Lever & Retainer ([01.1996 - 12.1997] (9601-9712)CT210..MTM ; (9712-0108)CT211..MTM) Diagram Toyota CORONA
- Year
- 1996 - 1997
- Sales region
- Japan
- Frame
- CT210
- grade
- PRM
- ENGINE
- 2CT
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1996
- To
- 12.1997
- Vehicle Model
- Corona
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33282A
|
33282A
33282-35010 Pin, Lever Lock (For Shift Outer Lever)[01.1996 - 12.1997] CT210..MTM |
33282-35010 |
from US $2.56 |
||
|
33504F
|
33504F
33504-12180-C0 Knob Sub-Assy, Shift Lever[01.1996 - 12.1997] AT21#,CT21#,ST215..MTM BLACK,TRIM1#,4# |
33504-12180-C0 |
US $51.25 |
||
| replacement | |||||
|
33504F
|
33504F
33504-12180-B7 Knob Sub-Assy, Shift Lever[01.1996 - 12.1997] AT21#,CT21#,ST215..MTM BLACK,TRIM1#,4# |
33504-12180-B7 |
from US $36.33 |
||
|
33527
|
33527
33527-32010 Lever, Control Shift (For Floor Shift)[01.1996 - 12.1997] CT210..MTM |
33527-32010 |
US $56.06 |
||
|
33527B
|
33527B
33557-33010 Bush (For Shift & Select Lever)[01.1996 - 12.2001] CT210,211,215,ST215..MTM |
33557-33010 |
from US $7.20 |
||
|
33530F
|
33530F
33530-20720 Lever Assy, Shift (For Floor Shift)[01.1996 - 01.1997] AT21#,CT210..MTM |
33530-20720 |
US $147.06 |
||
| replacement | |||||
|
33530F
|
33530F
33530-20721 Lever Assy, Shift (For Floor Shift)[01.1996 - 01.1997] AT21#,CT210..MTM |
33530-20721 |
US $147.06 |
||
|
33530F
|
33530F
33530-20721 Lever Assy, Shift (For Floor Shift)[01.1997 - 12.1997] AT21#,CT210..MTM |
33530-20721 |
US $147.06 |
||
|
33534E
|
33534E
33534-33010
Crank, Selecting Bell, No.2
[01.1996 - 12.1997] CT210..MTM |
33534-33010 |
— | ||
|
33534F
|
33534F
90386-12022 Bush (For Selecting Bellcrank No.1)[01.1996 - 12.2001] AT21#,CT210,211,215,ST215..MTM |
90386-12022 |
from US $2.08 |
||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[01.1996 - 12.2001] AT21#,CT210,211,215,ST215..MTM |
90201-08028 |
US $0.96 |
||
|
33557A
|
33557A
33557-32010 Cover, Selecting Bellcrank Dust, No.1[01.1996 - 12.2001] AT21#,CT210,211,215,ST215..MTM |
33557-32010 |
from US $4.48 |
||
|
33558
|
33558
33558-32010
Cover, Selecting Bellcrank Dust, No.2
[01.1996 - 12.1997] CT210..MTM |
33558-32010 |
— | ||
|
33574A
|
33574A
33574-20380 Retainer, Shift Cable Grommet, No.1[01.1996 -] AT21#,CT21#,ST21# |
33574-20380 |
US $18.78 |
||
|
33577B
|
33577B
33577-20010 Cover, Control Shaft Hole[01.1996 -] AT21#,CT210,211,215,ST215..MTM |
33577-20010 |
US $26.21 |
||
|
33608
|
33608
33608-33010 Support Sub-Assy, Selecting Bellcrank[01.1996 - 12.1997] CT210..MTM |
33608-33010 |
US $18.08 |
||
|
33821
|
33821
33821-2B330 Cable Transmission Control Shift (For Floor Shift)[01.1996 -] CT210,211..MTM |
33821-2B330 |
US $200.93 |
||
|
33821C
|
33821C
90201-08077 Washer, Plate (For Transmission Control Cable)[01.1996 -] AT21#,CT210,211,215,ST215..MTM 外径＝３０,ＮＯ．１ |
90201-08077 |
from US $1.56 |
||
|
33821C
|
33821C
90201-10042 Washer, Plate (For Transfer Control Cable)[01.1996 -] AT21#,CT210,211,215,ST215..MTM ＮＯ．２ |
90201-10042 |
from US $1.44 |
||
|
33822
|
33822
33822-20630 Cable Transmission Control Select (For Floor Shift)[01.1996 -] CT210,211..MTM |
33822-20630 |
US $174.72 |
||
|
33823
|
33823
33823-20190 Bracket, Transmission Control Cable, No.1[01.1996 -] AT21#,CT210,211..MTM |
33823-20190 |
US $5.10 |
||
|
33829B
|
33829B
33829-20060 Clamp, Transmission Control Cable[01.1996 - 12.1997] AT21#,CT21#,ST215..MTM |
33829-20060 |
US $6.41 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.90 |
||
|
9046814035
|
9046814035
90468-14035 New Genuine Part |
90468-14035 |
US $1.40 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.72 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9162140614
|
9162140614
91621-40614 BOLT |
91621-40614 |
from US $1.28 |
||
|
9162140620
|
9162140620
91621-40620 Bolt |
91621-40620 |
from US $1.92 |
||
|
9163160828
|
9163160828
91631-60828 BOLT WWASHER |
91631-60828 |
US $1.16 |
||
|
9163160830
|
9163160830
91631-60830
New Genuine Part
|
91631-60830 |
— | ||
| replacement | |||||
|
9163160830
|
9163160830
91631-G0830 BOLT WWASHER |
91631-G0830 |
US $2.56 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.03 |
||
|
9413060600
|
9413060600
94130-60600 Nut, Wire Adjusting, No.1 |
94130-60600 |
from US $0.84 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
