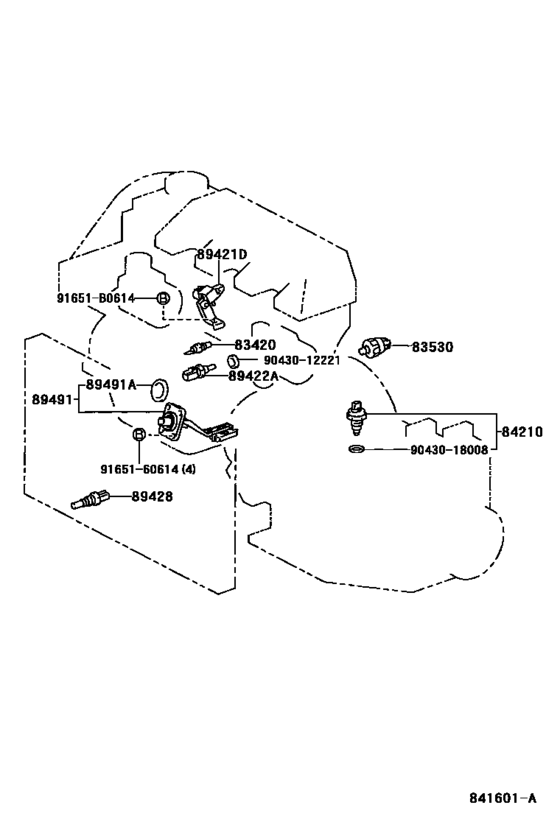

Switch & Relay & Computer ([10.1997 - ] ENGINE & TRANSMISSION (9710- )CT220) Diagram Toyota CORONA
- Year
- 1997 - 2000
- Sales region
- General
- Frame
- CT220
- grade
- TERRA
- body
- SED
- ENGINE
- 2CT
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 10.1997
- To
- 07.2000
- Vehicle Model
- Corona
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[10.1997 - 07.2000] CT220 |
83420-20020 |
from US $30.62 |
||
|
83530
|
83530
83530-30100
Switch Assy, Oil Pressure (For Engine)
[10.1997 - 03.1998] CT220 |
83530-30100 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[10.1997 - 03.1998] CT220 |
83530-60010 |
from US $24.82 |
||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[03.1998 - 07.2000] CT220 |
83530-60010 |
from US $24.82 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[10.1997 -] AT220,CT220,ST220..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[10.1997 -] AT220,CT220,ST220..MTM |
84210-52050 |
from US $20.67 |
||
|
89421D
|
89421D
89420-20260
Sensor, Turbo Pressure (For Diesel Turbo)
[10.1997 - 07.2000] CT220 |
89420-20260 |
— | ||
|
89422A
|
89422A
89422-35010 Sensor, Water Temperature (For E.f.i.)[10.1997 - 07.2000] CT220 |
89422-35010 |
from US $40.58 |
||
|
89428
|
89428
89428-20110 Switch, Temperature Detect, No.2[10.1997 - 07.2000] CT220 |
89428-20110 |
from US $82.45 |
||
|
89491
|
89491
89491-20090 Sensor, Engine Oil LevelENGINE OIL LEVEL [10.1997 - 07.2000] CT220 |
89491-20090 |
US $304.30 |
||
| replacement | |||||
|
89491
|
89491
89491-20071 Sensor, Engine Oil LevelENGINE OIL LEVEL [10.1997 - 07.2000] CT220 |
89491-20071 |
US $304.30 |
||
|
89491A
|
89491A
90430-27001 Gasket, Engine Oil Level Sensor[10.1997 -] CT220,ST220 |
90430-27001 |
from US $1.09 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
