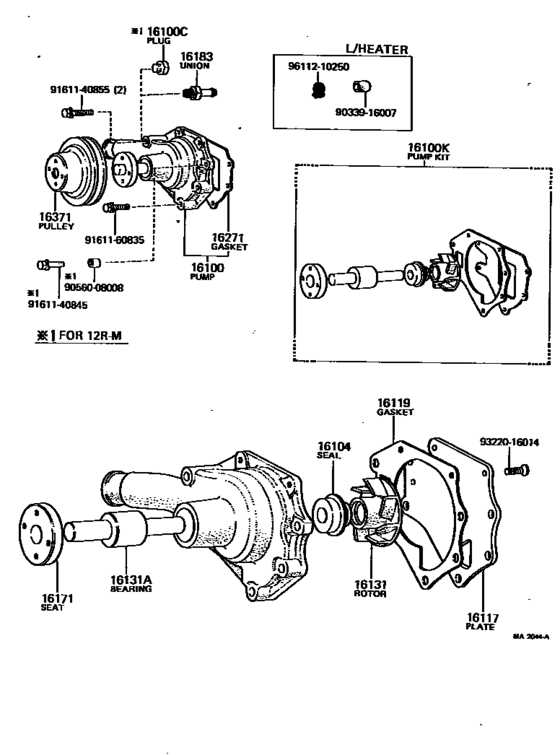

Water Pump ([11.1975 - 08.1978] (7511-7808)12R#) Diagram Toyota CORONA
- Year
- 1973 - 1978
- Sales region
- General
- Frame
- RT100
- grade
- DLX
- body
- SED
- ENGINE
- 12R
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1973
- To
- 08.1978
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Corona
- Driver's Position
- RHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-39115
Pump Assy, Engine Water
[08.1973 - 11.1975] 12R..RT100,110,116 |
16100-39115 |
— | ||
|
16100
|
16100
16100-39116
Pump Assy, Engine Water
[11.1975 - 08.1978] 12R#..RT100,110,116 |
16100-39116 |
— | ||
|
16100K
|
16100K
04161-31020
Pump Kit, Water
[08.1973 - 11.1975] 12R..RT100,110,116 |
04161-31020 |
— | ||
|
16100K
|
16100K
04161-31021 Pump Kit, WaterWATER [11.1975 - 08.1977] 12R#..RT100,110,116 |
04161-31021 |
US $64.65 |
||
| replacement | |||||
|
16100K
|
16100K
04161-31023
Pump Kit, Water
[11.1975 - 08.1977] 12R#..RT100,110,116 |
04161-31023 |
— | ||
|
16100K
|
16100K
04161-31023
Pump Kit, Water
[08.1977 - 08.1978] 12R#..RT100,116 |
04161-31023 |
— | ||
|
16104
|
16104
16104-41040 Seal Set, Water PumpWATER PUMP [08.1973 - 11.1975] 12R..RT100,110,116 |
16104-41040 |
US $29.99 |
||
|
16104
|
16104
16104-41110
Seal Set, Water Pump
[11.1975 - 05.1979] 12R#,16R,18R#..RT10#,11# |
16104-41110 |
— | ||
| replacement | |||||
|
16104
|
16104
16104-15020 Seal Set, Water Pump[11.1975 - 05.1979] 12R#,16R,18R#..RT10#,11# |
16104-15020 |
US $22.13 |
||
|
16117
|
16117
16117-31010
Plate, Water Pump
[08.1973 - 09.1974] 12R..RT100,110,116 |
16117-31010 |
— | ||
|
16117
|
16117
16117-31011
Plate, Water Pump
[09.1974 - 11.1975] 12R..RT100,110,116 |
16117-31011 |
— | ||
|
16117
|
16117
16117-31031 Plate, Water Pump[11.1975 - 08.1978] 12R#..RT100,110,116 |
16117-31031 |
US $12.52 |
||
|
16119
|
16119
16124-31010
Gasket, Water Pump Body
[08.1973 - 02.1974] 12R..RT100,116 |
16124-31010 |
— | ||
| replacement | |||||
|
16119
|
16119
16124-31011
Gasket, Water Pump Body
[08.1973 - 02.1974] 12R..RT100,116 |
16124-31011 |
— | ||
|
16119
|
16119
16124-31011
Gasket, Water Pump Body
[02.1974 - 11.1975] 12R..RT100,110,116 |
16124-31011 |
— | ||
|
16119
|
16119
16124-31031
Gasket, Water Pump Body
[11.1975 - 08.1978] 12R#..RT100,110,116 |
16124-31031 |
— | ||
| replacement | |||||
|
16119
|
16119
16124-31032
Gasket, Water Pump Body
[11.1975 - 08.1978] 12R#..RT100,110,116 |
16124-31032 |
— | ||
|
16131
|
16131
16131-31010
Rotor, Water Pump
[08.1973 - 11.1975] 12R..RT100,110,116 |
16131-31010 |
— | ||
|
16131
|
16131
16131-31031
Rotor, Water Pump
[11.1975 - 08.1977] 12R#..RT100,110,116 |
16131-31031 |
— | ||
|
16131
|
16131
16131-31032
Rotor, Water Pump
[08.1977 - 08.1978] 12R#..RT100,116 |
16131-31032 |
— | ||
|
16131A
|
16131A
90369-30003 Bearing, Water Pump[11.1975 - 08.1978] 12R#..RT100,110,116 WPB16124BR |
90369-30003 |
US $54.31 |
||
| replacement | |||||
|
16131A
|
16131A
90369-30022
Bearing, Water Pump
[11.1975 - 08.1978] 12R#..RT100,110,116 WPB16124BR |
90369-30022 |
— | ||
|
16131A
|
16131A
90369-30035
Bearing, Water Pump
[08.1973 - 11.1975] 12R..RT100,110,116 WPB16124RS |
90369-30035 |
— | ||
|
16171
|
16171
16171-24031 Seat, Water Pump Pulley[07.1975 - 08.1978] 12R#..RT100,110,116 |
16171-24031 |
US $14.71 |
||
|
16171
|
16171
16171-31030
Seat, Water Pump Pulley
[08.1973 - 07.1975] 12R..RT100,110,116 |
16171-31030 |
— | ||
|
16183
|
16183
87251-20070
Joint Or Union, Front Heater Hose Through Or Inlet Valve
[11.1975 - 08.1978] 12R..RT100,116 |
87251-20070 |
— | ||
|
16271
|
16271
16271-30010
Gasket, Water Pump
[08.1973 - 11.1975] 12R..RT100,110,116 |
16271-30010 |
— | ||
|
16271
|
16271
16271-30011 Gasket, Water PumpWATER PUMP [11.1975 - 08.1978] 12R#..RT100,110,116 |
16271-30011 |
US $3.64 |
||
| replacement | |||||
|
16271
|
16271
16271-31010
Gasket, Water Pump
[11.1975 - 08.1978] 12R#..RT100,110,116 |
16271-31010 |
— | ||
|
16371
|
16371
16371-31021 Pulley, FanFAN [08.1973 - 11.1975] 12R..RT100,110,116 |
16371-31021 |
US $41.20 |
||
|
16371
|
16371
16371-31022 Pulley, Fan[11.1975 - 08.1978] 12R#..RT100,110,116 |
16371-31022 |
US $21.55 |
||
|
9033916007
|
9033916007
90339-16007
Plug
|
90339-16007 |
— | ||
| replacement | |||||
|
9033916007
|
9033916007
90339-16001 Plug, Heater Water |
90339-16001 |
from US $2.88 |
||
|
9056008008
|
9056008008
90560-08008
Spacer, Fan
|
90560-08008 |
— | ||
|
9161140845
|
9161140845
91611-40845
Bolt(For Clutch Release Cylinder Setting)
|
91611-40845 |
— | ||
| replacement | |||||
|
9161140845
|
9161140845
91611-B0845 Bolt(for Clutch Release Cylinder Setting) |
91611-B0845 |
US $2.72 |
||
|
9161140855
|
9161140855
91611-40855
Bolt(For Rocker Support Set)
|
91611-40855 |
— | ||
| replacement | |||||
|
9161140855
|
9161140855
91611-60855 Bolt(For Rocker Support Set) |
91611-60855 |
US $1.60 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.44 |
||
|
9322016014
|
9322016014
93220-16014 SCREW |
93220-16014 |
from US $0.86 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.36 |
||
