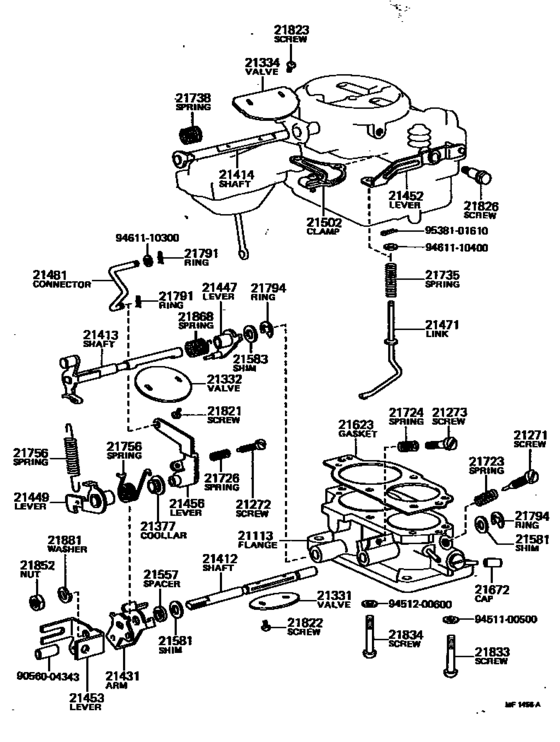

Carburetor ([12.1975 - 08.1978] (7512-7808)12RM) Diagram Toyota CORONA
- Year
- 1975 - 1977
- Sales region
- General
- Frame
- RT100
- grade
- DLX
- body
- SED
- ENGINE
- 12RM
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 11.1975
- To
- 01.1977
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Corona
- Driver's Position
- LHD
- Destination
- PHL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21113
|
21113
21113-31320
Flange, Carburetor
[12.1975 - 08.1978] 12RM..RT100,110,116 |
21113-31320 |
— | ||
|
21271
|
21271
21271-31140 Screw, Idle AdjustingIDLE ADJUSTING [12.1975 - 08.1978] 12RM..RT100,110,116 |
21271-31140 |
US $9.76 |
||
| replacement | |||||
|
21271
|
21271
21271-38010 Screw, Idle AdjustingIDLE ADJUSTING [12.1975 - 08.1978] 12RM..RT100,110,116 |
21271-38010 |
US $12.52 |
||
|
21272
|
21272
21273-30052
Screw, 1St Idle Adjusting
[11.1975 - 08.1978] 12R#..RT100,110,116 |
21273-30052 |
— | ||
| replacement | |||||
|
21272
|
21272
21272-61140 Screw, 1St Idle Adjusting[11.1975 - 08.1978] 12R#..RT100,110,116 |
21272-61140 |
US $2.77 |
||
|
21273
|
21273
21844-33010
Screw, 1St Idle Adjusting
[09.1975 - 01.1977] 12R#,16R,18R#..RT10#,11# |
21844-33010 |
— | ||
|
21331
|
21331
21331-33080 Valve, 1St Throttle1ST THROTTLE [12.1975 - 08.1978] 12RM..RT100,110,116 |
21331-33080 |
US $10.63 |
||
|
21332
|
21332
21332-33080
Valve, 2Nd Throttle
[08.1973 - 08.1978] 12R#..RT100,110,116 |
21332-33080 |
— | ||
|
21334
|
21334
21334-33080
Valve, Choke
[08.1973 - 08.1978] 12R#..RT100,110,116 |
21334-33080 |
— | ||
|
21377
|
21377
21377-31250
Collar(For 2Nd Throttle Shaft)
[12.1975 - 08.1978] 12RM..RT100,110,116 |
21377-31250 |
— | ||
|
21412
|
21412
21412-25012
Shaft, 1St Throttle
[12.1975 - 08.1978] 12RM..RT100,110,116 |
21412-25012 |
— | ||
|
21413
|
21413
21413-33080
Shaft, 2Nd Throttle
[12.1975 - 08.1978] 12RM..RT100,110,116 |
21413-33080 |
— | ||
|
21414
|
21414
21414-31022
Shaft, Choke
[11.1975 - 08.1978] 12R#..RT100,110,116 |
21414-31022 |
— | ||
|
21431
|
21431
21431-31250
Arm, 1St Throttle Shaft
[12.1975 - 08.1978] 12RM..RT100,110,116 |
21431-31250 |
— | ||
|
21447
|
21447
21447-44100
Lever, Diaphragm
[09.1975 - 01.1977] 12R#,16R,18R#..RT10#,11# |
21447-44100 |
— | ||
|
21449
|
21449
21449-25010
Lever, 2Nd Kick
[12.1975 - 08.1978] 12RM..RT100,110,116 |
21449-25010 |
— | ||
|
21452
|
21452
21452-31250
Lever, Pump
[12.1975 - 08.1978] 12RM..RT100,110,116 |
21452-31250 |
— | ||
|
21453
|
21453
21453-31270
Lever, 1St Throttle
[12.1975 - 08.1978] 12RM..RT100,110,116 |
21453-31270 |
— | ||
|
21456
|
21456
21456-31250
Lever, 1St Throttle Idle Adjusting, No.1
[12.1975 - 08.1978] 12RM..RT100,110,116 |
21456-31250 |
— | ||
|
21471
|
21471
21471-25010
Link, Pump Connecting
[12.1975 - 08.1978] 12RM..RT100,110,116 |
21471-25010 |
— | ||
|
21481
|
21481
21481-31251
Connector, 1St Idle
[12.1975 - 08.1978] 12RM..RT100,110,116 |
21481-31251 |
— | ||
|
21502
|
21502
21523-31251
Clamp Sub-Assy, Choke Wire
[12.1975 - 08.1978] 12RM..RT100,110,116 |
21523-31251 |
— | ||
|
21557
|
21557
21557-60200
Spacer(For 1St Idle Cam)
[08.1973 - 08.1978] 12R#..RT100,110,116 |
21557-60200 |
— | ||
|
21581
|
21581
21581-25010
Shim, 1St Throttle Shaft
[08.1973 - 08.1978] 12R#..RT100,110,116 T=0.1 |
21581-25010 |
— | ||
|
21581
|
21581
21582-25010
Shim, 1St Throttle Shaft
[08.1973 - 08.1978] 12R#..RT100,110,116 T=0.1 |
21582-25010 |
— | ||
|
21581
|
21581
21583-25010
Shim, 1St Throttle Shaft
[08.1973 - 08.1978] 12R#..RT100,110,116 T=0.3 |
21583-25010 |
— | ||
|
21581
|
21581
21585-25010
Shim, 1St Throttle Shaft
[08.1973 - 08.1978] 12R#..RT100,110,116 T=0.6 |
21585-25010 |
— | ||
|
21583
|
21583
21583-21010
Shim, 1St Throttle Shaft
[08.1973 - 08.1978] 12R#..RT100,110,116 |
21583-21010 |
— | ||
|
21623
|
21623
21623-31141
Gasket, Body Flange
[12.1975 - 08.1978] 12RM..RT100,110,116 |
21623-31141 |
— | ||
|
21672
|
21672
21672-31140
Cap
[09.1975 - 01.1977] 12R#,16R,18R#..RT10#,11# |
21672-31140 |
— | ||
|
21723
|
21723
21723-21030 Spring, Idle Adjusting[09.1975 - 01.1977] 12R#,16R,18R#..RT10#,11# |
21723-21030 |
US $4.19 |
||
|
21724
|
21724
21726-40010 Spring, Throttle Adjusting[08.1973 - 08.1978] 12R#..RT100,110,116 |
21726-40010 |
US $4.66 |
||
|
21726
|
21726
21723-21030 Spring, Idle Adjusting[11.1975 - 08.1978] 12R#..RT100,110,116 |
21723-21030 |
US $4.19 |
||
|
21735
|
21735
21735-21032 Spring, Pump Arm[08.1973 - 08.1978] 12R#..RT100,110,116 |
21735-21032 |
US $4.51 |
||
|
21738
|
21738
21738-31250
Spring, Choke Valve Relief
[11.1975 - 08.1978] 12R#..RT100,110,116 |
21738-31250 |
— | ||
|
21756
|
21756
21756-31170
Spring, Back(For Throttle Shaft)
[12.1975 - 08.1978] 12RM..RT100,110,116 DIAPHRAGM |
21756-31170 |
— | ||
|
21756
|
21756
21756-31250
Spring, Back(For Throttle Shaft)
[12.1975 - 08.1978] 12RM..RT100,110,116 1ST SHAFT |
21756-31250 |
— | ||
|
21791
|
21791
21791-60010
Ring, Snap, No.1(For Carburetor Link)
[09.1975 - 01.1977] 12R#,16R,18R#..RT10#,11# |
21791-60010 |
— | ||
| replacement | |||||
|
21791
|
21791
21791-13010 Ring, Snap, No.1(For Carburetor Link)[09.1975 - 01.1977] 12R#,16R,18R#..RT10#,11# |
21791-13010 |
US $3.32 |
||
|
21794
|
21794
21794-40010 Ring, Retainer, No.1(For Throttle Shaft)[08.1973 - 01.1977] 12R#..RT100,110,116 |
21794-40010 |
US $3.06 |
||
|
21821
|
21821
21821-34031
Screw, 1St Throttle Valve Set
[09.1975 - 01.1977] 12R#,16R,18R#..RT10#,11# |
21821-34031 |
— | ||
|
21822
|
21822
21822-44101
Screw, 1St Throttle Valve Set
[09.1975 - 01.1977] 12R#,16R,18R#..RT10#,11# |
21822-44101 |
— | ||
|
21823
|
21823
21822-10011 Screw, 1St Throttle Valve SetCHOKE, VALVE SET [08.1973 - 08.1978] 12R#..RT100,110,116 |
21822-10011 |
US $3.49 |
||
|
21826
|
21826
21826-31012
Screw, Pump Arm Set
[11.1975 - 12.1976] 12R#..RT100,110,116 |
21826-31012 |
— | ||
|
21826
|
21826
21826-31280
Screw, Pump Arm Set
[12.1976 - 08.1978] 12R#..RT100,110,116 |
21826-31280 |
— | ||
|
21833
|
21833
21833-33010
Screw, Set, No.1(For Carburetor Body Set)
[08.1973 - 08.1978] 12R#..RT100,110,116 |
21833-33010 |
— | ||
|
21834
|
21834
21834-31140
Screw, Set, No.2(For Carburetor Body Set)
[08.1973 - 08.1978] 12R#..RT100,110,116 |
21834-31140 |
— | ||
|
21852
|
21852
21852-30010 Nut, Throttle Lever Set[09.1975 - 01.1977] 12R#,16R,18R#..RT10#,11# |
21852-30010 |
US $4.22 |
||
|
21868
|
21868
21868-33080 Spring, Diaphragm ReliefDIAPHRAGM RELIEF [09.1975 - 01.1977] 12R#,16R,18R#..RT10#,11# |
21868-33080 |
US $5.39 |
||
|
21881
|
21881
21881-60010 Washer, Lock(For Throttle Shaft)[09.1975 - 01.1977] 12R#,16R,18R#..RT10#,11# |
21881-60010 |
US $3.79 |
||
|
9056004343
|
9056004343
90560-04343 New Genuine Part |
90560-04343 |
US $3.64 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.08 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
|
9461110400
|
9461110400
94611-10400 New Genuine Part |
94611-10400 |
US $1.38 |
||
|
9538101610
|
9538101610
95381-01610 New Genuine Part |
95381-01610 |
US $1.75 |
||
