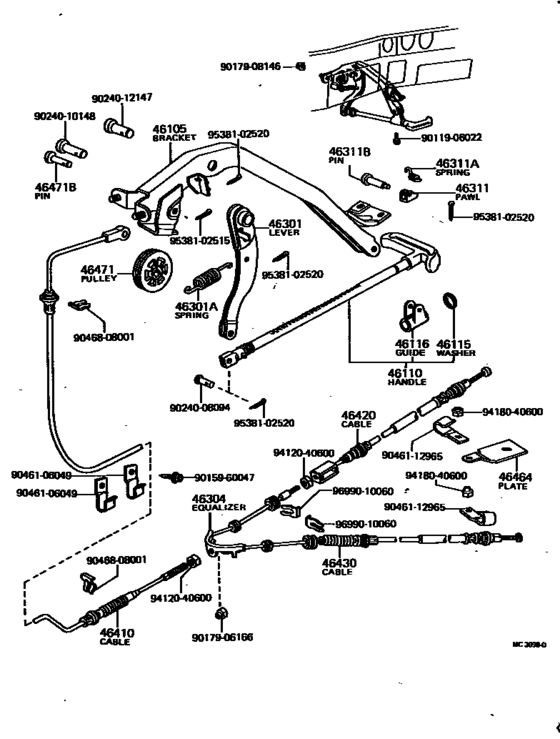

Parking Brake & Cable ([04.1975 - 08.1978] (7504-7808)LHD..3H) Diagram Toyota CORONA
- Year
- 1973 - 1978
- Sales region
- Europe
- Frame
- RT100
- grade
- DLX
- body
- SED
- ENGINE
- 12R
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1973
- To
- 08.1978
- Gear Shift Type
- 3H
- No.of Doors
- 4D
- Vehicle Model
- Corona
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46105
|
46105
46105-20030
Bracket Sub-Assy, Parking Brake Planger Or Pedal
[04.1975 - 01.1977] RT100..LHD..3H |
46105-20030 |
— | ||
|
46105
|
46105
46105-20031
Bracket Sub-Assy, Parking Brake Planger Or Pedal
[01.1977 - 08.1978] RT100..LHD..3H |
46105-20031 |
— | ||
|
46110
|
46110
46120-20040
Handle Assy, Parking Brake Control
[04.1975 - 08.1978] RT100..LHD..3H STEICK TYPE |
46120-20040 |
— | ||
|
46110
|
46110
46201-20020 Handle Assy, Parking Brake ControlPARKING BRAKE CONTROL [08.1973 - 05.1974] RT102; RT112,117,118; RT100,116..LHD;RT100..RHD..4F..STD |
46201-20020 |
US $77.17 |
||
| replacement | |||||
|
46110
|
46110
46201-20100-01
Handle Assy, Parking Brake Control
[08.1973 - 05.1974] RT102; RT112,117,118; RT100,116..LHD;RT100..RHD..4F..STD |
46201-20100-01 |
— | ||
|
46110
|
46110
46201-20020-01 Handle Assy, Parking Brake ControlPARKING BRAKE CONTROL [01.1977 - 05.1979] RT100,104,11#..LHD CENTER TYPE,BLACK,BLACK,TRIM2# |
46201-20020-01 |
US $75.71 |
||
| replacement | |||||
|
46110
|
46110
46201-20100-01
Handle Assy, Parking Brake Control
[01.1977 - 05.1979] RT100,104,11#..LHD CENTER TYPE,BLACK,BLACK,TRIM2# |
46201-20100-01 |
— | ||
|
46115
|
46115
46115-20010 Washer, Parking Brake Plunger[01.1977 - 08.1978] RT100..3H;RT116..RHD..3H |
46115-20010 |
US $2.62 |
||
|
46116
|
46116
46116-20050 Guide, Parking Brake Plunger[10.1976 - 08.1978] RT100..3H;RT116..RHD..3H |
46116-20050 |
US $7.86 |
||
|
46301
|
46301
46301-20030
Lever Sub-Assy, Parking Brake Intermediate
[04.1975 - 08.1978] RT100..LHD..3H |
46301-20030 |
— | ||
|
46301A
|
46301A
90506-12175 Spring, Tension(For Intermediate Lever)TENSION(FOR INTERMEDIATE LEVER) [04.1975 - 08.1978] RT100..3H;RT116..RHD..3H |
90506-12175 |
US $4.51 |
||
|
46304
|
46304
46341-20020 Equalizer Sub-Assy, Parking BrakePARKING BRAKE [08.1973 - 05.1979] RT10#,11# |
46341-20020 |
US $8.59 |
||
| replacement | |||||
|
46304
|
46304
46341-22030
Equalizer Sub-Assy, Parking Brake
[08.1973 - 05.1979] RT10#,11# |
46341-22030 |
— | ||
|
46311
|
46311
46311-20030 Pawl, Parking Brake[08.1973 - 08.1978] RT100..3H;RT116..RHD..3H STEICK TYPE |
46311-20030 |
US $3.20 |
||
|
46311
|
46311
46311-22020
Pawl, Parking Brake
[08.1973 - 05.1979] RT10#,11#..LHD CENTER TYPE |
46311-22020 |
— | ||
|
46311A
|
46311A
90508-08405 Spring(For Parking Brake Pawl)[04.1975 - 08.1978] RT100..3H;RT116..RHD..3H |
90508-08405 |
US $2.04 |
||
|
46311B
|
46311B
90240-08156 Pin, Parking Brake Pawl Pivot[04.1975 - 08.1978] RT100..3H;RT116..RHD..3H STEICK TYPE |
90240-08156 |
US $2.72 |
||
|
46311B
|
46311B
90243-06017 Pin, Parking Brake Pawl PivotPARKING BRAKE PAWL PIVOT [08.1973 - 05.1979] RT10#,11#..LHD CENTER TYPE |
90243-06017 |
US $3.20 |
||
|
46410
|
46410
46410-20140 Cable Assy, Parking Brake, No.1PARKING BRAKE, NO.1 [04.1975 - 01.1977] RT100..LHD..3H |
46410-20140 |
US $117.94 |
||
| replacement | |||||
|
46410
|
46410
46410-20141
Cable Assy, Parking Brake, No.1
[04.1975 - 01.1977] RT100..LHD..3H |
46410-20141 |
— | ||
|
46410
|
46410
46410-20141
Cable Assy, Parking Brake, No.1
[01.1977 - 08.1978] RT100..LHD..3H |
46410-20141 |
— | ||
|
46420
|
46420
46420-20060 Cable Assy, Parking Brake, No.2PARKING BRAKE, NO.2 [08.1973 - 05.1979] RT10#,110,112,114 |
46420-20060 |
US $63.63 |
||
| replacement | |||||
|
46420
|
46420
46420-20061 Cable Assy, Parking Brake, No.2[08.1973 - 05.1979] RT10#,110,112,114 |
46420-20061 |
US $63.63 |
||
|
46430
|
46430
46430-20060
Cable Assy, Parking Brake, No.3
[08.1973 - 09.1975] RT10#,110,112,114 |
46430-20060 |
— | ||
| replacement | |||||
|
46430
|
46430
46430-20081
Cable Assy, Parking Brake, No.3
[08.1973 - 09.1975] RT10#,110,112,114 |
46430-20081 |
— | ||
|
46430
|
46430
46430-20080 Cable Assy, Parking Brake, No.3PARKING BRAKE, NO.3 [09.1975 - 05.1979] RT10#,110,114 |
46430-20080 |
US $91.73 |
||
| replacement | |||||
|
46430
|
46430
46430-20081
Cable Assy, Parking Brake, No.3
[09.1975 - 05.1979] RT10#,110,114 |
46430-20081 |
— | ||
|
46471
|
46471
46471-20020 Pulley, Wire[04.1975 - 08.1978] RT100..3H;RT116..RHD..3H |
46471-20020 |
US $9.17 |
||
|
46471B
|
46471B
90240-10157 Pin (For High & Low Shift Rod)[04.1975 - 08.1978] RT100..3H;RT116..RHD..3H |
90240-10157 |
US $1.76 |
||
|
9011906022
|
9011906022
90119-06022 BOLT |
90119-06022 |
US $2.08 |
||
| replacement | |||||
|
9011906022
|
9011906022
90080-11127 New Genuine Part |
90080-11127 |
US $2.73 |
||
|
9015960047
|
9015960047
90159-60047 SCREWWWASHER |
90159-60047 |
from US $1.23 |
||
|
9017906166
|
9017906166
90179-06166 New Genuine Part |
90179-06166 |
US $2.18 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9024008094
|
9024008094
90240-08094 Pin, W/hole (For Column Shift Gear Selecting Rod) |
90240-08094 |
US $3.32 |
||
|
9024010148
|
9024010148
90240-10148 Pin, W/hole (For Differential Lock Lever) |
90240-10148 |
US $2.48 |
||
|
9024012147
|
9024012147
90240-12147 Pin, W/hole(For Intermediate Lever) |
90240-12147 |
US $3.06 |
||
|
9046106049
|
9046106049
90461-06049
New Genuine Part
|
90461-06049 |
— | ||
|
9046112965
|
9046112965
90461-12965 Clamp, No.1(For Parking Brake Cable) |
90461-12965 |
US $1.89 |
||
|
9046808001
|
9046808001
90468-08001 CLIP |
90468-08001 |
US $3.36 |
||
|
9412040600
|
9412040600
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $2.72 |
||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.44 |
||
|
9538102515
|
9538102515
95381-02515 PIN |
95381-02515 |
US $0.96 |
||
|
9538102520
|
9538102520
95381-02520 PINCOTTER |
95381-02520 |
US $2.08 |
||
|
9699010060
|
9699010060
96990-10060 CLIP |
96990-10060 |
from US $1.60 |
||
