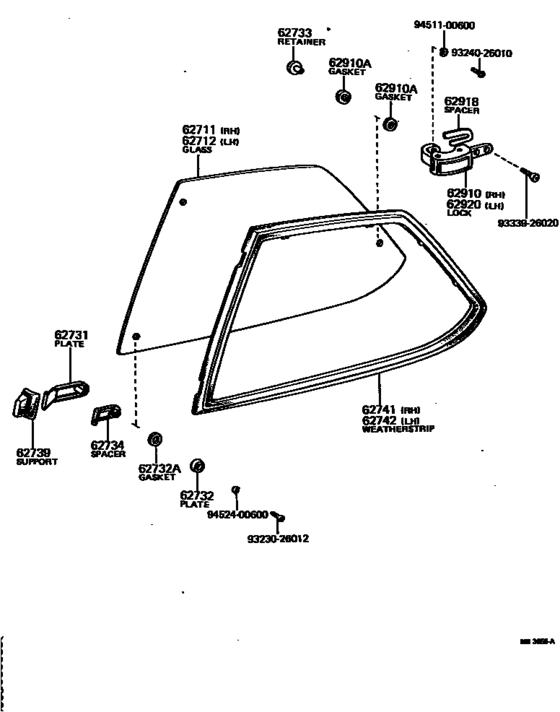

Quarter Window ([08.1973 - 08.1974] (7308-7408)RT104..2D) Diagram Toyota CORONA
- Year
- 1973 - 1974
- Sales region
- General
- Frame
- RT104
- grade
- STD
- body
- SED
- ENGINE
- 18R
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1973
- To
- 11.1974
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Vehicle Model
- Corona
- Driver's Position
- RHD
- Destination
- ARL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62711
|
62711
62711-20010
Glass, Quarter Window, Rh
[08.1973 - 11.1974] RT104..2D TP.T=4.0 |
62711-20010 |
— | ||
| replacement | |||||
|
62711
|
62711
62711-20020
Glass, Quarter Window, Rh
[08.1973 - 11.1974] RT104..2D TP.T=4.0 |
62711-20020 |
— | ||
|
62712
|
62712
62712-20010
Glass, Quarter Window, Lh
[08.1973 - 11.1974] RT104..2D TP.T=4.0 |
62712-20010 |
— | ||
| replacement | |||||
|
62712
|
62712
62712-20020
Glass, Quarter Window, Lh
[08.1973 - 11.1974] RT104..2D TP.T=4.0 |
62712-20020 |
— | ||
|
62731
|
62731
62731-20010
Plate, Quarter Or Side Window Hinge
[08.1973 - 08.1974] RT104..2D RH. |
62731-20010 |
— | ||
|
62731
|
62731
62731-20011
Plate, Quarter Or Side Window Hinge
[08.1974 - 11.1974] RT104..2D |
62731-20011 |
— | ||
|
62731
|
62731
62732-20010
Plate, Quarter Or Side Window Hinge
[08.1973 - 08.1974] RT104..2D LH. |
62732-20010 |
— | ||
|
62732
|
62732
62732-10030
Plate, Quarter Or Side Window Hinge Finish
[08.1973 - 08.1974] RT104..2D |
62732-10030 |
— | ||
|
62732
|
62732
62732-12010
Plate, Quarter Or Side Window Hinge Finish
[08.1974 - 11.1974] RT104..2D |
62732-12010 |
— | ||
|
62732A
|
62732A
90430-06199 Gasket(For Quarter Window Hinge Finish Plate)[08.1973 - 08.1974] RT104..2D |
90430-06199 |
US $2.48 |
||
|
62733
|
62733
62733-12010 Retainer, Quarter Or Side Window Hinge[08.1973 - 08.1974] RT104..2D |
62733-12010 |
US $2.88 |
||
|
62734
|
62734
62734-20010
Spacer, Quarter Window Hinge
[08.1973 - 08.1974] RT104..2D RH. |
62734-20010 |
— | ||
|
62734
|
62734
62735-20010
Spacer, Quarter Window Hinge
[08.1973 - 08.1974] RT104..2D LH. |
62735-20010 |
— | ||
|
62739
|
62739
62739-20010
Support, Quarter Window Hinge
[08.1973 - 08.1974] RT104..2D |
62739-20010 |
— | ||
|
62741
|
62741
62741-20010
Weatherstrip, Quarter Window, Rh
[08.1973 - 08.1974] RT104..2D |
62741-20010 |
— | ||
|
62741
|
62741
62741-20011
Weatherstrip, Quarter Window, Rh
[08.1974 - 11.1974] RT104..2D |
62741-20011 |
— | ||
|
62742
|
62742
62742-20010
Weatherstrip, Quarter Window, Lh
[08.1973 - 08.1974] RT104..2D |
62742-20010 |
— | ||
|
62742
|
62742
62742-20011
Weatherstrip, Quarter Window, Lh
[08.1974 - 11.1974] RT104..2D |
62742-20011 |
— | ||
|
62910
|
62910
62910-20010
Lock Assy, Quarter Or Side Window, Rh
[08.1973 - 11.1974] RT104..2D |
62910-20010 |
— | ||
|
62910A
|
62910A
62734-12010 Clip, Quarter Window Hinge Plate[08.1973 - 08.1974] RT104..2D |
62734-12010 |
from US $2.69 |
||
|
62918
|
62918
62918-14010
Spacer, Quarter Window Lock Support
[08.1973 - 11.1974] RT104..2D |
62918-14010 |
— | ||
|
62920
|
62920
62910-20010
Lock Assy, Quarter Or Side Window, Rh
[08.1973 - 11.1974] RT104..2D |
62910-20010 |
— | ||
|
9323026012
|
9323026012
93230-26012 New Genuine Part |
93230-26012 |
US $2.56 |
||
|
9324026010
|
9324026010
93240-26010 New Genuine Part |
93240-26010 |
US $2.18 |
||
|
9333926020
|
9333926020
93339-26020
New Genuine Part
|
93339-26020 |
— | ||
| replacement | |||||
|
9333926020
|
9333926020
93330-26020
New Genuine Part
|
93330-26020 |
— | ||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9452400600
|
9452400600
94524-00600 New Genuine Part |
94524-00600 |
US $2.72 |
||
