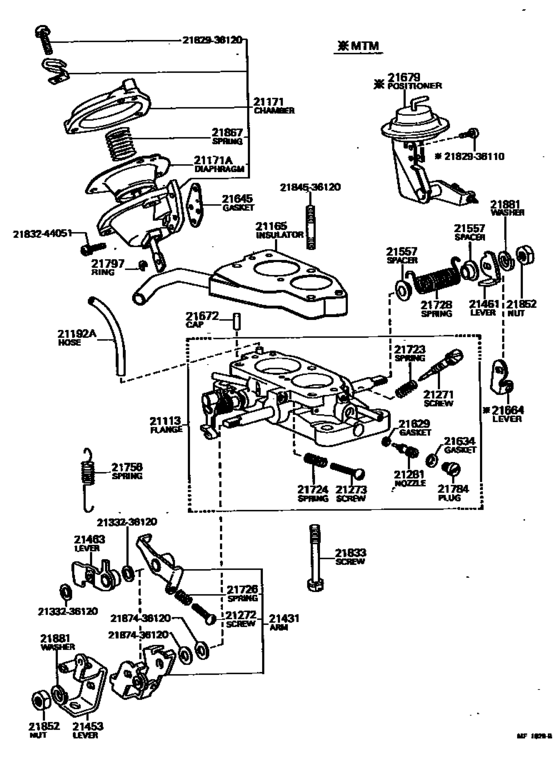

Carburetor ([04.1977 - 05.1979] (7704-7905)18RC) Diagram Toyota CORONA
- Year
- 1976 - 1978
- Sales region
- General
- Frame
- RT104
- grade
- DLX
- body
- SED
- ENGINE
- 18RC
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 06.1976
- To
- 08.1978
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corona
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21113
|
21113
21013-34410
Flange, Carburetor
[04.1977 - 05.1979] 18RC..RT104,118 |
21013-34410 |
— | ||
|
21113
|
21113
21103-34240
Flange, Carburetor
[09.1975 - 04.1976] 18RC..RT104,118 |
21103-34240 |
— | ||
|
21113
|
21113
21103-34241
Flange, Carburetor
[06.1976 - 04.1977] 18RC..RT104,118..MTM |
21103-34241 |
— | ||
|
21165
|
21165
21106-34400
Insulator
[04.1977 - 05.1979] 18RC..RT104,118 |
21106-34400 |
— | ||
|
21171
|
21171
21171-34400
Chamber, Diaphragm
[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21171-34400 |
— | ||
|
21171A
|
21171A
21173-36120
Diaphragm(For Didphragm Chamber)
[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21173-36120 |
— | ||
|
21192A
|
21192A
95411-10730 Hose, Vacuum, No.7 (For Heater Or Air Conditioner)[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN H,L=120 |
95411-10730 |
US $6.70 |
||
| replacement | |||||
|
21192A
|
21192A
90999-92002
Air Hose (300 mm)
[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN H,L=120 |
90999-92002 |
— | ||
|
21271
|
21271
21271-34080 Screw, Idle AdjustingIDLE ADJUSTING [09.1975 - 11.1976] 18RC..RT104,118 |
21271-34080 |
US $10.92 |
||
|
21271
|
21271
21271-34400 Screw, Idle Adjusting[04.1977 - 05.1979] 18RC..RT104,118 |
21271-34400 |
US $15.43 |
||
|
21272
|
21272
21814-33010 Screw, 1St Idle Adjusting[09.1975 - 11.1975] 12R,16R,18R#..RT10#,11# |
21814-33010 |
US $3.49 |
||
|
21272
|
21272
21833-36110 Screw, 1St Idle Adjusting[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21833-36110 |
US $2.04 |
||
| replacement | |||||
|
21272
|
21272
21841-36120 Screw, 1St Idle Adjusting[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21841-36120 |
US $2.33 |
||
|
21273
|
21273
21273-31100
Screw, Throttle Adjusting
[01.1977 - 08.1978] 18R#..RT104,114,118..ARL,EUR,GEN |
21273-31100 |
— | ||
|
21273
|
21273
21273-34401
Screw, Throttle Adjusting
[08.1978 - 05.1979] 18R..RT104,118..STD |
21273-34401 |
— | ||
|
21273
|
21273
21844-33010
Screw, 1St Idle Adjusting
[09.1975 - 01.1977] 12R#,16R,18R#..RT10#,11# |
21844-33010 |
— | ||
|
21281
|
21281
21281-36110
Nozzle, Idle
[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21281-36110 |
— | ||
|
21431
|
21431
21044-36110
Arm, 1St Throttle Shaft
[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21044-36110 |
— | ||
|
21431
|
21431
21431-34082
Arm, 1St Throttle Shaft
[09.1975 - 04.1977] 18RC..RT104,118 |
21431-34082 |
— | ||
|
21453
|
21453
21406-36110
Lever, 1St Throttle
[01.1978 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21406-36110 |
— | ||
|
21453
|
21453
21453-34231
Lever, 1St Throttle
[09.1975 - 01.1977] 16R,18R#..RT102,104,114,118 |
21453-34231 |
— | ||
|
21453
|
21453
21455-36110 Lever, 1St Throttle1ST THROTTLE [01.1977 - 01.1978] 18R#..RT104,114,118..ARL,EUR,GEN |
21455-36110 |
US $35.24 |
||
| replacement | |||||
|
21453
|
21453
21406-36110
Lever, 1St Throttle
[01.1977 - 01.1978] 18R#..RT104,114,118..ARL,EUR,GEN |
21406-36110 |
— | ||
|
21461
|
21461
21431-36120
Lever, 1St Idle
[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21431-36120 |
— | ||
|
21463
|
21463
21409-36120
Lever, 2Nd Throttle
[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21409-36120 |
— | ||
|
21557
|
21557
21552-36120
Spacer(For 1St Idle Cam)
[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21552-36120 |
— | ||
|
21557
|
21557
21557-44100
Spacer(For 1St Idle Cam)
[09.1975 - 01.1977] 16R,18R#..RT102,104,114,118 |
21557-44100 |
— | ||
|
21629
|
21629
21626-36110
Gasket, Idle Nozzle
[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21626-36110 |
— | ||
|
21634
|
21634
21634-36120
Gasket, Slow Passage Plug
[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21634-36120 |
— | ||
|
21645
|
21645
21638-36120 Gasket, Diaphragm, Cap[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21638-36120 |
US $3.06 |
||
|
21645
|
21645
21645-33080
Gasket, Diaphragm, Cap
[09.1975 - 01.1977] 12R#,16R,18R#..RT10#,11# |
21645-33080 |
— | ||
| replacement | |||||
|
21645
|
21645
21645-41010
Gasket, Diaphragm, Cap
[09.1975 - 01.1977] 12R#,16R,18R#..RT10#,11# |
21645-41010 |
— | ||
|
21664
|
21664
21409-36110
Lever(For Dash Pot Or Positioner)
[04.1977 - 05.1979] 18RC..RT104,118..MTM |
21409-36110 |
— | ||
|
21664
|
21664
21664-34080
Lever(For Dash Pot Or Positioner)
[09.1975 - 04.1977] 18RC..RT104,118 |
21664-34080 |
— | ||
|
21672
|
21672
21582-36110
Cap
[04.1977 - 05.1979] 18RC..RT104,118 |
21582-36110 |
— | ||
|
21672
|
21672
21672-31140
Cap
[09.1975 - 01.1977] 12R#,16R,18R#..RT10#,11# |
21672-31140 |
— | ||
|
21679
|
21679
21099-36110
Positioner
[04.1977 - 05.1979] 18RC..RT104,118..MTM |
21099-36110 |
— | ||
|
21679
|
21679
21679-34240
Positioner
[09.1975 - 04.1976] 18RC..RT104,118 |
21679-34240 |
— | ||
|
21679
|
21679
21679-34241
Positioner
[06.1976 - 04.1977] 18RC..RT104,118..MTM |
21679-34241 |
— | ||
|
21723
|
21723
21723-21030 Spring, Idle Adjusting[09.1975 - 01.1977] 12R#,16R,18R#..RT10#,11# |
21723-21030 |
US $4.19 |
||
|
21723
|
21723
21723-30030 Spring, Idle Adjusting[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21723-30030 |
US $3.64 |
||
|
21724
|
21724
21724-30010
Spring, Throttle Adjusting
[09.1975 - 01.1977] 16R,18R#..RT102,104,114,118 |
21724-30010 |
— | ||
|
21724
|
21724
21724-30030 Spring, Throttle Adjusting[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21724-30030 |
US $2.62 |
||
|
21726
|
21726
21723-30030 Spring, Idle Adjusting[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21723-30030 |
US $3.64 |
||
|
21726
|
21726
21726-40010 Spring, Throttle Adjusting[09.1975 - 11.1975] 12R,16R,18R#..RT10#,11# |
21726-40010 |
US $4.66 |
||
|
21728
|
21728
21728-36120
Spring, Throttle Valve Return
[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21728-36120 |
— | ||
|
21756
|
21756
21727-36120 Spring, Back(For Throttle Shaft)[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21727-36120 |
US $6.12 |
||
|
21756
|
21756
21756-34081 Spring, Back(For Throttle Shaft)BACK(FOR THROTTLE SHAFT) [09.1975 - 01.1977] 16R,18R#..RT102,104,114,118 WD=1.0,CW=20.25 |
21756-34081 |
US $10.34 |
||
|
21756
|
21756
21756-34240
Spring, Back(For Throttle Shaft)
[09.1975 - 01.1977] 16R,18R#..RT102,104,114,118 WD=1.1,CW=11.75 |
21756-34240 |
— | ||
|
21784
|
21784
21787-36110
Plug, Slow Passage
[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21787-36110 |
— | ||
|
21797
|
21797
21797-44050
Ring, Snap, No.1(For Carburetor Link)
[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21797-44050 |
— | ||
|
21833
|
21833
21844-34400 Screw, Set, No.1(For Carburetor Body Set)SET, NO.1(FOR CARBURETOR BODY SET) [01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21844-34400 |
US $8.44 |
||
|
21852
|
21852
21852-30010 Nut, Throttle Lever Set[09.1975 - 01.1977] 12R#,16R,18R#..RT10#,11# |
21852-30010 |
US $4.22 |
||
|
21852
|
21852
21852-36120
Nut, Throttle Lever Set
[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21852-36120 |
— | ||
|
21867
|
21867
21747-34400
Spring, Diaphragm
[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21747-34400 |
— | ||
|
21867
|
21867
21867-33080 Spring, DiaphragmDIAPHRAGM [09.1975 - 01.1977] 18R#..RT104,114,118 |
21867-33080 |
US $5.24 |
||
|
21881
|
21881
21881-31030 Washer, Lock(For Throttle Shaft)[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21881-31030 |
US $3.49 |
||
| replacement | |||||
|
21881
|
21881
21881-40030
Washer, Lock(For Throttle Shaft)
[01.1977 - 05.1979] 18R#..RT104,114,118..ARL,EUR,GEN |
21881-40030 |
— | ||
|
21881
|
21881
21881-60010 Washer, Lock(For Throttle Shaft)[09.1975 - 01.1977] 12R#,16R,18R#..RT10#,11# |
21881-60010 |
US $3.79 |
||
|
2133236120
|
2133236120
21332-36120
Valve, 2nd Throttle
|
21332-36120 |
— | ||
|
2182936110
|
2182936110
21829-36110
Screw, Adjusting
|
21829-36110 |
— | ||
|
2182936120
|
2182936120
21829-36120
Screw, High Speed Valve Set
|
21829-36120 |
— | ||
|
2183244051
|
2183244051
21832-44051 Screw(for Choke Lever Adapter Set) |
21832-44051 |
US $2.77 |
||
|
2184536120
|
2184536120
21845-36120 Screw(for Lever Set) |
21845-36120 |
US $3.49 |
||
|
2187436120
|
2187436120
21874-36120
Washer, 2nd Throttle Lever Set
|
21874-36120 |
— | ||
