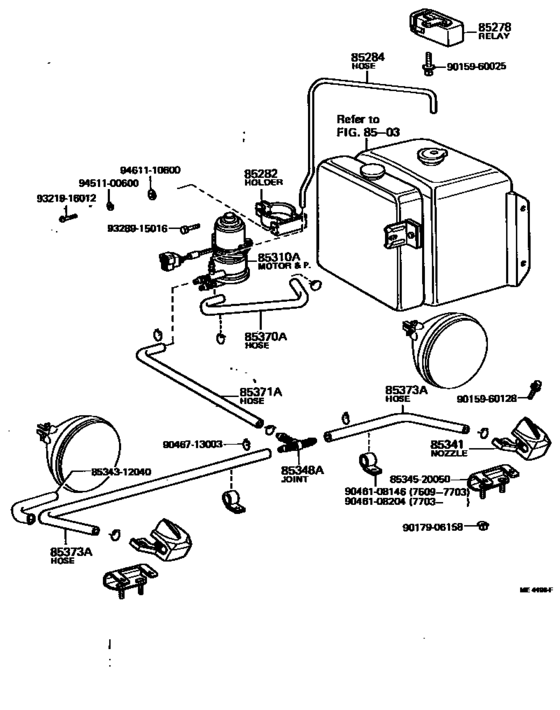

Headlamp Cleaner ([09.1975 - 08.1978] (7509-7808)SDN) Diagram Toyota CORONA
- Year
- 1976 - 1978
- Sales region
- General
- Frame
- RT104
- grade
- DLX
- body
- SED
- ENGINE
- 18RC
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 06.1976
- To
- 08.1978
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corona
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85278
|
85278
85276-12010
Relay Assy, Headlamp Cleaner Control
[09.1975 - 08.1978] RT104,118..SDN |
85276-12010 |
— | ||
|
85278
|
85278
85276-20010
Relay Assy, Headlamp Cleaner Control
[09.1974 - 09.1975] RT104,118..EUR |
85276-20010 |
— | ||
|
85282
|
85282
85361-20090
Holder Assy, Headlamp Cleaner Washer Jar
[09.1975 - 06.1977] RT104,118..SDN |
85361-20090 |
— | ||
|
85282
|
85282
85361-20100
Holder Assy, Headlamp Cleaner Washer Jar
[06.1977 - 08.1978] RT104,118..SDN |
85361-20100 |
— | ||
|
85284
|
85284
85284-20010
Hose Assy, Headlamp Cleaner Washer
[09.1974 - 09.1975] RT104,118..EUR PUMP SIDE |
85284-20010 |
— | ||
|
85284
|
85284
85284-20030
Hose Assy, Headlamp Cleaner Washer
[09.1974 - 09.1975] RT104,118..EUR NOZZLE SIDE |
85284-20030 |
— | ||
|
85284
|
85284
90446-07002 Hose, Windshield Washer (From Joint To Joint), No.1HEADLAMP CLEANER WASHER [09.1975 - 08.1978] RT104,118..SDN |
90446-07002 |
US $3.35 |
||
| replacement | |||||
|
85284
|
85284
90446-07004
Hose, Headlamp Cleaner, No.2
[09.1975 - 08.1978] RT104,118..SDN |
90446-07004 |
— | ||
|
85310A
|
85310A
85310-12020
Motor And Pump Assy, Windshield Washer
[09.1974 - 09.1975] RT104,118..EUR |
85310-12020 |
— | ||
|
85310A
|
85310A
85310-12040
Motor And Pump Assy, Headlamp Cleaner Washer
[09.1975 - 01.1977] RT104,118..SDN |
85310-12040 |
— | ||
|
85310A
|
85310A
85310-12050
Motor And Pump Assy, Headlamp Cleaner Washer
[01.1977 - 08.1978] RT104,118..SDN |
85310-12050 |
— | ||
|
85341
|
85341
85035-20010
Nozzle, Headlamp Cleaner Washer
[09.1975 - 01.1977] RT104,118..SDN |
85035-20010 |
— | ||
|
85341
|
85341
85035-20020 Nozzle, Headlamp Cleaner WasherHEADLAMP CLEANER WASHER [01.1977 - 08.1978] RT104,118..SDN |
85035-20020 |
US $257.71 |
||
|
85341
|
85341
85341-12030
Nozzle, Headlamp Cleaner Washer
[09.1974 - 09.1975] RT104,118..EUR RH |
85341-12030 |
— | ||
|
85341
|
85341
85341-12040
Nozzle, Headlamp Cleaner Washer
[09.1974 - 09.1975] RT104,118..EUR LH |
85341-12040 |
— | ||
|
85348A
|
85348A
85352-12010 Joint, Headlamp Cleaner Hose, No.1[09.1975 - 08.1978] RT104,118..SDN |
85352-12010 |
from US $6.16 |
||
|
85370A
|
85370A
85343-20010
Hose Assy, Headlamp Cleaner Washer, No.1
[09.1975 - 08.1978] RT104,118..SDN |
85343-20010 |
— | ||
|
85371A
|
85371A
85343-12030
Hose, Headlamp Cleaner(From Motor To Joint)
[09.1975 - 08.1978] RT104,118..SDN L=430 |
85343-12030 |
— | ||
|
85373A
|
85373A
90445-14022 Hose, Headlamp Cleaner, No.1[09.1975 - 08.1978] RT104,118..SDN *H,L=350 |
90445-14022 |
US $25.19 |
||
| replacement | |||||
|
85373A
|
85373A
85375-22061 Hose, Headlamp Cleaner, No.1[09.1975 - 08.1978] RT104,118..SDN *H,L=350 |
85375-22061 |
US $27.37 |
||
|
85373A
|
85373A
90445-14024 Hose, Headlamp Cleaner, No.1HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) [09.1975 - 08.1978] RT104,118..SDN *H,L=1150 |
90445-14024 |
US $24.17 |
||
| replacement | |||||
|
85373A
|
85373A
90445-14072 Hose, Headlamp Cleaner, No.1[09.1975 - 08.1978] RT104,118..SDN *H,L=1150 |
90445-14072 |
from US $19.75 |
||
|
8534312040
|
8534312040
85343-12040
Hose, Windshield Washer Suction
|
85343-12040 |
— | ||
|
8534520050
|
8534520050
85345-20050
Nozzle, Windshield Washer
|
85345-20050 |
— | ||
|
9015960025
|
9015960025
90159-60025 SCREW W-WASHER |
90159-60025 |
US $3.20 |
||
|
9015960128
|
9015960128
90159-60128 New Genuine Part |
90159-60128 |
US $1.92 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9046108146
|
9046108146
90461-08146
New Genuine Part
|
90461-08146 |
— | ||
|
9046108204
|
9046108204
90461-08204
New Genuine Part
|
90461-08204 |
— | ||
|
9046713003
|
9046713003
90467-13003 New Genuine Part |
90467-13003 |
US $2.33 |
||
|
9321916012
|
9321916012
93219-16012
New Genuine Part
|
93219-16012 |
— | ||
|
9328915016
|
9328915016
93289-15016 New Genuine Part |
93289-15016 |
US $1.60 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9461110600
|
9461110600
94611-10600 WASHERPLATE |
94611-10600 |
US $1.44 |
||
