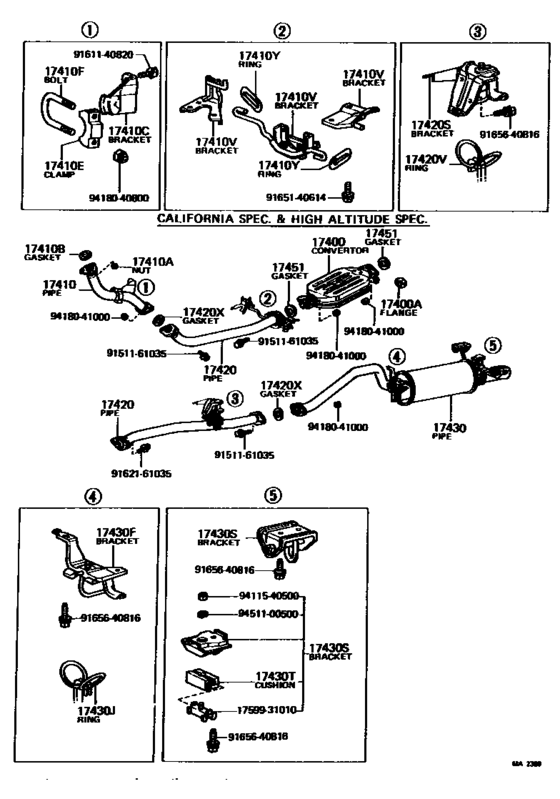

Exhaust Pipe ([08.1976 - 08.1978] (7608-7808)20R..RT105,115) Diagram Toyota CORONA
- Year
- 1974 - 1978
- Sales region
- U.S.A.
- Frame
- RT105
- grade
- DLX
- body
- SED
- ENGINE
- 20R
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1974
- To
- 08.1978
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17420X
|
17420X
90917-06011 Gasket, Exhaust Pipe, CenterEXHAUST PIPE, CENTER [08.1974 - 09.1975] 20R..RT105,11# FRONT |
90917-06011 |
US $21.40 |
||
|
17451
|
17451
90917-06004
Gasket(For Manifold Extension)
[08.1976 - 08.1978] 20R..RT105,11# REAR CAL.& H.A. |
90917-06004 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06039 Gasket, Exhaust Pipe[08.1976 - 08.1978] 20R..RT105,11# REAR CAL.& H.A. |
90917-06039 |
from US $2.36 |
||
|
17451
|
17451
90917-06011 Gasket, Exhaust Pipe, CenterEXHAUST PIPE, CENTER [08.1974 - 09.1975] 20R..RT105,11# CALIFORNIA SPEC. |
90917-06011 |
US $21.40 |
||
|
1759931010
|
1759931010
17599-31010
Holder, Exhaust Pipe Support Stopper
|
17599-31010 |
— | ||
|
9151161035
|
9151161035
91511-61035
Bolt(For Transaxle Case & Engine Setting)
|
91511-61035 |
— | ||
| replacement | |||||
|
9151161035
|
9151161035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $1.01 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9162161035
|
9162161035
91621-61035 BOLT |
91621-61035 |
from US $2.03 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165640816
|
9165640816
91656-40816
New Genuine Part
|
91656-40816 |
— | ||
| replacements | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9165640816
|
9165640816
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.54 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.60 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
