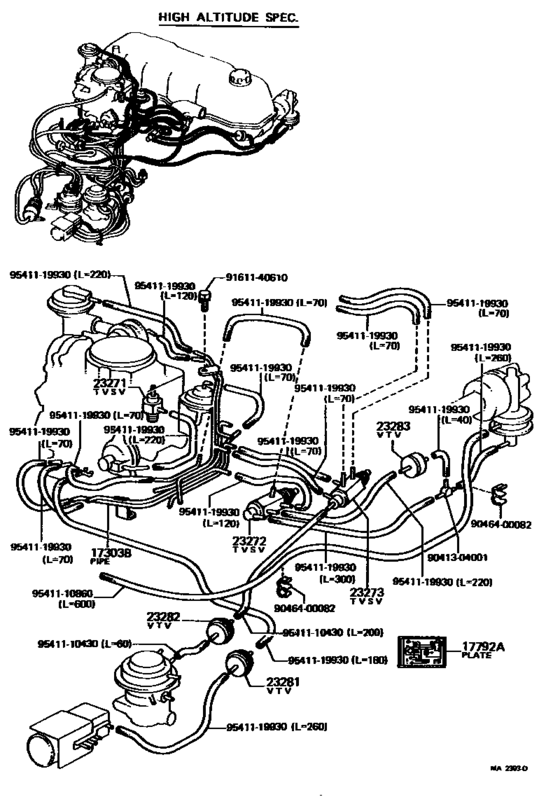

Vacuum Piping ([08.1976 - 08.1977] (7608-7708)) Diagram Toyota CORONA
- Year
- 1974 - 1978
- Sales region
- U.S.A.
- Frame
- RT105
- grade
- DLX
- body
- SED
- ENGINE
- 20R
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1974
- To
- 08.1978
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corona
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
9041304001
|
9041304001
90413-04001 Way, 3(For Transfer Breather Hose) |
90413-04001 |
US $4.96 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9541110430
|
9541110430
95411-10430 Hose (For Idle Up Device) |
95411-10430 |
US $6.84 |
||
| replacement | |||||
|
9541110430
|
9541110430
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110860
|
9541110860
95411-10860 Hose, Vacuum (For Idle Up Device), No.1NO.1 |
95411-10860 |
US $11.65 |
||
| replacement | |||||
|
9541110860
|
9541110860
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
