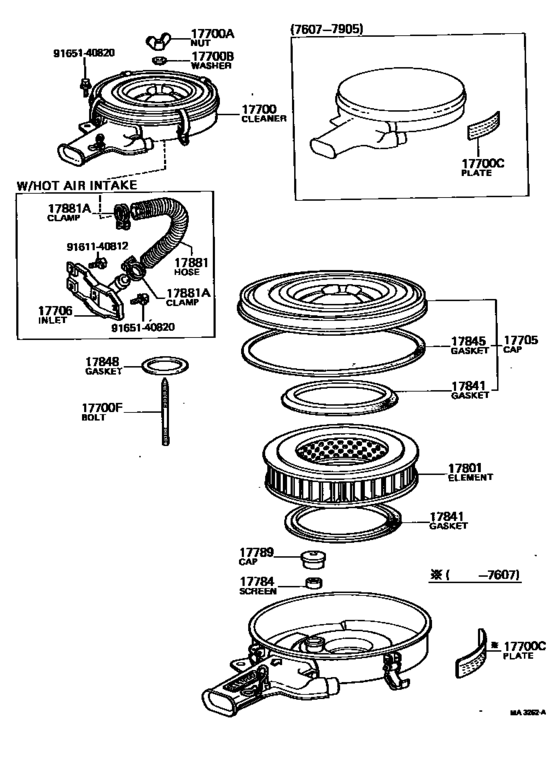

Air Cleaner ([08.1973 - 01.1977] (7308-7701)16R,18R# ; (7701-7704)18RC) Diagram Toyota CORONA
- Year
- 1973 - 1975
- Sales region
- General
- Frame
- RT112
- grade
- DLX
- body
- HT
- ENGINE
- 16R
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1973
- To
- 09.1975
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Vehicle Model
- Corona
- Driver's Position
- RHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-34192
Cleaner Assy, Air
[08.1973 - 04.1974] 16R..RT102,112,117..EUR,GEN ARCTIC |
17700-34192 |
— | ||
|
17700
|
17700
17700-34193 Cleaner Assy, AirAIR [04.1974 - 06.1975] 16R..RT102,112,117..EUR,GEN ARCTIC |
17700-34193 |
US $228.59 |
||
| replacement | |||||
|
17700
|
17700
17700-34194
Cleaner Assy, Air
[04.1974 - 06.1975] 16R..RT102,112,117..EUR,GEN ARCTIC |
17700-34194 |
— | ||
|
17700
|
17700
17700-34194
Cleaner Assy, Air
[06.1975 - 09.1975] 16R..RT102,112,117..EUR,GEN ARCTIC |
17700-34194 |
— | ||
|
17700
|
17700
17700-34202
Cleaner Assy, Air
[08.1973 - 04.1974] 16R,18R..RT102,104,112,117,118..ARL,EUR,GEN |
17700-34202 |
— | ||
|
17700
|
17700
17700-34203 Cleaner Assy, AirAIR [04.1974 - 09.1975] 16R,18R..RT102,104,112,117,118..ARL,EUR,GEN |
17700-34203 |
US $171.81 |
||
| replacement | |||||
|
17700
|
17700
17700-34204
Cleaner Assy, Air
[04.1974 - 09.1975] 16R,18R..RT102,104,112,117,118..ARL,EUR,GEN |
17700-34204 |
— | ||
|
17700
|
17700
17700-34380 Cleaner Assy, AirAIR [08.1975 - 07.1976] 16R,18R..RT102,104,112,114,117,118 W/HOT AIR INTAKE |
17700-34380 |
US $308.67 |
||
| replacements | |||||
|
17700
|
17700
90917-07078
Plate, Air Cleaner Caution (For Engine Model)
[08.1975 - 07.1976] 16R,18R..RT102,104,112,114,117,118 W/HOT AIR INTAKE |
90917-07078 |
— | ||
|
17700
|
17700
17700-34381
Cleaner Assy, Air
[08.1975 - 07.1976] 16R,18R..RT102,104,112,114,117,118 W/HOT AIR INTAKE |
17700-34381 |
— | ||
|
17700
|
17700
90917-07084
Plate, Air Cleaner Caution (For Engine Model)
[08.1975 - 07.1976] 16R,18R..RT102,104,112,114,117,118 W/HOT AIR INTAKE |
90917-07084 |
— | ||
|
17700
|
17700
17700-34381
Cleaner Assy, Air
[07.1976 - 01.1977] 16R,18R..RT102,104,114,118 W/HOT AIR INTAKE |
17700-34381 |
— | ||
|
17700A
|
17700A
90175-06003 Nut, Wing(For Air Cleaner)[09.1977 - 05.1979] 12R#,16R,18R#..RT10#,11# |
90175-06003 |
from US $1.27 |
||
|
17700A
|
17700A
94271-00600 Nut, Wing(For Air Cleaner)[08.1973 - 09.1975] 12R,16R,18R..RT10#,11# |
94271-00600 |
US $1.44 |
||
|
17700B
|
17700B
90210-06023
Washer, Seal(For Air Cleaner)
[08.1973 - 09.1975] 12R,16R,18R..RT10#,11# |
90210-06023 |
— | ||
|
17700C
|
17700C
90917-07052
Plate, Air Cleaner Caution (For Engine Model)
[08.1973 - 04.1974] 16R,18R..RT102,104,112,114,117,118 |
90917-07052 |
— | ||
| replacement | |||||
|
17700C
|
17700C
90917-07087
Plate, Air Cleaner Caution (For Engine Model)
[08.1973 - 04.1974] 16R,18R..RT102,104,112,114,117,118 |
90917-07087 |
— | ||
|
17700C
|
17700C
90917-07053
Plate, Air Cleaner Caution (For Engine Model)
[04.1974 - 09.1975] 12R,16R,18R..RT10#,11# |
90917-07053 |
— | ||
| replacement | |||||
|
17700C
|
17700C
90917-07087
Plate, Air Cleaner Caution (For Engine Model)
[04.1974 - 09.1975] 12R,16R,18R..RT10#,11# |
90917-07087 |
— | ||
|
17700F
|
17700F
90116-06143
Bolt, Stud(For Air Cleaner Setting)
[04.1974 - 09.1975] 16R,18R..RT102,104,112,114,117,118 L=62,S=12&25 |
90116-06143 |
— | ||
|
17700F
|
17700F
90116-06222 Bolt, Stud(For Air Cleaner Setting)[08.1973 - 04.1974] 16R,18R..RT102,104,112,114,117,118 L=80,S=12&28 |
90116-06222 |
US $3.32 |
||
|
17705
|
17705
17705-34070
Cap Sub-Assy, Air Cleaner
[08.1973 - 04.1974] 16R,18R..RT102,104,112,114,117,118 |
17705-34070 |
— | ||
|
17705
|
17705
17705-34071
Cap Sub-Assy, Air Cleaner
[04.1974 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
17705-34071 |
— | ||
|
17706
|
17706
17895-34010
Inlet Sub-Assy, Air Cleaner, No.2
[08.1973 - 09.1975] 16R..RT102,112,117..EUR,GEN |
17895-34010 |
— | ||
|
17784
|
17784
17784-31010
Screen, Air Cleaner
[08.1973 - 09.1975] 12R..RT100,110,116; 16R,18R..RT102,104,112,117,118..ARL,EUR,GEN |
17784-31010 |
— | ||
|
17789
|
17789
17789-31010
Cap, Air Cleaner Screen
[08.1973 - 09.1975] 12R..RT100,110,116; 16R,18R..RT102,104,112,117,118..ARL,EUR,GEN |
17789-31010 |
— | ||
|
17801
|
17801
17801-33030 Element Sub-Assy, Air Cleaner FilterAIR CLEANER FILTER [08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
17801-33030 |
US $23 |
||
| replacement | |||||
|
17801
|
17801
17801-34060 Element Sub-Assy, Air Cleaner Filter[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
17801-34060 |
US $24.02 |
||
|
17841
|
17841
17841-33011
Gasket, Filter Element
[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
17841-33011 |
— | ||
|
17845
|
17845
17845-33010
Gasket, Air Cleaner Cap
[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
17845-33010 |
— | ||
|
17848
|
17848
90430-72114
Gasket, Air Cleaner To Carburetor
[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
90430-72114 |
— | ||
|
17881
|
17881
17881-25012
Hose, Air Cleaner, No.1
[09.1973 - 09.1975] 16R..RT102,112,117..EUR,GEN W/HOT AIR INTAKE |
17881-25012 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-66050
Hose, Air Cleaner, No.5
[09.1973 - 09.1975] 16R..RT102,112,117..EUR,GEN W/HOT AIR INTAKE |
17881-66050 |
— | ||
|
17881
|
17881
17881-34030
Hose, Air Cleaner, No.1
[08.1973 - 09.1973] 16R..RT102,112,117..GEN W/HOT AIR INTAKE |
17881-34030 |
— | ||
| replacement | |||||
|
17881
|
17881
17883-75030 Hose, Air Cleaner, No.3[08.1973 - 09.1973] 16R..RT102,112,117..GEN W/HOT AIR INTAKE |
17883-75030 |
US $34.80 |
||
|
17881A
|
17881A
90460-47036 Clamp Or Clip, Hose(For Radiator Inlet)[08.1973 - 01.1977] 16R,18R#..RT102,104,112,114,117,118..ARL,EUR,GEN W/HOT AIR INTAKE |
90460-47036 |
US $3.52 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
