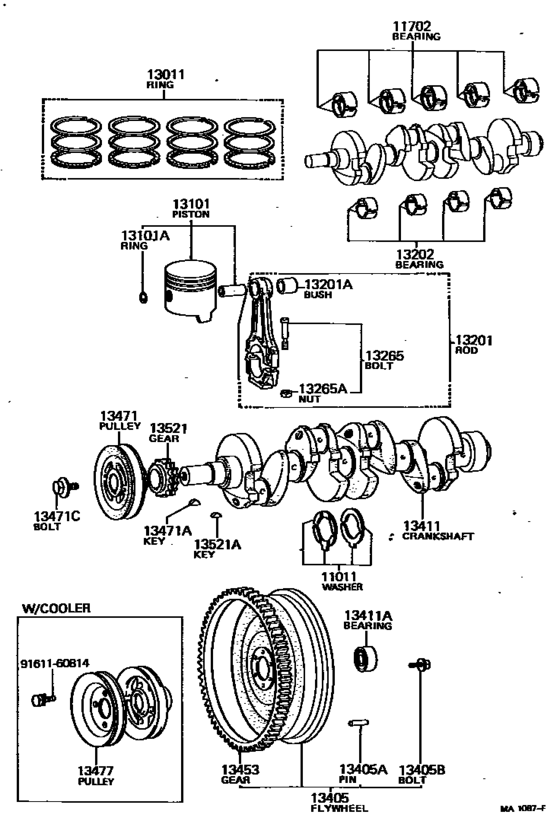

Crankshaft & Piston ([08.1973 - 05.1979] (7308-7905)16R,18R#) Diagram Toyota CORONA
- Year
- 1973 - 1978
- Sales region
- General
- Frame
- RT114
- grade
- DLX
- body
- HT
- ENGINE
- 18R
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1973
- To
- 08.1978
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Vehicle Model
- Corona
- Driver's Position
- RHD
- Destination
- SA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-38010 Washer Set, Crankshaft Thrust[01.1977 - 05.1979] 16R,18R#..RT102,104,114,118 STD,STD |
11011-38010 |
US $49.65 |
||
| replacement | |||||
|
11011
|
11011
11011-35011 Washer Set, Crankshaft Thrust[01.1977 - 05.1979] 16R,18R#..RT102,104,114,118 STD,STD |
11011-35011 |
US $45.95 |
||
|
11011
|
11011
11012-38010 Washer Set, Crankshaft Thrust[01.1977 - 05.1979] 16R,18R#..RT102,104,114,118 O/S 0.125,O/S 0.125 |
11012-38010 |
US $57.66 |
||
| replacement | |||||
|
11011
|
11011
11012-35021 Washer Set, Crankshaft Thrust[01.1977 - 05.1979] 16R,18R#..RT102,104,114,118 O/S 0.125,O/S 0.125 |
11012-35021 |
US $55.04 |
||
|
11011
|
11011
11013-38010
Washer Set, Crankshaft Thrust
[01.1977 - 05.1979] 16R,18R#..RT102,104,114,118 O/S 0.250,O/S 0.25 |
11013-38010 |
— | ||
| replacement | |||||
|
11011
|
11011
11013-35021 Washer Set, Crankshaft Thrust[01.1977 - 05.1979] 16R,18R#..RT102,104,114,118 O/S 0.250,O/S 0.25 |
11013-35021 |
US $55.04 |
||
|
11702
|
11702
11702-33011 Bearing Set, CrankshaftCRANKSHAFT [08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 STD |
11702-33011 |
US $294.11 |
||
|
11702
|
11702
11702-33012
Bearing Set, Crankshaft
[01.1977 - 05.1979] 16R,18R#..RT102,104,114,118 STD |
11702-33012 |
— | ||
|
11702
|
11702
11704-33011 Bearing Set, CrankshaftCRANKSHAFT [08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 U/S 0.25 |
11704-33011 |
US $349.44 |
||
|
11702
|
11702
11704-33012 Bearing Set, Crankshaft[01.1977 - 05.1979] 16R,18R#..RT102,104,114,118 U/S 0.25 |
11704-33012 |
US $286.83 |
||
|
11702
|
11702
11705-33011 Bearing Set, CrankshaftCRANKSHAFT [08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 U/S 0.50 |
11705-33011 |
US $346.53 |
||
|
11702
|
11702
11705-33012 Bearing Set, Crankshaft[01.1977 - 05.1979] 16R,18R#..RT102,104,114,118 U/S 0.50 |
11705-33012 |
US $286.83 |
||
|
11702
|
11702
11706-33011 Bearing Set, CrankshaftCRANKSHAFT [08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 U/S 0.75 |
11706-33011 |
US $331.97 |
||
|
11702
|
11702
11707-33011 Bearing Set, CrankshaftCRANKSHAFT [08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 U/S 1.00 |
11707-33011 |
US $331.97 |
||
|
13011
|
13011
13011-34022 Ring Set, PistonPISTON [08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 STD |
13011-34022 |
US $202.38 |
||
| replacement | |||||
|
13011
|
13011
13011-34030 Ring Set, Piston[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 STD |
13011-34030 |
US $202.38 |
||
|
13011
|
13011
13011-34023 Ring Set, PistonPISTON [01.1977 - 04.1977] 16R,18R#..RT102,104,114,118 STD |
13011-34023 |
US $195.10 |
||
| replacement | |||||
|
13011
|
13011
13011-34030 Ring Set, Piston[01.1977 - 04.1977] 16R,18R#..RT102,104,114,118 STD |
13011-34030 |
US $202.38 |
||
|
13011
|
13011
13011-38020 Ring Set, Piston[04.1977 - 05.1979] 16R,18R#..RT102,104,114,118 STD,STD |
13011-38020 |
US $199.47 |
||
| replacement | |||||
|
13011
|
13011
13011-34030 Ring Set, Piston[04.1977 - 05.1979] 16R,18R#..RT102,104,114,118 STD,STD |
13011-34030 |
US $202.38 |
||
|
13011
|
13011
13012-34022 Ring Set, PistonPISTON [08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 O/S 0.25 |
13012-34022 |
US $199.47 |
||
| replacement | |||||
|
13011
|
13011
13012-38010 Ring Set, Piston[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 O/S 0.25 |
13012-38010 |
US $246.06 |
||
|
13011
|
13011
13013-34022
Ring Set, Piston
[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 O/S 0.50 |
13013-34022 |
— | ||
| replacement | |||||
|
13011
|
13011
13013-34030 Ring Set, Piston[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 O/S 0.50 |
13013-34030 |
US $202.38 |
||
|
13011
|
13011
13013-34023 Ring Set, PistonPISTON [01.1977 - 04.1977] 16R,18R#..RT102,104,114,118 O/S 0.50 |
13013-34023 |
US $195.10 |
||
| replacement | |||||
|
13011
|
13011
13013-34030 Ring Set, Piston[01.1977 - 04.1977] 16R,18R#..RT102,104,114,118 O/S 0.50 |
13013-34030 |
US $202.38 |
||
|
13011
|
13011
13013-38010 Ring Set, Piston[04.1977 - 05.1979] 16R,18R#..RT102,104,114,118 O/S 0.50,O/S 0.50 |
13013-38010 |
US $199.47 |
||
| replacement | |||||
|
13011
|
13011
13013-34030 Ring Set, Piston[04.1977 - 05.1979] 16R,18R#..RT102,104,114,118 O/S 0.50,O/S 0.50 |
13013-34030 |
US $202.38 |
||
|
13011
|
13011
13014-34022
Ring Set, Piston
[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 O/S 0.75 |
13014-34022 |
— | ||
| replacement | |||||
|
13011
|
13011
13014-38010 Ring Set, Piston[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 O/S 0.75 |
13014-38010 |
US $246.06 |
||
|
13011
|
13011
13015-34022
Ring Set, Piston
[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 O/S 1.00 |
13015-34022 |
— | ||
| replacement | |||||
|
13011
|
13011
13015-34030 Ring Set, Piston[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 O/S 1.00 |
13015-34030 |
US $199.47 |
||
|
13011
|
13011
13015-34023 Ring Set, PistonPISTON [01.1977 - 04.1977] 16R,18R#..RT102,104,114,118 O/S 1.00 |
13015-34023 |
US $190.74 |
||
| replacement | |||||
|
13011
|
13011
13015-34030 Ring Set, Piston[01.1977 - 04.1977] 16R,18R#..RT102,104,114,118 O/S 1.00 |
13015-34030 |
US $199.47 |
||
|
13011
|
13011
13015-38010 Ring Set, Piston[04.1977 - 05.1979] 16R,18R#..RT102,104,114,118 O/S 1.00,O/S 1.00 |
13015-38010 |
US $196.56 |
||
| replacement | |||||
|
13011
|
13011
13015-34030 Ring Set, Piston[04.1977 - 05.1979] 16R,18R#..RT102,104,114,118 O/S 1.00,O/S 1.00 |
13015-34030 |
US $199.47 |
||
|
13101
|
13101
13101-34010
Piston Sub-Assy, W/pin
[08.1973 - 09.1975] 16R..RT102..SA STD; 18R..RT104,114,118 STD |
13101-34010 |
— | ||
|
13101
|
13101
13101-34030
Piston Sub-Assy, W/pin
[05.1976 - 03.1977] 16R,18R#..RT102,104,114,118 STD |
13101-34030 |
— | ||
|
13101
|
13101
13101-36030 Piston Sub-Assy, W/pinW/PIN [03.1977 - 05.1979] 16R,18R..RT102,104,114..SA STD |
13101-36030 |
US $103.38 |
||
|
13101
|
13101
13102-34010
Piston Sub-Assy, W/pin
[08.1973 - 09.1975] 16R..RT102..SA O/S 0.25; 18R..RT104,114,118 O/S 0.25 |
13102-34010 |
— | ||
| replacement | |||||
|
13101
|
13101
13102-34030 Piston Sub-Assy, W/pin[08.1973 - 09.1975] 16R..RT102..SA O/S 0.25; 18R..RT104,114,118 O/S 0.25 |
13102-34030 |
US $106.29 |
||
|
13101
|
13101
13103-34010
Piston Sub-Assy, W/pin
[08.1973 - 09.1975] 16R..RT102..SA O/S 0.50; 18R..RT104,114,118 O/S 0.50 |
13103-34010 |
— | ||
| replacement | |||||
|
13101
|
13101
13103-34030 Piston Sub-Assy, W/pin[08.1973 - 09.1975] 16R..RT102..SA O/S 0.50; 18R..RT104,114,118 O/S 0.50 |
13103-34030 |
US $106.29 |
||
|
13101
|
13101
13103-34030 Piston Sub-Assy, W/pin[05.1976 - 03.1977] 16R,18R#..RT102,104,114,118 O/S 0.50 |
13103-34030 |
US $106.29 |
||
|
13101
|
13101
13103-36030 Piston Sub-Assy, W/pinW/PIN [03.1977 - 05.1979] 16R,18R..RT102,104,114..SA O/S 0.50 |
13103-36030 |
US $106.29 |
||
|
13101
|
13101
13104-34010
Piston Sub-Assy, W/pin
[08.1973 - 09.1975] 16R..RT102..SA O/S 0.75; 18R..RT104,114,118 O/S 0.75 |
13104-34010 |
— | ||
| replacement | |||||
|
13101
|
13101
13104-34030 Piston Sub-Assy, W/pin[08.1973 - 09.1975] 16R..RT102..SA O/S 0.75; 18R..RT104,114,118 O/S 0.75 |
13104-34030 |
US $106.29 |
||
|
13101
|
13101
13105-34010
Piston Sub-Assy, W/pin
[08.1973 - 09.1975] 16R..RT102..SA O/S 1.00; 18R..RT104,114,118 0/S 1.00 |
13105-34010 |
— | ||
| replacement | |||||
|
13101
|
13101
13105-34030 Piston Sub-Assy, W/pin[08.1973 - 09.1975] 16R..RT102..SA O/S 1.00; 18R..RT104,114,118 0/S 1.00 |
13105-34030 |
US $106.29 |
||
|
13101
|
13101
13105-34030 Piston Sub-Assy, W/pin[05.1976 - 03.1977] 16R,18R#..RT102,104,114,118 O/S 1.00 |
13105-34030 |
US $106.29 |
||
|
13101
|
13101
13105-36030 Piston Sub-Assy, W/pinW/PIN [03.1977 - 05.1979] 16R,18R..RT102,104,114..SA O/S 1.00 |
13105-36030 |
US $106.29 |
||
|
13101A
|
13101A
90521-25105 Ring, Hole Snap(For Piston Pin)[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
90521-25105 |
US $2.33 |
||
|
13201
|
13201
13201-34012 Rod Sub-Assy, Connecting[08.1973 - 09.1975] 18R..RT104,114,118 |
13201-34012 |
US $136.86 |
||
|
13201A
|
13201A
90999-73048
Bush(For Connecting Rod Small End)
[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
90999-73048 |
— | ||
| replacement | |||||
|
13201A
|
13201A
90999-73072 Bush(For Connecting Rod Small End)[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
90999-73072 |
from US $9.28 |
||
|
13201A
|
13201A
90999-73072 Bush(For Connecting Rod Small End)[10.1975 - 05.1979] 16R,18R#..RT102,104,114,118 |
90999-73072 |
from US $9.28 |
||
|
13202
|
13202
13202-33011 Bearing Set, Connecting Rod[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 STD |
13202-33011 |
US $144.14 |
||
| replacement | |||||
|
13202
|
13202
13041-35030-B0 Bearing Set, Connecting RodCONNECTING ROD [08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 STD |
13041-35030-B0 |
US $33.20 |
||
|
13202
|
13202
13204-33011 Bearing Set, Connecting Rod[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 U/S 0.25 |
13204-33011 |
US $184.91 |
||
| replacement | |||||
|
13202
|
13202
13204-35040 Bearing Set, Connecting Rod[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 U/S 0.25 |
13204-35040 |
from US $89.45 |
||
|
13202
|
13202
13205-33011 Bearing Set, Connecting Rod[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 U/S 0.50 |
13205-33011 |
US $155.79 |
||
| replacement | |||||
|
13202
|
13202
13205-35040 Bearing Set, Connecting Rod[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 U/S 0.50 |
13205-35040 |
US $155.79 |
||
|
13202
|
13202
13206-33011 Bearing Set, Connecting RodCONNECTING ROD [08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 U/S 0.75 |
13206-33011 |
US $202.38 |
||
| replacement | |||||
|
13202
|
13202
13206-35040 Bearing Set, Connecting Rod[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 U/S 0.75 |
13206-35040 |
US $203.84 |
||
|
13202
|
13202
13207-33011 Bearing Set, Connecting RodCONNECTING ROD [08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 U/S 1.00 |
13207-33011 |
US $202.38 |
||
| replacement | |||||
|
13202
|
13202
13207-35040 Bearing Set, Connecting Rod[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 U/S 1.00 |
13207-35040 |
US $203.84 |
||
|
13265
|
13265
13265-39025 Bolt, Connecting Rod[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
13265-39025 |
from US $5.19 |
||
|
13265A
|
13265A
90170-10198 Nut, Hexagon(For Connecting Rod Bolt)[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
90170-10198 |
US $2.62 |
||
|
13405
|
13405
13405-39036 Flywheel Sub-Assy[08.1973 - 12.1973] 18R..RT104,114,118..4F N=115 |
13405-39036 |
US $327.60 |
||
| replacement | |||||
|
13405
|
13405
13405-39037
Flywheel Sub-Assy
[08.1973 - 12.1973] 18R..RT104,114,118..4F N=115 |
13405-39037 |
— | ||
|
13405
|
13405
13405-39037
Flywheel Sub-Assy
[12.1973 - 09.1975] 18R..RT104,114,118..4F N=115 |
13405-39037 |
— | ||
|
13405A
|
13405A
90250-08054 Pin, Straight[08.1973 - 09.1975] 12R,16R,18R..RT10#,11#..MTM L=23,OD=8,L=23,OD=8 |
90250-08054 |
from US $0.99 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118..MTM |
90105-10042 |
from US $1.31 |
||
|
13411
|
13411
13411-34903 Crankshaft[08.1973 - 09.1975] 18R..RT104,114,118 |
13411-34903 |
US $1,445.81 |
||
| replacement | |||||
|
13411
|
13411
13411-34906
Crankshaft
[08.1973 - 09.1975] 18R..RT104,114,118 |
13411-34906 |
— | ||
|
13411
|
13411
13411-34905 Crankshaft[07.1978 - 05.1979] 18R#..RT104,114,118 |
13411-34905 |
US $1,313.31 |
||
| replacement | |||||
|
13411
|
13411
13411-34906
Crankshaft
[07.1978 - 05.1979] 18R#..RT104,114,118 |
13411-34906 |
— | ||
|
13411A
|
13411A
97143-06201
Bearing(For Input Shaft Front)
[08.1973 - 09.1975] 12R,16R,18R..RT10#,11#..MTM 6201 VV C3 |
97143-06201 |
— | ||
| replacement | |||||
|
13411A
|
13411A
90363-12002
Bearing (For Input Shaft)
[08.1973 - 09.1975] 12R,16R,18R..RT10#,11#..MTM 6201 VV C3 |
90363-12002 |
— | ||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118..MTM N=115 |
13453-20010 |
US $67.79 |
||
|
13471
|
13471
13471-34012 Pulley, CrankshaftCRANKSHAFT [04.1974 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
13471-34012 |
US $49.94 |
||
| replacement | |||||
|
13471
|
13471
13471-34013
Pulley, Crankshaft
[04.1974 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
13471-34013 |
— | ||
|
13471
|
13471
13471-34013
Pulley, Crankshaft
[01.1977 - 05.1979] 16R,18R#..RT102,104,114,118 |
13471-34013 |
— | ||
|
13471A
|
13471A
90280-05010 Key(For Oil Pump Drive Spline)[08.1973 - 11.1974] 12R,16R,18R..RT10#,11# |
90280-05010 |
US $4.16 |
||
|
13471C
|
13471C
90105-14003 Bolt(For Crankshaft Pulley Set)[02.1977 - 05.1979] 16R,18R#..RT102,104,114,118 |
90105-14003 |
US $7.72 |
||
|
13471C
|
13471C
90105-14048
Bolt(For Crankshaft Pulley Set)
[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 |
90105-14048 |
— | ||
|
13477
|
13477
88451-20060
Pulley, Crankshaft, No.2
[01.1977 - 05.1979] 16R,18R#..RT102,104,114,118 W/COOLER |
88451-20060 |
— | ||
|
13521
|
13521
13521-33010 Gear Or Sprocket, Crankshaft Timing[08.1973 - 09.1975] 16R,18R..RT102,104,112,114,117,118 N=18 |
13521-33010 |
US $45.95 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[08.1973 - 11.1974] 12R,16R,18R..RT10#,11# |
90280-05010 |
US $4.16 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
