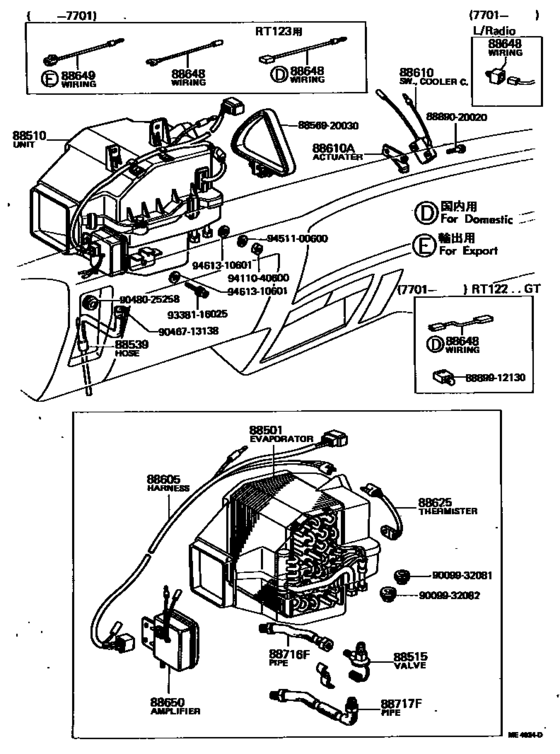

Heating & Air Conditioning - Cooler Unit ([08.1973 - 05.1979] (7308-7905)ARL,EUR,SA) Diagram Toyota CORONA
- Year
- 1973 - 1978
- Sales region
- General
- Frame
- RT114
- grade
- DLX
- body
- HT
- ENGINE
- 18R
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1973
- To
- 08.1978
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Vehicle Model
- Corona
- Driver's Position
- RHD
- Destination
- SA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88501
|
88501
88501-20030
Evaporator Sub-Assy, Cooler, No.1
[08.1973 - 02.1978] RT10#,112,114,116,117,118..RHD |
88501-20030 |
— | ||
|
88501
|
88501
88501-20050
Evaporator Sub-Assy, Cooler, No.1
[02.1978 - 05.1979] RT10#,11#..RHD |
88501-20050 |
— | ||
|
88510
|
88510
88510-20080
Unit Assy, Cooler
[08.1973 - 01.1977] RT10#,112,114,116,117,118..RHD |
88510-20080 |
— | ||
|
88510
|
88510
88510-20081
Unit Assy, Cooler
[01.1977 - 02.1978] RT10#,11#..RHD |
88510-20081 |
— | ||
| replacement | |||||
|
88510
|
88510
88510-20101
Unit Assy, Cooler
[01.1977 - 02.1978] RT10#,11#..RHD |
88510-20101 |
— | ||
|
88510
|
88510
88510-20101
Unit Assy, Cooler
[02.1978 - 05.1979] RT10#,11#..RHD |
88510-20101 |
— | ||
|
88510
|
88510
88510-20120
Unit Assy, Cooler
[01.1977 - 02.1978] RT100,104,11#..RHD FOR BOOST VENTILATOR |
88510-20120 |
— | ||
| replacement | |||||
|
88510
|
88510
88510-20121
Unit Assy, Cooler
[01.1977 - 02.1978] RT100,104,11#..RHD FOR BOOST VENTILATOR |
88510-20121 |
— | ||
|
88510
|
88510
88510-20121
Unit Assy, Cooler
[02.1978 - 08.1978] RT100,104,11#..RHD FOR BOOST VENTILATOR |
88510-20121 |
— | ||
|
88515
|
88515
88515-10010 Valve, Cooler ExpansionCOOLER EXPANSION [08.1973 - 12.1973] RT10#,11# |
88515-10010 |
US $94.64 |
||
| replacement | |||||
|
88515
|
88515
88515-12050 Valve, Cooler ExpansionCOOLER EXPANSION [08.1973 - 12.1973] RT10#,11# |
88515-12050 |
US $94.64 |
||
|
88515
|
88515
88515-14010
Valve, Cooler Expansion
[12.1973 - 01.1977] RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
88515-14010 |
— | ||
| replacement | |||||
|
88515
|
88515
88515-22040
Valve, Cooler Expansion
[12.1973 - 01.1977] RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
88515-22040 |
— | ||
|
88515
|
88515
88515-20031
Valve, Cooler Expansion
[02.1978 - 05.1979] RT10#,11#..RHD |
88515-20031 |
— | ||
|
88515
|
88515
88515-22040
Valve, Cooler Expansion
[01.1977 - 02.1978] RT10#,11#..ARL,EUR,GEN,SA |
88515-22040 |
— | ||
|
88539
|
88539
88539-20050
Hose, Cooler Unit Drain, No.1
[08.1973 - 05.1979] RT10#,112,114,116,117,118..RHD |
88539-20050 |
— | ||
|
88605
|
88605
88605-20070
Harness Sub-Assy, Cooler Wiring, No.1
[08.1973 - 01.1977] RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
88605-20070 |
— | ||
|
88610
|
88610
88610-20120
Switch Assy, Cooler Control
[08.1973 - 01.1977] RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
88610-20120 |
— | ||
|
88610A
|
88610A
88893-20080
Actuater (For Cooler Control Switch)
[05.1974 - 01.1977] RT10#,112,114,116,117,118..RHD |
88893-20080 |
— | ||
|
88610A
|
88610A
88893-22011
Actuater (For Cooler Control Switch)
[08.1973 - 05.1974] RT10#,11# |
88893-22011 |
— | ||
|
88625
|
88625
88625-20030
Thermistor, Cooler, No.1
[08.1973 - 01.1977] RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
88625-20030 |
— | ||
|
88625
|
88625
88625-20050
Thermistor, Cooler, No.1
[01.1977 - 05.1979] RT10#,11#..ARL,EUR,GEN,SA |
88625-20050 |
— | ||
|
88648
|
88648
82550-20020
Wiring, Cooler, No.1
[01.1977 - 05.1979] RT10#,11#..EUR,GEN,SA L/RADIO |
82550-20020 |
— | ||
|
88648
|
88648
88648-20070
Wiring, Cooler, No.1
[09.1975 - 01.1977] RT10#,114,116,118..ARL,EUR,GEN,SA |
88648-20070 |
— | ||
|
88649
|
88649
88649-25010
Wire Sub-Assy, Cooler
[09.1975 - 01.1977] RT100,116..LHD; RT10#,114,116,118..RHD |
88649-25010 |
— | ||
|
88650
|
88650
88650-20050
Amplifier Assy, Cooler Stabilizer
[08.1973 - 05.1979] RT10#,112,114,116,117,118..RHD |
88650-20050 |
— | ||
|
88650
|
88650
88650-20070
Amplifier Assy, Cooler Stabilizer
[09.1975 - 08.1978] RT10#,114,116,118..RHD FOR BOOST VENTILATOR |
88650-20070 |
— | ||
|
88716F
|
88716F
88716-20200
Pipe, Cooler Refrigerant Liquid, F
[08.1973 - 01.1977] RT10#,112,114,116,117,118..RHD |
88716-20200 |
— | ||
|
88716F
|
88716F
88716-20201
Pipe, Cooler Refrigerant Liquid, F
[01.1977 - 02.1978] RT10#,11#..RHD |
88716-20201 |
— | ||
|
88716F
|
88716F
88716-20310
Pipe, Cooler Refrigerant Liquid, F
[02.1978 - 05.1979] RT10#,11#..RHD |
88716-20310 |
— | ||
|
88717F
|
88717F
88717-20110
Pipe, Cooler Refrigerant Suction, F
[08.1973 - 01.1977] RT10#,112,114,116,117,118..RHD |
88717-20110 |
— | ||
|
88717F
|
88717F
88717-20111
Pipe, Cooler Refrigerant Suction, F
[01.1977 - 02.1978] RT10#,11#..RHD |
88717-20111 |
— | ||
|
88717F
|
88717F
88717-20200
Pipe, Cooler Refrigerant Suction, F
[02.1978 - 05.1979] RT10#,11#..RHD |
88717-20200 |
— | ||
|
8856920030
|
8856920030
88569-20030
Clamp (for Cooler Relay)
|
88569-20030 |
— | ||
|
8889020020
|
8889020020
88890-20020
Pump Assy, Brine W/bracket
|
88890-20020 |
— | ||
|
8889912130
|
8889912130
88899-12130
Cover, Evaporator
|
88899-12130 |
— | ||
|
9009932081
|
9009932081
90099-32081
New Genuine Part
|
90099-32081 |
— | ||
|
9009932082
|
9009932082
90099-32082
New Genuine Part
|
90099-32082 |
— | ||
|
9046713138
|
9046713138
90467-13138
Clip(For Fuel Hose)
|
90467-13138 |
— | ||
| replacement | |||||
|
9046713138
|
9046713138
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.92 |
||
|
9048025258
|
9048025258
90480-25258
Grommet, Rear Heater Water Hose
|
90480-25258 |
— | ||
|
9338116025
|
9338116025
93381-16025 New Genuine Part |
93381-16025 |
US $1.75 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
