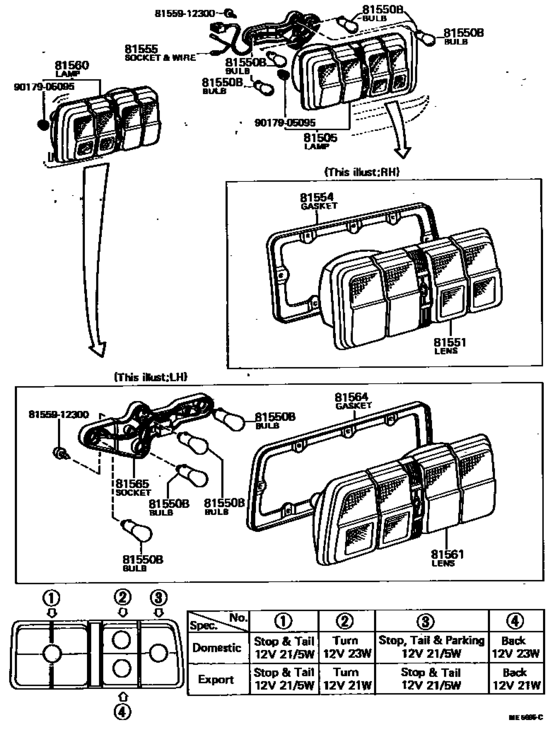

Rear Combination Lamp ([01.1977 - 08.1978] (7701-7808)RT114) Diagram Toyota CORONA
- Year
- 1973 - 1978
- Sales region
- General
- Frame
- RT114
- grade
- DLX
- body
- HT
- ENGINE
- 18R
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1973
- To
- 08.1978
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Vehicle Model
- Corona
- Driver's Position
- RHD
- Destination
- SA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81505
|
81505
04815-20060 Lamp Sub-Assy, Rear Combination, RhREAR COMBINATION, RH [08.1973 - 01.1977] RT110,112,114 AMBER-RED-CLEAR,KOITO |
04815-20060 |
US $339.25 |
||
| replacement | |||||
|
81505
|
81505
04815-20050 Lamp Sub-Assy, Rear Combination, Rh[08.1973 - 01.1977] RT110,112,114 AMBER-RED-CLEAR,KOITO |
04815-20050 |
US $264.99 |
||
|
81505
|
81505
81505-29125
Lamp Sub-Assy, Rear Combination, Rh
[01.1977 - 08.1978] RT114 AMBER-RED-CLEAR |
81505-29125 |
— | ||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[08.1973 - 05.1979] RT10#,11# 12V 21W,12V 21W |
99132-11210 |
from US $2.72 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[08.1973 - 05.1979] RT10#,11# 12V 21/5W,12V 21/5W |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-20260
Lens, Rear Combination Lamp, Rh
[08.1973 - 01.1977] RT110,112,114 RED |
81551-20260 |
— | ||
|
81551
|
81551
81553-20450 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [01.1977 - 08.1978] RT114 AMBER-RED-CLEAR |
81553-20450 |
US $208.21 |
||
|
81551
|
81551
81558-20260
Lens, Rear Combination Lamp, Rh
[08.1973 - 01.1977] RT110,112,114 CLEAR |
81558-20260 |
— | ||
|
81551
|
81551
81559-20260 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1973 - 01.1977] RT110,112,114 AMBER-RED |
81559-20260 |
US $58.68 |
||
|
81554
|
81554
81552-20450 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [01.1977 - 02.1977] RT114 |
81552-20450 |
US $25.77 |
||
| replacement | |||||
|
81554
|
81554
81552-20451
Gasket, Rear Combination Lamp Body, Rh
[01.1977 - 02.1977] RT114 |
81552-20451 |
— | ||
|
81554
|
81554
81552-20451
Gasket, Rear Combination Lamp Body, Rh
[02.1977 - 08.1978] RT114 |
81552-20451 |
— | ||
|
81555
|
81555
81555-20270
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1973 - 01.1977] RT110,112,114 |
81555-20270 |
— | ||
|
81555
|
81555
81555-20460
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.1977 - 08.1978] RT114 |
81555-20460 |
— | ||
|
81560
|
81560
81560-29925
Lamp Assy, Rear Combination, Lh
[01.1977 - 08.1978] RT114 AMBER-RED-CLEAR |
81560-29925 |
— | ||
|
81561
|
81561
81561-20060 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1973 - 01.1977] RT110,112,114 RED |
81561-20060 |
US $27.96 |
||
|
81561
|
81561
81563-20390 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [01.1977 - 08.1978] RT114 AMBER-RED-CLEAR |
81563-20390 |
US $208.21 |
||
|
81561
|
81561
81568-20060 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1973 - 01.1977] RT110,112,114 CLEAR |
81568-20060 |
US $11.36 |
||
|
81561
|
81561
81569-20060 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1973 - 01.1977] RT110,112,114 AMBER-RED |
81569-20060 |
US $50.81 |
||
|
81564
|
81564
81562-20390 Gasket, Rear Combination Lamp Body, LhREAR COMBINATION LAMP BODY, LH [01.1977 - 02.1977] RT114 |
81562-20390 |
US $27.66 |
||
| replacement | |||||
|
81564
|
81564
81562-20391
Gasket, Rear Combination Lamp Body, Lh
[01.1977 - 02.1977] RT114 |
81562-20391 |
— | ||
|
81564
|
81564
81562-20391
Gasket, Rear Combination Lamp Body, Lh
[02.1977 - 05.1979] RT114 |
81562-20391 |
— | ||
|
81565
|
81565
81565-20400
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[01.1977 - 08.1978] RT114 |
81565-20400 |
— | ||
|
8155912300
|
8155912300
81559-12300
Bracket,foglamp,rh No.2
|
81559-12300 |
— | ||
| replacement | |||||
|
8155912300
|
8155912300
81279-91D01
Bracket,foglamp,rh No.2
|
81279-91D01 |
— | ||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.08 |
||
