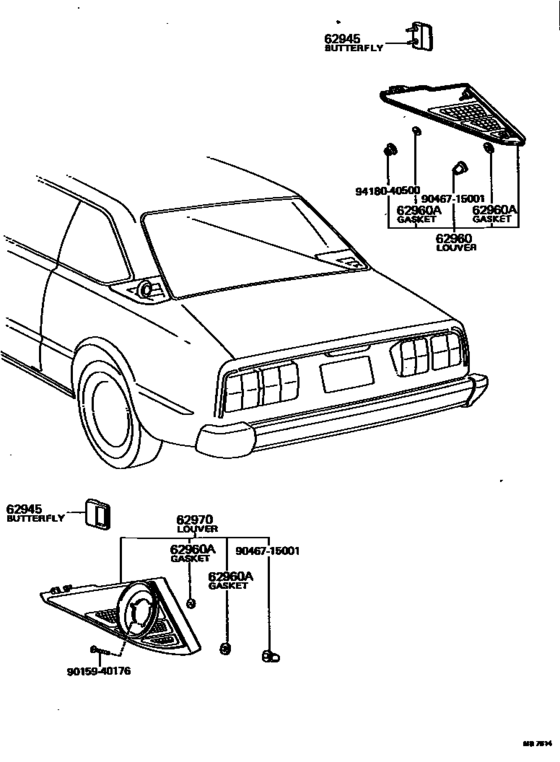

Roof Side Ventilator ([01.1977 - 08.1978] (7701-7808)RT114) Diagram Toyota CORONA
- Year
- 1973 - 1978
- Sales region
- General
- Frame
- RT114
- grade
- DLX
- body
- HT
- ENGINE
- 18R
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1973
- To
- 08.1978
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Vehicle Model
- Corona
- Driver's Position
- RHD
- Destination
- SA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62945
|
62945
62935-20050
Butterfly, Roof Side Vent
[08.1973 - 08.1978] RT110,112,114 RH. |
62935-20050 |
— | ||
|
62945
|
62945
62936-20010
Butterfly, Roof Side Vent
[08.1973 - 08.1978] RT110,112,114 LH. |
62936-20010 |
— | ||
|
62960
|
62960
62905-20010-01
Louver Assy, Roof Side Vent, Rh
[08.1973 - 01.1977] RT110,112,114 D.GRAY M.,BLACK,TRIM1# |
62905-20010-01 |
— | ||
|
62960
|
62960
62905-20010-03
Louver Assy, Roof Side Vent, Rh
[08.1973 - 01.1977] RT110,112,114 L.GRAY M.,GRAY,TRIM1# |
62905-20010-03 |
— | ||
|
62960
|
62960
62905-20010-08
Louver Assy, Roof Side Vent, Rh
[08.1973 - 01.1977] RT110,112,114 SILVER M.,IVORY |
62905-20010-08 |
— | ||
|
62960
|
62960
62905-95590
Louver Assy, Roof Side Vent, Rh
[01.1977 - 08.1978] RT114 |
62905-95590 |
— | ||
|
62960A
|
62960A
90430-04240 Gasket(For Roof Side Vent Louver)[08.1973 - 08.1978] RT110,112,114 T=3 |
90430-04240 |
US $3.93 |
||
|
62960A
|
62960A
90430-09241
Gasket(For Roof Side Vent Louver)
[08.1973 - 01.1977] RT110,112,114 T=2.5 |
90430-09241 |
— | ||
|
62960A
|
62960A
90430-11003
Gasket(For Roof Side Vent Louver)
[04.1977 - 08.1978] RT114 OD=20 |
90430-11003 |
— | ||
|
62960A
|
62960A
90430-13001 Gasket(For Roof Side Vent Louver)[01.1977 - 04.1977] RT114 OD=18 |
90430-13001 |
US $2.18 |
||
| replacement | |||||
|
62960A
|
62960A
90430-11003
Gasket(For Roof Side Vent Louver)
[01.1977 - 04.1977] RT114 OD=18 |
90430-11003 |
— | ||
|
62970
|
62970
62906-20010-01
Louver Assy, Roof Side Vent, Lh
[08.1973 - 01.1977] RT110,112,114 D.GRAY M.,BLACK,TRIM1# |
62906-20010-01 |
— | ||
|
62970
|
62970
62906-20010-03
Louver Assy, Roof Side Vent, Lh
[08.1973 - 01.1977] RT110,112,114 L.GRAY M.,GRAY,TRIM1# |
62906-20010-03 |
— | ||
|
62970
|
62970
62906-20010-08
Louver Assy, Roof Side Vent, Lh
[08.1973 - 01.1977] RT110,112,114 SILVER M.,IVORY |
62906-20010-08 |
— | ||
|
62970
|
62970
62906-95590
Louver Assy, Roof Side Vent, Lh
[01.1977 - 08.1978] RT114 |
62906-95590 |
— | ||
|
9015940176
|
9015940176
90159-40176 New Genuine Part |
90159-40176 |
US $1.46 |
||
|
9046715001
|
9046715001
90467-15001
New Genuine Part
|
90467-15001 |
— | ||
|
9418040500
|
9418040500
94180-40500 Nut, Tilt Roof Housing |
94180-40500 |
US $1.28 |
||
