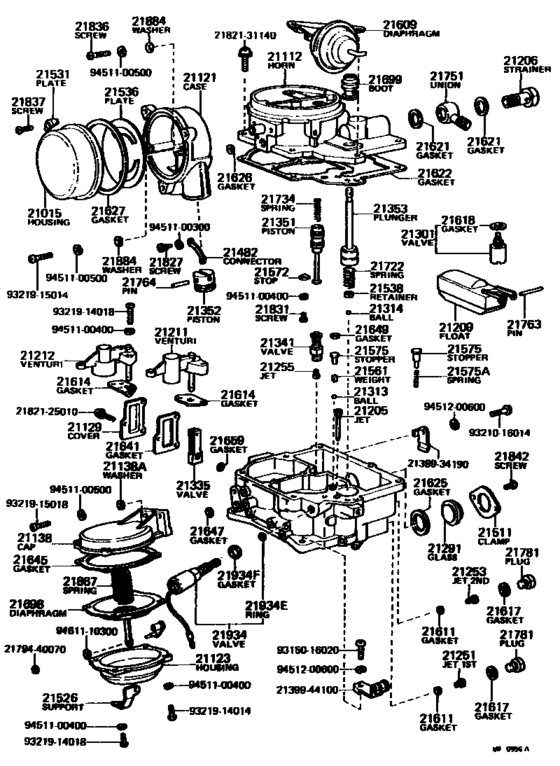

Carburetor ([08.1973 - 08.1974] (7308-7408)) Diagram Toyota CORONA
- Year
- 1973 - 1974
- Sales region
- U.S.A.
- Frame
- RT114
- grade
- DLX
- body
- HT
- ENGINE
- 18RC
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1973
- To
- 08.1974
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21209
|
21209
21209-33011
Float Sub-Assy
[08.1973 - 08.1977] 20R,18RC..RT10#,11# |
21209-33011 |
— | ||
|
2139934190
|
2139934190
21399-34190 Support(for Dash Pot) |
21399-34190 |
US $5.53 |
||
|
2139944100
|
2139944100
21399-44100
Support(for Dash Pot)
|
21399-44100 |
— | ||
|
2179440070
|
2179440070
21794-40070 Ring, Retainer, No.1(For Throttle Shaft) |
21794-40070 |
US $2.77 |
||
|
2182125010
|
2182125010
21821-25010 Screw, Coil Housing Set |
21821-25010 |
US $3.84 |
||
|
2182131140
|
2182131140
21821-31140 Screw(For 2Nd Regulator Cover Set) |
21821-31140 |
US $2.34 |
||
|
9315016020
|
9315016020
93150-16020 New Genuine Part |
93150-16020 |
US $1.89 |
||
|
9321016014
|
9321016014
93210-16014 SCREW |
93210-16014 |
US $1.92 |
||
|
9321914014
|
9321914014
93219-14014
New Genuine Part
|
93219-14014 |
— | ||
|
9321914018
|
9321914018
93219-14018 New Genuine Part |
93219-14018 |
US $3.35 |
||
|
9321915014
|
9321915014
93219-15014 Screw, Cover Set, No.1 |
93219-15014 |
US $1.92 |
||
|
9321915018
|
9321915018
93219-15018 New Genuine Part |
93219-15018 |
US $2.18 |
||
|
9451100300
|
9451100300
94511-00300
New Genuine Part
|
94511-00300 |
— | ||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.08 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— |
