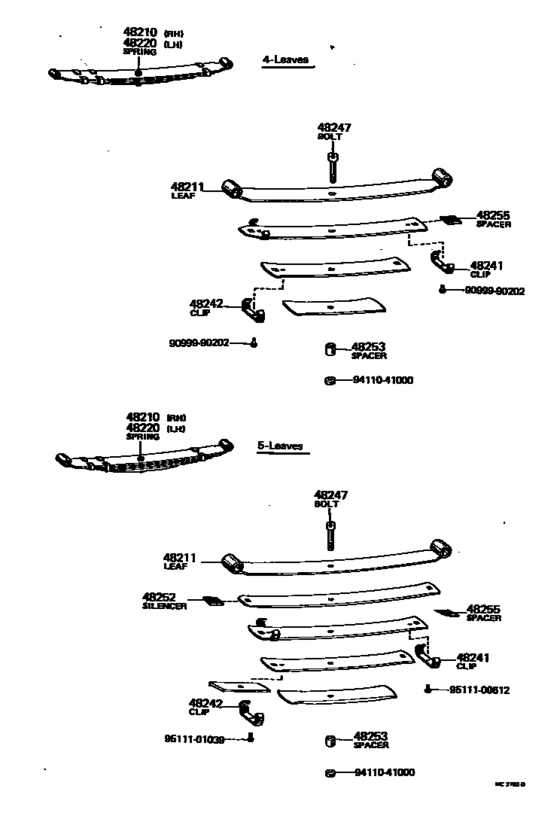

Rear Spring & Shock Absorber ([08.1973 - 08.1978] (7308-7808)RT116,117,118) Diagram Toyota CORONA
- Year
- 1973 - 1978
- Sales region
- General
- Frame
- RT116
- grade
- STD
- body
- WG
- ENGINE
- 12R
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1973
- To
- 08.1978
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Corona
- Driver's Position
- RHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-21110 Spring Assy, Rear RhREAR RH [08.1973 - 03.1974] RT116,117,118 4-LEAVES |
48210-21110 |
US $407.68 |
||
| replacement | |||||
|
48210
|
48210
48210-21112
Spring Assy, Rear Rh
[08.1973 - 03.1974] RT116,117,118 4-LEAVES |
48210-21112 |
— | ||
|
48210
|
48210
48210-21111 Spring Assy, Rear RhREAR RH [03.1974 - 09.1975] RT116,117,118 4-LEAVES |
48210-21111 |
US $407.68 |
||
| replacement | |||||
|
48210
|
48210
48210-21112
Spring Assy, Rear Rh
[03.1974 - 09.1975] RT116,117,118 4-LEAVES |
48210-21112 |
— | ||
|
48210
|
48210
48210-21112
Spring Assy, Rear Rh
[09.1975 - 05.1979] RT116,118 4-LEAVES |
48210-21112 |
— | ||
|
48211
|
48211
48211-21110
Leaf, Rear Spring, No.1
[08.1973 - 03.1974] RT116,117,118 |
48211-21110 |
— | ||
|
48211
|
48211
48211-21111
Leaf, Rear Spring, No.1
[03.1974 - 09.1975] RT116,117,118 |
48211-21111 |
— | ||
|
48211
|
48211
48211-21112
Leaf, Rear Spring, No.1
[09.1975 - 05.1979] RT116,118 |
48211-21112 |
— | ||
|
48220
|
48220
48210-21110 Spring Assy, Rear RhREAR RH [08.1973 - 03.1974] RT116,117,118 4-LEAVES |
48210-21110 |
US $407.68 |
||
| replacement | |||||
|
48220
|
48220
48210-21112
Spring Assy, Rear Rh
[08.1973 - 03.1974] RT116,117,118 4-LEAVES |
48210-21112 |
— | ||
|
48220
|
48220
48210-21111 Spring Assy, Rear RhREAR RH [03.1974 - 09.1975] RT116,117,118 4-LEAVES |
48210-21111 |
US $407.68 |
||
| replacement | |||||
|
48220
|
48220
48210-21112
Spring Assy, Rear Rh
[03.1974 - 09.1975] RT116,117,118 4-LEAVES |
48210-21112 |
— | ||
|
48220
|
48220
48210-21112
Spring Assy, Rear Rh
[09.1975 - 05.1979] RT116,118 4-LEAVES |
48210-21112 |
— | ||
|
48241
|
48241
48243-21060
Clip, Rear Spring, No.1
[08.1973 - 05.1979] RT116,117,118 |
48243-21060 |
— | ||
|
48242
|
48242
48241-21060
Clip, Rear Spring, No.2
[08.1973 - 05.1979] RT116,117,118 |
48241-21060 |
— | ||
|
48247
|
48247
48247-21110
Bolt, Rear Spring, Center
[08.1973 - 05.1979] RT116,117,118 |
48247-21110 |
— | ||
|
48253
|
48253
48254-21100 Spacer, Rear Spring, No.1[08.1973 - 05.1979] RT116,117,118 |
48254-21100 |
US $2.91 |
||
|
48255
|
48255
48253-23030 Spacer, Rear Spring LeafREAR SPRING LEAF [08.1973 - 05.1979] RT116,117,118 |
48253-23030 |
US $3.06 |
||
| replacement | |||||
|
48255
|
48255
48252-21150 Silencer, Rear Spring[08.1973 - 05.1979] RT116,117,118 |
48252-21150 |
US $7.72 |
||
|
9099990202
|
9099990202
90999-90202 New Genuine Part |
90999-90202 |
US $1.16 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9511100612
|
9511100612
95111-00612
New Genuine Part
|
95111-00612 |
— | ||
|
9511101039
|
9511101039
95111-01039
New Genuine Part
|
95111-01039 |
— | ||
