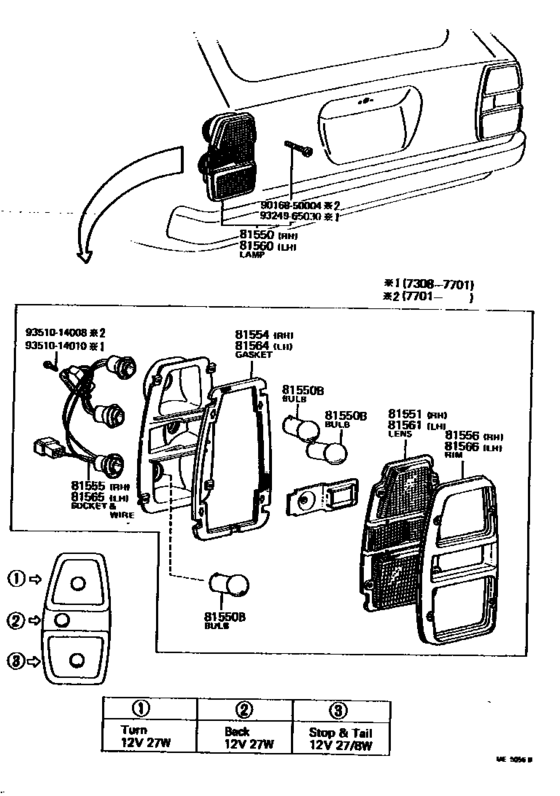

Rear Combination Lamp ([08.1973 - 08.1978] (7308-7808)RT118,119) Diagram Toyota CORONA
- Year
- 1976 - 1978
- Sales region
- U.S.A.
- Frame
- RT119
- grade
- DLX
- body
- WG
- ENGINE
- 20R
- TRANSMISSION
- ATM
- Model
- CORONA
- From
- 05.1976
- To
- 08.1978
- Gear Shift Type
- 3HC
- No.of Doors
- 4D
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-29735 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [08.1973 - 01.1977] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD AMBER-RED-CLEAR |
81550-29735 |
US $257.71 |
||
|
81550
|
81550
81550-29736 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [01.1977 - 08.1978] RT119..3HC AMBER-RED-CLEAR |
81550-29736 |
US $227.14 |
||
|
81550B
|
81550B
99132-11270 Bulb, Fog Lamp[08.1973 - 08.1978] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD 12V 27W,12V 27W |
99132-11270 |
US $3.36 |
||
|
81550B
|
81550B
99132-21270 Bulb (For Front Turn Signal Lamp)[08.1973 - 08.1978] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD 12V 27/8W,12V 27/8W |
99132-21270 |
US $4.32 |
||
|
81551
|
81551
81551-20220 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1973 - 01.1977] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD AMBER-RED-CLEAR,IKI |
81551-20220 |
US $128.13 |
||
|
81551
|
81551
81551-20250 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1973 - 01.1977] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD AMBER-RED-CLEAR,KOITO |
81551-20250 |
US $106.29 |
||
|
81551
|
81551
81551-20260
Lens, Rear Combination Lamp, Rh
[08.1973 - 01.1977] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD RED |
81551-20260 |
— | ||
|
81551
|
81551
81551-20441 Lens, Rear Combination Lamp, Rh[06.1977 - 08.1978] RT119..3HC AMBER-RED-CLEAR,IKI |
81551-20441 |
US $154.34 |
||
|
81551
|
81551
81551-21090
Lens, Rear Combination Lamp, Rh
[08.1973 - 08.1978] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD AMBER-RED-CLEAR |
81551-21090 |
— | ||
|
81551
|
81551
81553-20410 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [01.1977 - 08.1978] RT119..3HC AMBER-RED-CLEAR,KOITO |
81553-20410 |
US $177.63 |
||
|
81551
|
81551
81553-20450 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [01.1977 - 08.1978] RT119..3HC AMBER-RED-CLEAR |
81553-20450 |
US $208.21 |
||
|
81551
|
81551
81558-20260
Lens, Rear Combination Lamp, Rh
[08.1973 - 01.1977] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD CLEAR |
81558-20260 |
— | ||
|
81551
|
81551
81559-20260 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1973 - 01.1977] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD AMBER-RED |
81559-20260 |
US $58.68 |
||
|
81554
|
81554
81552-20390
Gasket, Rear Combination Lamp Body, Rh
[01.1977 - 08.1977] RT119..3HC |
81552-20390 |
— | ||
|
81554
|
81554
81552-20391
Gasket, Rear Combination Lamp Body, Rh
[08.1977 - 08.1978] RT119..3HC KOITO |
81552-20391 |
— | ||
|
81554
|
81554
81552-20450 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [01.1977 - 08.1977] RT119..3HC |
81552-20450 |
US $25.77 |
||
| replacement | |||||
|
81554
|
81554
81552-20451
Gasket, Rear Combination Lamp Body, Rh
[01.1977 - 08.1977] RT119..3HC |
81552-20451 |
— | ||
|
81554
|
81554
81552-20451
Gasket, Rear Combination Lamp Body, Rh
[08.1977 - 08.1978] RT119..3HC |
81552-20451 |
— | ||
|
81554
|
81554
81554-20420
Gasket, Rear Combination Lamp Body, Rh
[06.1977 - 08.1978] RT119..3HC IKI |
81554-20420 |
— | ||
|
81554
|
81554
81554-21090
Gasket, Rear Combination Lamp Body, Rh
[08.1973 - 08.1978] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
81554-21090 |
— | ||
|
81555
|
81555
81555-20220
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1973 - 01.1977] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD IKI |
81555-20220 |
— | ||
|
81555
|
81555
81555-20250
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1973 - 01.1977] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD KOITO |
81555-20250 |
— | ||
|
81555
|
81555
81555-20280
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1973 - 01.1977] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
81555-20280 |
— | ||
|
81555
|
81555
81555-20410
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.1977 - 08.1978] RT119..3HC KOITO |
81555-20410 |
— | ||
|
81555
|
81555
81555-20440
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[06.1977 - 08.1978] RT119..3HC IKI |
81555-20440 |
— | ||
|
81555
|
81555
81555-20470
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.1977 - 08.1978] RT119..3HC |
81555-20470 |
— | ||
|
81555
|
81555
81555-21100 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.1973 - 08.1974] RT118..4F;RT104..3FC..STD |
81555-21100 |
US $19.80 |
||
| replacement | |||||
|
81555
|
81555
81555-21110
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1973 - 08.1974] RT118..4F;RT104..3FC..STD |
81555-21110 |
— | ||
|
81555
|
81555
81555-21101
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1974 - 01.1977] RT119..3HC;RT105..3FC..4D |
81555-21101 |
— | ||
|
81555
|
81555
81555-21102
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.1977 - 08.1978] RT119..3HC |
81555-21102 |
— | ||
|
81556
|
81556
81556-21090
Rim, Rear Combination Lamp, Rh
[08.1973 - 01.1977] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
81556-21090 |
— | ||
|
81556
|
81556
81556-21091
Rim, Rear Combination Lamp, Rh
[01.1977 - 08.1978] RT119..3HC |
81556-21091 |
— | ||
|
81560
|
81560
81560-29725 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [08.1973 - 01.1977] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD AMBER-RED-CLEAR |
81560-29725 |
US $257.71 |
||
|
81560
|
81560
81560-29726 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [01.1977 - 08.1978] RT119..3HC AMBER-RED-CLEAR |
81560-29726 |
US $257.71 |
||
|
81560
|
81560
81560-29895
Lamp Assy, Rear Combination, Lh
[01.1977 - 08.1978] RT119..3HC AMBER-RED-CLEAR,KOITO |
81560-29895 |
— | ||
|
81560
|
81560
81560-29906 Lamp Assy, Rear Combination, Lh[06.1977 - 08.1978] RT119..3HC AMBER-RED-CLEAR,IKI |
81560-29906 |
US $270.82 |
||
|
81560
|
81560
81560-29935
Lamp Assy, Rear Combination, Lh
[01.1977 - 08.1978] RT119..3HC AMBER-RED-CLEAR |
81560-29935 |
— | ||
|
81561
|
81561
81561-20060 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1973 - 01.1977] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD RED |
81561-20060 |
US $27.96 |
||
|
81561
|
81561
81561-20210
Lens, Rear Combination Lamp, Lh
[08.1973 - 01.1977] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD AMBER-RED-CLEAR,IKI |
81561-20210 |
— | ||
|
81561
|
81561
81561-20240 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1973 - 01.1977] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD AMBER- RED-CLEAR,KOITO |
81561-20240 |
US $106.29 |
||
|
81561
|
81561
81561-20381 Lens, Rear Combination Lamp, Lh[06.1977 - 08.1978] RT119..3HC AMBER-RED-CLEAR,IKI |
81561-20381 |
US $154.34 |
||
|
81561
|
81561
81561-21090 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1973 - 08.1978] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD AMBER-RED-CLEAR |
81561-21090 |
US $74.26 |
||
|
81561
|
81561
81563-20330 Lens, Rear Combination Lamp, Lh[01.1977 - 08.1977] RT119..3HC AMBER-RED-CLEAR |
81563-20330 |
US $177.63 |
||
| replacement | |||||
|
81561
|
81561
81563-20350
Lens, Rear Combination Lamp, Lh
[01.1977 - 08.1977] RT119..3HC AMBER-RED-CLEAR |
81563-20350 |
— | ||
|
81561
|
81561
81563-20350
Lens, Rear Combination Lamp, Lh
[08.1977 - 08.1978] RT119..3HC AMBER-RED-CLEAR,KOITO |
81563-20350 |
— | ||
|
81561
|
81561
81563-20390 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [01.1977 - 08.1978] RT119..3HC AMBER-RED-CLERR |
81563-20390 |
US $208.21 |
||
|
81561
|
81561
81568-20060 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1973 - 01.1977] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD CLEAR |
81568-20060 |
US $11.36 |
||
|
81561
|
81561
81569-20060 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1973 - 01.1977] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD AMBER-RED |
81569-20060 |
US $50.81 |
||
|
81564
|
81564
81562-20310
Gasket, Rear Combination Lamp Body, Lh
[01.1977 - 02.1977] RT119..3HC |
81562-20310 |
— | ||
|
81564
|
81564
81562-20311
Gasket, Rear Combination Lamp Body, Lh
[02.1977 - 08.1978] RT119..3HC KOITO |
81562-20311 |
— | ||
|
81564
|
81564
81562-20390 Gasket, Rear Combination Lamp Body, LhREAR COMBINATION LAMP BODY, LH [01.1977 - 02.1977] RT119..3HC |
81562-20390 |
US $27.66 |
||
| replacement | |||||
|
81564
|
81564
81562-20391
Gasket, Rear Combination Lamp Body, Lh
[01.1977 - 02.1977] RT119..3HC |
81562-20391 |
— | ||
|
81564
|
81564
81562-20391
Gasket, Rear Combination Lamp Body, Lh
[02.1977 - 08.1978] RT119..3HC |
81562-20391 |
— | ||
|
81564
|
81564
81564-20360
Gasket, Rear Combination Lamp Body, Lh
[06.1977 - 08.1978] RT119..3HC IKI |
81564-20360 |
— | ||
|
81564
|
81564
81564-21090
Gasket, Rear Combination Lamp Body, Lh
[08.1973 - 08.1978] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
81564-21090 |
— | ||
|
81565
|
81565
81555-21100 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.1973 - 08.1974] RT118..4F;RT104..3FC..STD |
81555-21100 |
US $19.80 |
||
| replacement | |||||
|
81565
|
81565
81555-21110
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1973 - 08.1974] RT118..4F;RT104..3FC..STD |
81555-21110 |
— | ||
|
81565
|
81565
81555-21101
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1974 - 01.1977] RT119..3HC;RT105..3FC..4D |
81555-21101 |
— | ||
|
81565
|
81565
81555-21102
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.1977 - 08.1978] RT119..3HC |
81555-21102 |
— | ||
|
81565
|
81565
81565-20330 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh[01.1977 - 08.1977] RT119..3HC |
81565-20330 |
US $36.11 |
||
| replacement | |||||
|
81565
|
81565
81565-20350 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh[01.1977 - 08.1977] RT119..3HC |
81565-20350 |
US $36.11 |
||
|
81565
|
81565
81565-20350 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh[08.1977 - 08.1978] RT119..3HC KOITO |
81565-20350 |
US $36.11 |
||
|
81565
|
81565
81565-20380
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[06.1977 - 08.1978] RT119..3HC IKI |
81565-20380 |
— | ||
|
81565
|
81565
81565-20410
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[01.1977 - 08.1978] RT119..3HC |
81565-20410 |
— | ||
|
81566
|
81566
81566-21090
Rim, Rear Combination Lamp, Lh
[08.1973 - 01.1977] RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
81566-21090 |
— | ||
|
81566
|
81566
81566-21091
Rim, Rear Combination Lamp, Lh
[01.1977 - 08.1978] RT119..3HC |
81566-21091 |
— | ||
|
9016850004
|
9016850004
90168-50004
New Genuine Part
|
90168-50004 |
— | ||
|
9324965030
|
9324965030
93249-65030 New Genuine Part |
93249-65030 |
US $1.46 |
||
|
9351014008
|
9351014008
93510-14008 New Genuine Part |
93510-14008 |
US $2.18 |
||
|
9351014010
|
9351014010
93510-14010 New Genuine Part |
93510-14010 |
US $1.31 |
||
