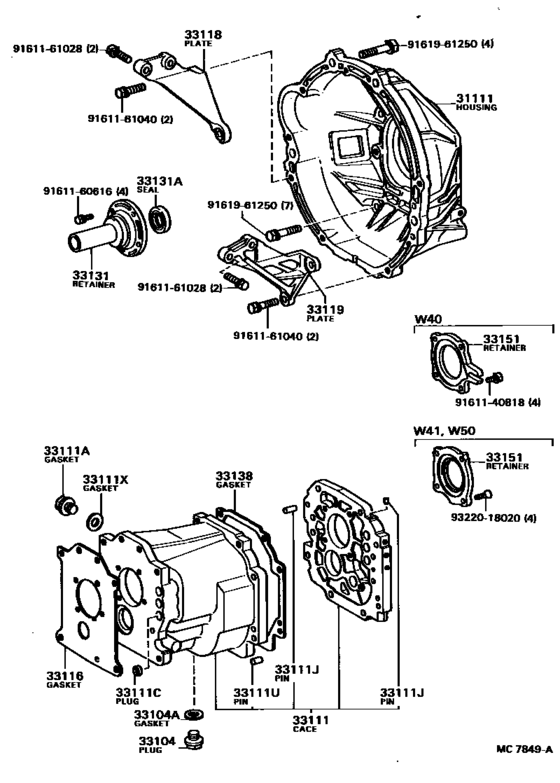

Clutch Housing & Transmission Case (Mtm) ([09.1978 - 05.1982] (7809-8205)RT132..MTM) Diagram Toyota CORONA
- Year
- 1978 - 1980
- Sales region
- Europe
- Frame
- RT132
- grade
- DLX
- body
- HT
- ENGINE
- 18R
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CORONA
- From
- 09.1978
- To
- 08.1980
- Gear Shift Type
- 4F
- Vehicle Model
- Corona
- Driver's Position
- LHD
- Rear Suspention
- LNK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-20120 Housing, ClutchCLUTCH [09.1978 - 05.1982] RT132..MTM |
31111-20120 |
US $330.51 |
||
| replacement | |||||
|
31111
|
31111
31111-20110 Housing, ClutchCLUTCH [09.1978 - 05.1982] RT132..MTM |
31111-20110 |
US $299.94 |
||
|
33104
|
33104
90341-18057 Drain Plug (with Magnet)[09.1978 - 08.1981] RT13#,TT132..MTM |
90341-18057 |
from US $5.60 |
||
|
33104A
|
33104A
12157-10010 Gasket (For Drain Plug)[09.1978 - 08.1980] RT13#,TT13#..MTM |
12157-10010 |
from US $1.60 |
||
|
33111
|
33111
33101-20011 Case, Manual TransmissionMANUAL TRANSMISSION [09.1978 - 08.1980] RT13#,TT132..MTM |
33101-20011 |
US $499.41 |
||
| replacement | |||||
|
33111
|
33111
33101-30021 Case, Manual Transmission[09.1978 - 08.1980] RT13#,TT132..MTM |
33101-30021 |
US $499.41 |
||
|
33111A
|
33111A
90341-18002 Plug, No.1[09.1978 - 01.1983] RT13#,TT13#..MTM |
90341-18002 |
from US $3.76 |
||
|
33111C
|
33111C
90331-20044
Plug(For Transmission Case)
[09.1978 - 08.1980] RT13#,TT132..MTM |
90331-20044 |
— | ||
|
33111J
|
33111J
90250-12195
Pin, Straight(For Manual Transmission Case)
[09.1978 - 08.1980] RT13#,TT132..MTM OD=12,L=39 |
90250-12195 |
— | ||
|
33111J
|
33111J
90334-06017 Pin, Straight(For Manual Transmission Case)[09.1978 - 08.1980] RT13#,TT132..MTM OD=6,L=11 |
90334-06017 |
US $2.18 |
||
|
33111U
|
33111U
90253-13017 Pin, Ring W/head[09.1978 - 08.1980] RT13#,TT132..MTM L=12,OD=13 |
90253-13017 |
from US $1.40 |
||
|
33111X
|
33111X
12157-10010 Gasket (For Drain Plug)[09.1978 - 08.1980] RT13#,TT13#..MTM |
12157-10010 |
from US $1.60 |
||
|
33116
|
33116
33132-20040
Gasket, Manual Transmission Case
[09.1978 - 08.1980] RT13#,TT132..MTM |
33132-20040 |
— | ||
|
33118
|
33118
33118-22030 Plate, Stiffener, Rh(Mtm)[09.1978 - 01.1983] RT132,133..MTM |
33118-22030 |
US $35.67 |
||
|
33119
|
33119
33119-22021 Plate, Stiffener, Lh(Mtm)[09.1978 - 01.1983] RT132,133..MTM |
33119-22021 |
US $34.36 |
||
| replacement | |||||
|
33119
|
33119
33119-22022
Plate, Stiffener, Lh(Mtm)
[09.1978 - 01.1983] RT132,133..MTM |
33119-22022 |
— | ||
|
33131
|
33131
33131-31010
Retainer, Bearing, Front(Mtm)
[09.1978 - 08.1980] RT13#,TT132..MTM |
33131-31010 |
— | ||
|
33131A
|
33131A
90311-30115 Seal, Oil(For Transmission Front Bearing Retainer)[09.1978 - 08.1981] RT13#,TT132..MTM |
90311-30115 |
from US $3.52 |
||
|
33138
|
33138
33142-31010 Gasket, Intermediate PlateINTERMEDIATE PLATE [09.1978 - 08.1980] RT13#,TT132..4F |
33142-31010 |
US $3.49 |
||
| replacement | |||||
|
33138
|
33138
33142-20020
Gasket, Intermediate Plate
[09.1978 - 08.1980] RT13#,TT132..4F |
33142-20020 |
— | ||
|
33151
|
33151
33151-31010
Retainer, Output Shaft Rear Bearing(Mtm)
[09.1978 - 08.1980] RT13#,TT132..4F |
33151-31010 |
— | ||
|
9161140818
|
9161140818
91611-40818
Bolt(for Oil Receiver Pipe)
|
91611-40818 |
— | ||
| replacement | |||||
|
9161140818
|
9161140818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.60 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $1.19 |
||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $2.72 |
||
|
9161161040
|
9161161040
91611-61040
Bolt(For Transaxle Case & Engine Setting)
|
91611-61040 |
— | ||
| replacement | |||||
|
9161161040
|
9161161040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.08 |
||
|
9161961250
|
9161961250
91619-61250 Bolt |
91619-61250 |
from US $2.05 |
||
|
9322018020
|
9322018020
93220-18020
New Genuine Part
|
93220-18020 |
— | ||
| replacement | |||||
|
9322018020
|
9322018020
93230-18020 New Genuine Part |
93230-18020 |
US $1.76 |
||
