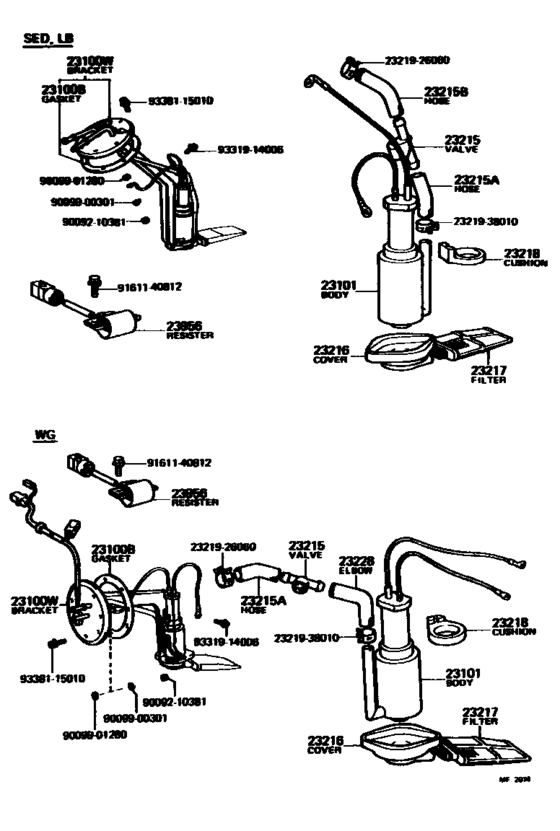

Fuel Pump & Pipe ([09.1978 - 08.1979] (7809-7908)) Diagram Toyota CORONA
- Year
- 1978 - 1980
- Sales region
- U.S.A.
- Frame
- RT134
- grade
- DLX
- body
- SED
- ENGINE
- 20R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- CORONA
- From
- 09.1978
- To
- 08.1980
- Gear Shift Type
- 4F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100B
|
23100B
83361-14010
Gasket, Fuel Pump
[09.1978 - 08.1979] 20R..RT134 |
83361-14010 |
— | ||
|
23100B
|
23100B
90923-05005
Gasket, Cylinder Block Side Cover, No.2
[08.1979 - 12.1981] 20R,22R..RT13# |
90923-05005 |
— | ||
| replacement | |||||
|
23100B
|
23100B
90923-05019 Gasket, Fuel Pump[08.1979 - 12.1981] 20R,22R..RT13# |
90923-05019 |
from US $2.94 |
||
|
23100W
|
23100W
85681-19015
Bracket(For Fuel Pump & Fuel Sender Gage)
[09.1978 - 08.1979] 20R..RT134..LB,SED |
85681-19015 |
— | ||
|
23101
|
23101
23101-38010 Body Sub-Assy, Fuel PumpFUEL PUMP [09.1978 - 08.1979] 20R..RT134 |
23101-38010 |
US $299.94 |
||
|
23215
|
23215
85675-21010
Valve, Relief
[09.1978 - 08.1979] 20R..RT134 |
85675-21010 |
— | ||
|
23215A
|
23215A
90099-19101
Hose, Fuel Pump, No.1
[09.1978 - 08.1979] 20R..RT134 |
90099-19101 |
— | ||
|
23215B
|
23215B
90099-19104
Hose, Fuel Pump, No.2
[09.1978 - 08.1979] 20R..RT134..LB,SED |
90099-19104 |
— | ||
|
23216
|
23216
85676-14010
Cover, Fuel Pump
[09.1978 - 08.1979] 20R..RT134 |
85676-14010 |
— | ||
|
23217
|
23217
85677-14010
Filter, Fuel Pump
[09.1978 - 08.1979] 20R..RT134 |
85677-14010 |
— | ||
|
23218
|
23218
23218-38010
Cushion, Rubber
[09.1978 - 08.1979] 20R..RT134 |
23218-38010 |
— | ||
|
23956
|
23956
85671-20011
Resistor, Fuel Pump
[09.1978 - 08.1979] 20R..RT134 |
85671-20011 |
— | ||
|
2321926060
|
2321926060
23219-26060
Clip, Hose
|
23219-26060 |
— | ||
|
2321938010
|
2321938010
23219-38010
Clip, Hose
|
23219-38010 |
— | ||
|
9009210381
|
9009210381
90092-10381
New Genuine Part
|
90092-10381 |
— | ||
|
9009900301
|
9009900301
90099-00301
New Genuine Part
|
90099-00301 |
— | ||
|
9009901280
|
9009901280
90099-01280
New Genuine Part
|
90099-01280 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
|
9338115010
|
9338115010
93381-15010 SCREW |
93381-15010 |
US $0.96 |
||
