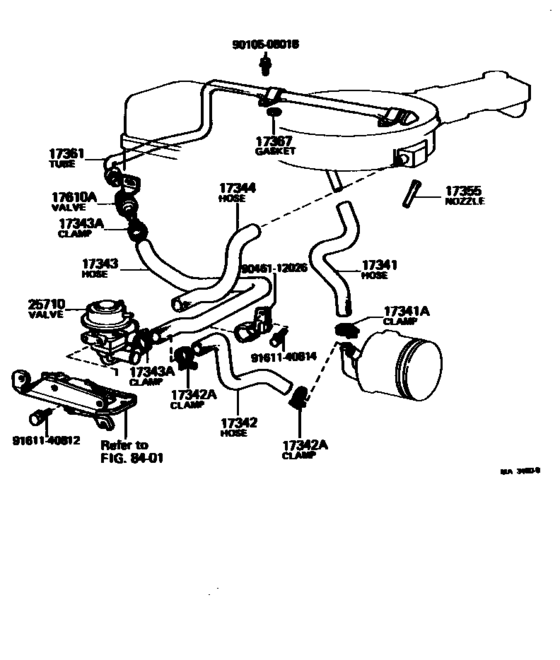

Manifold Air Injection System ([09.1978 - 08.1979] (7809-7908)) Diagram Toyota CORONA
- Year
- 1978 - 1980
- Sales region
- U.S.A.
- Frame
- RT134
- grade
- DLX
- body
- SED
- ENGINE
- 20R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- CORONA
- From
- 09.1978
- To
- 08.1980
- Gear Shift Type
- 4F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341
|
17341
17341-38030
Hose, No.1(For Air Injection System)
[09.1978 - 08.1979] 20R..RT134 |
17341-38030 |
— | ||
|
17341
|
17341
17341-38040 Hose, No.1(For Air Injection System)NO.1(FOR AIR INJECTION SYSTEM) [08.1979 - 08.1980] 20R..RT134 |
17341-38040 |
US $51.69 |
||
|
17341A
|
17341A
96111-10330 Clamp Or Clip, Hose(For Water By-Pass Hose)[09.1978 - 08.1980] 20R..RT134 |
96111-10330 |
US $2.08 |
||
|
17342
|
17342
17342-38040 Hose, No.2(For Air Injection System)NO.2(FOR AIR INJECTION SYSTEM) [09.1978 - 08.1979] 20R..RT134 |
17342-38040 |
US $80.08 |
||
|
17342
|
17342
17342-38050 Hose, No.2(For Air Injection System)NO.2(FOR AIR INJECTION SYSTEM) [08.1979 - 08.1980] 20R..RT134 |
17342-38050 |
US $39.02 |
||
|
17342A
|
17342A
90467-28003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[08.1979 - 08.1980] 20R..RT134 |
90467-28003 |
— | ||
| replacement | |||||
|
17342A
|
17342A
90467-28007 Clip Or Clamp(For Ventilation Hose)[08.1979 - 08.1980] 20R..RT134 |
90467-28007 |
from US $3.20 |
||
|
17342A
|
17342A
96111-10330 Clamp Or Clip, Hose(For Water By-Pass Hose)[09.1978 - 08.1979] 20R..RT134 |
96111-10330 |
US $2.08 |
||
|
17343
|
17343
17343-38031 Hose, No.3(For Air Injection System)[09.1978 - 08.1979] 20R..RT134 |
17343-38031 |
US $106.29 |
||
|
17343
|
17343
17343-38040 Hose, No.3(For Air Injection System)NO.3(FOR AIR INJECTION SYSTEM) [08.1979 - 08.1980] 20R..RT134 |
17343-38040 |
US $19.66 |
||
|
17343A
|
17343A
96111-10330 Clamp Or Clip, Hose(For Water By-Pass Hose)[09.1978 - 08.1979] 20R..RT134 |
96111-10330 |
US $2.08 |
||
|
17344
|
17344
17344-38040 Hose, No.4(For Air Injection System)[09.1978 - 04.1979] 20R..RT134 |
17344-38040 |
US $42.95 |
||
| replacement | |||||
|
17344
|
17344
17344-38060
Hose, No.4(For Air Injection System)
[09.1978 - 04.1979] 20R..RT134 |
17344-38060 |
— | ||
|
17344
|
17344
17344-38050 Hose, No.4(For Air Injection System)NO.4(FOR AIR INJECTION SYSTEM) [08.1979 - 08.1980] 20R..RT134 |
17344-38050 |
US $41.06 |
||
|
17344
|
17344
17344-38060
Hose, No.4(For Air Injection System)
[04.1979 - 08.1979] 20R..RT134 |
17344-38060 |
— | ||
|
17355
|
17355
17355-38010 Nozzle, Air InjectionAIR INJECTION [09.1978 - 08.1979] 20R..RT134..USA CALIFORNIA SPEC |
17355-38010 |
US $70.32 |
||
|
17361
|
17361
17360-38020
Tube, Air
[09.1978 - 08.1980] 20R..RT134 |
17360-38020 |
— | ||
|
17367
|
17367
17376-38010 Gasket, Air Tube[09.1978 - 11.1978] 20R..RT134 |
17376-38010 |
US $3.49 |
||
| replacement | |||||
|
17367
|
17367
17376-38012
Gasket(For Exhaust Manifold Plate)
[09.1978 - 11.1978] 20R..RT134 |
17376-38012 |
— | ||
|
17367
|
17367
17376-38011 Gasket(For Exhaust Manifold Plate)AIR TUBE [11.1978 - 08.1980] 20R..RT134 |
17376-38011 |
US $3.64 |
||
| replacement | |||||
|
17367
|
17367
17376-38012
Gasket(For Exhaust Manifold Plate)
[11.1978 - 08.1980] 20R..RT134 |
17376-38012 |
— | ||
|
17610A
|
17610A
90917-10028
Valve, Check(For Air Injection System)
[09.1978 - 08.1980] 20R..RT134 |
90917-10028 |
— | ||
|
25710
|
25710
25710-38030
Valve Assy, Air Switching
[09.1978 - 08.1979] 20R..RT134 |
25710-38030 |
— | ||
|
25710
|
25710
25710-38040
Valve Assy, Air Switching
[08.1979 - 08.1980] 20R..RT134 |
25710-38040 |
— | ||
|
9010508018
|
9010508018
90105-08018 New Genuine Part |
90105-08018 |
US $2.77 |
||
| replacement | |||||
|
9010508018
|
9010508018
90105-08112 New Genuine Part |
90105-08112 |
from US $2.04 |
||
|
9046112026
|
9046112026
90461-12026 New Genuine Part |
90461-12026 |
US $9.90 |
||
| replacement | |||||
|
9046112026
|
9046112026
90461-14006
New Genuine Part
|
90461-14006 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
