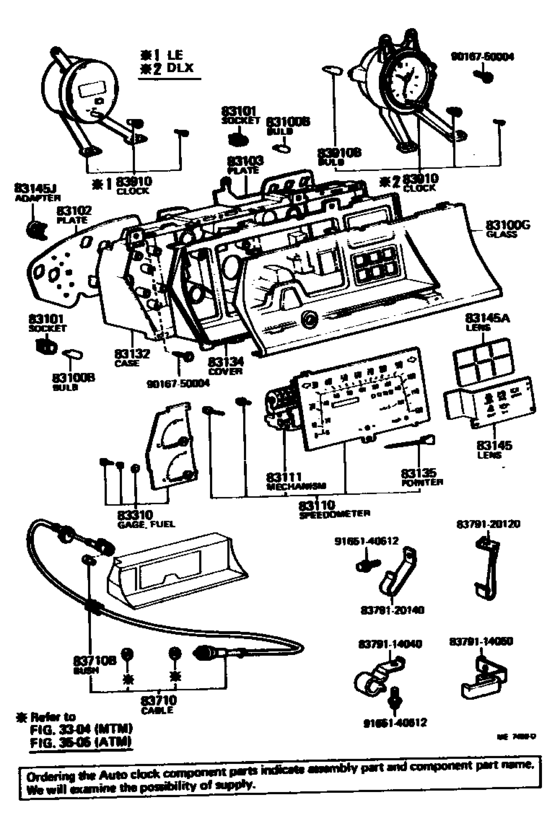

Meter ([09.1978 - 08.1980] (7809-8008)) Diagram Toyota CORONA
- Year
- 1978 - 1980
- Sales region
- U.S.A.
- Frame
- RT134
- grade
- DLX
- body
- SED
- ENGINE
- 20R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- CORONA
- From
- 09.1978
- To
- 08.1980
- Gear Shift Type
- 4F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[09.1978 - 12.1981] RT13# 12V 1.2W W/O SOCKET,12V 1.4W |
90981-11018 |
from US $2.24 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[09.1978 - 12.1981] RT13# 12V 3.4W,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[09.1978 - 12.1981] RT13# 12V 3.4W,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83138-20870 Glass, Combination MeterCOMBINATION METER [09.1978 - 08.1980] RT134 |
83138-20870 |
US $42.81 |
||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[09.1978 - 08.1980] RT134 12V 3.4W |
83101-20040 |
from US $1.68 |
||
|
83101
|
83101
83101-22010
Socket & Wire, Indicator Lamp
[09.1978 - 08.1980] RT134 12V 1.4W |
83101-22010 |
— | ||
| replacement | |||||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[09.1978 - 08.1980] RT134 12V 1.4W |
83101-14040 |
US $3.02 |
||
|
83102
|
83102
83247-20160
Plate Sub-Assy, Combination Meter Circuit, No.1
[09.1978 - 08.1980] RT134 |
83247-20160 |
— | ||
|
83103
|
83103
83247-20170
Plate Sub-Assy, Combination Meter Circuit, No.2
[09.1978 - 08.1980] RT134 |
83247-20170 |
— | ||
|
83110
|
83110
83110-20470 Speedometer Assy[09.1978 - 08.1979] RT134..USA MILE & KM |
83110-20470 |
US $358.18 |
||
| replacement | |||||
|
83110
|
83110
83110-20471
Speedometer Assy
[09.1978 - 08.1979] RT134..USA MILE & KM |
83110-20471 |
— | ||
|
83110
|
83110
83110-20471
Speedometer Assy
[08.1979 - 08.1980] RT134..USA MILE & KM |
83110-20471 |
— | ||
|
83111
|
83111
83112-20880
Mechanism, Speedometer
[09.1978 - 08.1980] RT134..USA MILE & KM |
83112-20880 |
— | ||
|
83132
|
83132
83132-20870
Case, Combination Meter
[09.1978 - 08.1980] RT134 |
83132-20870 |
— | ||
|
83134
|
83134
83134-20880
Cover, Combination Meter, No.1
[09.1978 - 08.1980] RT134..USA |
83134-20880 |
— | ||
|
83135
|
83135
83135-20840
Pointer, Speedometer
[09.1978 - 08.1980] RT134 |
83135-20840 |
— | ||
|
83145
|
83145
83145-20110
Lens, Meter, No.1
[09.1978 - 08.1980] RT134 |
83145-20110 |
— | ||
|
83145A
|
83145A
83145-20030
Lens, Meter, No.2
[09.1978 - 08.1980] RT134 |
83145-20030 |
— | ||
|
83145J
|
83145J
83145-20100
Adapter, Meter Bulb Socket
[09.1978 - 08.1980] RT134 |
83145-20100 |
— | ||
|
83310
|
83310
83243-20050
Gage Assy, Fuel Receiver
[09.1978 - 08.1979] RT134 |
83243-20050 |
— | ||
|
83310
|
83310
83243-20051
Gage Assy, Fuel Receiver
[08.1979 - 08.1980] RT134 |
83243-20051 |
— | ||
|
83710
|
83710
83710-29555 Cable Assy, Speedometer Drive, No.1SPEEDOMETER DRIVE, NO.1 [09.1978 - 08.1980] RT134 |
83710-29555 |
US $50.23 |
||
|
83710B
|
83710B
90389-02001
Bush, Speedometer Drive Cable
[09.1978 - 11.1980] RT13# |
90389-02001 |
— | ||
|
83910
|
83910
83910-20240
Clock Assy
[09.1978 - 08.1980] RT134..DLX |
83910-20240 |
— | ||
|
83910B
|
83910B
99132-12034 Bulb, Position Indicator Lamp[09.1978 - 08.1980] RT134..DLX 12V 3.4W,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83910B
|
83910B
00234-00158 Bulb, Position Indicator Lamp[09.1978 - 08.1980] RT134..DLX 12V 3.4W,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
8379114040
|
8379114040
83791-14040
New Genuine Part
|
83791-14040 |
— | ||
|
8379114050
|
8379114050
83791-14050
New Genuine Part
|
83791-14050 |
— | ||
|
8379120120
|
8379120120
83791-20120
New Genuine Part
|
83791-20120 |
— | ||
|
8379120140
|
8379120140
83791-20140
New Genuine Part
|
83791-20140 |
— | ||
|
9016750004
|
9016750004
90167-50004 New Genuine Part |
90167-50004 |
US $1.60 |
||
| replacement | |||||
|
9016750004
|
9016750004
93568-55018 SCREW |
93568-55018 |
from US $0.62 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
