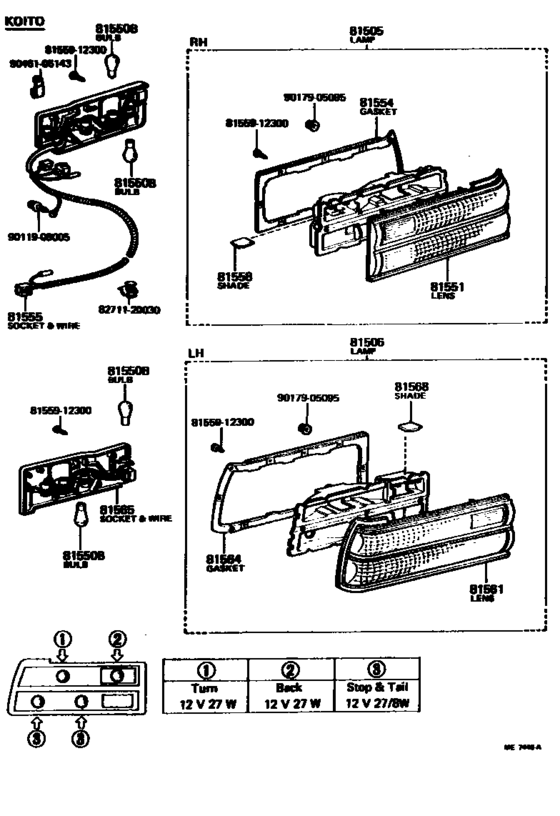

Rear Combination Lamp ([09.1978 - 08.1980] (7809-8008)SED) Diagram Toyota CORONA
- Year
- 1978 - 1980
- Sales region
- U.S.A.
- Frame
- RT134
- grade
- DLX
- body
- SED
- ENGINE
- 20R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- CORONA
- From
- 09.1978
- To
- 08.1980
- Gear Shift Type
- 4F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81505
|
81505
81505-29155
Lamp Sub-Assy, Rear Combination, Rh
[09.1978 - 08.1980] RT134..SED KOITO |
81505-29155 |
— | ||
|
81505
|
81505
81505-29175
Lamp Sub-Assy, Rear Combination, Rh
[09.1978 - 08.1980] RT134..SED IKI |
81505-29175 |
— | ||
|
81506
|
81506
81506-29075
Lamp Sub-Assy, Rear Combination, Lh
[09.1978 - 08.1980] RT134..SED KOITO |
81506-29075 |
— | ||
|
81506
|
81506
81506-29095
Lamp Sub-Assy, Rear Combination, Lh
[09.1978 - 08.1980] RT134..SED IKI |
81506-29095 |
— | ||
|
81550B
|
81550B
99132-11270 Bulb, Fog Lamp[09.1978 - 12.1981] RT13# 12V 27W,12V 27W |
99132-11270 |
US $3.36 |
||
|
81550B
|
81550B
99132-21270 Bulb (For Front Turn Signal Lamp)[09.1978 - 12.1981] RT13# 12V 27/8W,12V 27/8W |
99132-21270 |
US $4.32 |
||
|
81551
|
81551
81551-20480
Lens, Rear Combination Lamp, Rh
[09.1978 - 08.1980] RT134..SED KOITO |
81551-20480 |
— | ||
|
81551
|
81551
81551-20510
Lens, Rear Combination Lamp, Rh
[09.1978 - 08.1980] RT134..SED IKI |
81551-20510 |
— | ||
| replacement | |||||
|
81551
|
81551
81551-20520
Lens, Rear Combination Lamp, Rh
[09.1978 - 08.1980] RT134..SED IKI |
81551-20520 |
— | ||
|
81554
|
81554
81552-20480
Gasket, Rear Combination Lamp Body, Rh
[09.1978 - 08.1980] RT134..SED KOITO |
81552-20480 |
— | ||
|
81554
|
81554
81554-20510
Gasket, Rear Combination Lamp Body, Rh
[09.1978 - 08.1980] RT134..SED IKI |
81554-20510 |
— | ||
|
81555
|
81555
81555-20500
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[09.1978 - 08.1979] RT134..SED KOITO |
81555-20500 |
— | ||
|
81555
|
81555
81555-20501
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1979 - 08.1980] RT134..SED KOITO |
81555-20501 |
— | ||
|
81555
|
81555
81555-20530
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[09.1978 - 08.1979] RT134..SED IKI |
81555-20530 |
— | ||
| replacement | |||||
|
81555
|
81555
81555-20531
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[09.1978 - 08.1979] RT134..SED IKI |
81555-20531 |
— | ||
|
81555
|
81555
81555-20532
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1979 - 08.1980] RT134..SED IKI |
81555-20532 |
— | ||
|
81558
|
81558
81517-14170
Protector, Front Turn Signal Lamp, Rh
[09.1978 - 08.1980] RT134..SED KOITO |
81517-14170 |
— | ||
|
81561
|
81561
81561-20420
Lens, Rear Combination Lamp, Lh
[09.1978 - 08.1980] RT134..SED KOITO |
81561-20420 |
— | ||
|
81561
|
81561
81561-20450
Lens, Rear Combination Lamp, Lh
[09.1978 - 08.1980] RT134..SED IKI |
81561-20450 |
— | ||
| replacement | |||||
|
81561
|
81561
81561-20460 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [09.1978 - 08.1980] RT134..SED IKI |
81561-20460 |
from US $79.42 |
||
|
81564
|
81564
81552-20480
Gasket, Rear Combination Lamp Body, Rh
[09.1978 - 08.1980] RT134..SED KOITO |
81552-20480 |
— | ||
|
81564
|
81564
81564-20450
Gasket, Rear Combination Lamp Body, Lh
[09.1978 - 08.1980] RT134..SED IKI |
81564-20450 |
— | ||
|
81565
|
81565
81565-20440
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[09.1978 - 08.1980] RT134..SED KOITO |
81565-20440 |
— | ||
|
81565
|
81565
81565-20470
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[09.1978 - 08.1980] RT134..SED IKI |
81565-20470 |
— | ||
|
81568
|
81568
81517-14170
Protector, Front Turn Signal Lamp, Rh
[09.1978 - 08.1980] RT134..SED KOITO |
81517-14170 |
— | ||
|
8155912300
|
8155912300
81559-12300
Bracket,foglamp,rh No.2
|
81559-12300 |
— | ||
| replacement | |||||
|
8155912300
|
8155912300
81279-91D01
Bracket,foglamp,rh No.2
|
81279-91D01 |
— | ||
|
8271120030
|
8271120030
82711-20030 Clamp, Wiring Harness |
82711-20030 |
US $3.35 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9046106143
|
9046106143
90461-06143 New Genuine Part |
90461-06143 |
US $1.89 |
||
