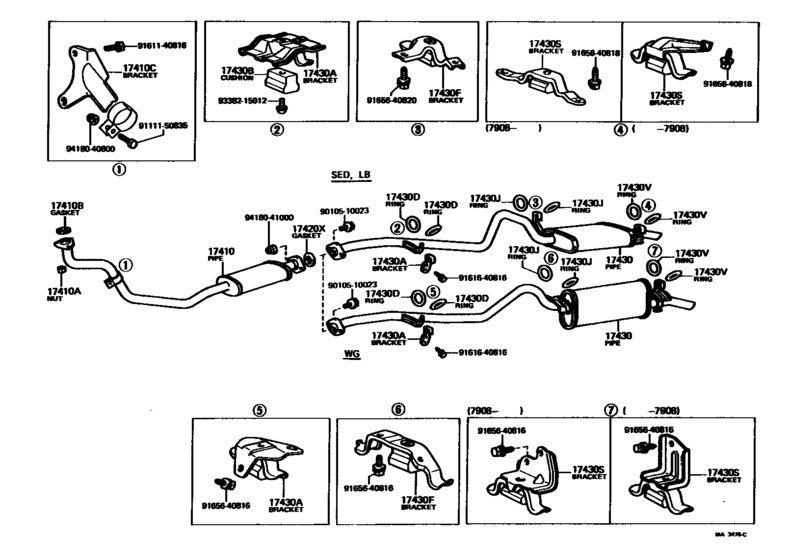

Exhaust Pipe ([09.1978 - 08.1980] (7809-8008)20R..CND) Diagram Toyota CORONA
- Year
- 1978 - 1980
- Sales region
- U.S.A.
- Frame
- RT134
- grade
- DLX
- body
- SED
- ENGINE
- 20R
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- CORONA
- From
- 09.1978
- To
- 08.1980
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-38090 Pipe Assy, Exhaust, Front[09.1978 - 08.1979] 20R..RT134..CND |
17410-38090 |
US $374.19 |
||
| replacement | |||||
|
17410
|
17410
17410-38180
Pipe Assy, Exhaust, Front
[09.1978 - 08.1979] 20R..RT134..CND |
17410-38180 |
— | ||
|
17410
|
17410
17410-38180
Pipe Assy, Exhaust, Front
[08.1979 - 08.1980] 20R..RT134..CND |
17410-38180 |
— | ||
|
17410A
|
17410A
90179-10010 Nut, Exhaust Pipe Set Stud Bolt[09.1978 - 11.1979] 20R..RT134 |
90179-10010 |
from US $1.58 |
||
|
17410A
|
17410A
90179-10028 Nut, Exhaust Pipe Set Stud Bolt[11.1979 - 12.1981] 20R,22R..RT13# |
90179-10028 |
from US $2.91 |
||
|
17410B
|
17410B
90917-06012
Gasket, Exhaust Pipe
[09.1978 - 08.1980] 20R..RT134..CND |
90917-06012 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06045 Gasket, Exhaust Pipe[09.1978 - 08.1980] 20R..RT134..CND |
90917-06045 |
from US $1.70 |
||
|
17410C
|
17410C
17571-38040 Bracket, Exhaust Pipe Front (For Front)[09.1978 - 08.1980] 20R..RT134..CND |
17571-38040 |
US $8.01 |
||
|
17420X
|
17420X
90917-06004
Gasket(For Manifold Extension)
[09.1978 - 08.1980] 20R..RT134..CND |
90917-06004 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06039 Gasket, Exhaust Pipe[09.1978 - 08.1980] 20R..RT134..CND |
90917-06039 |
from US $2.36 |
||
|
17430
|
17430
17430-38250
Pipe Assy, Exhaust, Tail
[09.1978 - 08.1979] 20R..RT134..(LB,SED)..CND |
17430-38250 |
— | ||
|
17430
|
17430
17430-38251
Pipe Assy, Exhaust, Tail
[08.1979 - 08.1980] 20R..RT134..(LB,SED)..CND |
17430-38251 |
— | ||
|
17430A
|
17430A
17506-26050 Bracket, Exhaust Pipe, Center[09.1978 - 12.1981] 20R,22R..RT13#..LB,SED FLOOR PAN SIDE |
17506-26050 |
US $22.86 |
||
|
17430A
|
17430A
17561-26080 Bracket, Exhaust Tail Pipe(For Front)[09.1978 - 12.1981] 20R,22R..RT13# PIPE SIDE |
17561-26080 |
US $9.61 |
||
|
17430B
|
17430B
17591-36010
Cushion, Exhaust Pipe Front (For Rear)
[09.1978 - 12.1981] 20R,22R..RT13#..LB,SED |
17591-36010 |
— | ||
| replacements | |||||
|
17430B
|
17430B
17591-36011 Cushion, Exhaust Pipe Center, Center[09.1978 - 12.1981] 20R,22R..RT13#..LB,SED |
17591-36011 |
US $17.41 |
||
|
17430B
|
17430B
90159-50207 New Genuine Part[09.1978 - 12.1981] 20R,22R..RT13#..LB,SED |
90159-50207 |
US $0.92 |
||
|
17430D
|
17430D
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[09.1978 - 12.1981] 20R,22R..RT13# |
90301-34207 |
US $9.92 |
||
|
17430F
|
17430F
17507-26050
Bracket, Exhaust Tail Pipe(For Center)
[09.1978 - 12.1981] 20R,22R..RT13#..LB,SED |
17507-26050 |
— | ||
|
17430J
|
17430J
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[09.1978 - 12.1981] 20R,22R..RT13# |
90301-34207 |
US $9.92 |
||
|
17430S
|
17430S
17508-38040 Bracket, Exhaust Tail Pipe (For Rear)[08.1979 - 12.1981] 20R,22R..RT13#..LB,SED |
17508-38040 |
US $24.32 |
||
|
17430S
|
17430S
17508-41010
Bracket, Exhaust Tail Pipe (For Rear)
[09.1978 - 08.1979] 20R..RT134..LB,SED |
17508-41010 |
— | ||
|
17430V
|
17430V
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[09.1978 - 12.1981] 20R,22R..RT13# |
90301-34207 |
US $9.92 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9111150835
|
9111150835
91111-50835 Bolt(For Clutch Pedal Stopper) |
91111-50835 |
US $1.89 |
||
| replacement | |||||
|
9111150835
|
9111150835
91131-50835 Bolt(For Clutch Pedal Stopper) |
91131-50835 |
US $2.62 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161640816
|
9161640816
91616-40816
Screw Or Bolt(for Valve Rocker Shaft Lock)
|
91616-40816 |
— | ||
| replacement | |||||
|
9161640816
|
9161640816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9165640816
|
9165640816
91656-40816
New Genuine Part
|
91656-40816 |
— | ||
| replacements | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9165640816
|
9165640816
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
9165640818
|
9165640818
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
91656-40818 |
— | ||
| replacement | |||||
|
9165640818
|
9165640818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9165640820
|
9165640820
91656-40820
BOLT
|
91656-40820 |
— | ||
| replacement | |||||
|
9165640820
|
9165640820
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
|
9338215012
|
9338215012
93382-15012 New Genuine Part |
93382-15012 |
US $1.12 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.70 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.42 |
||
