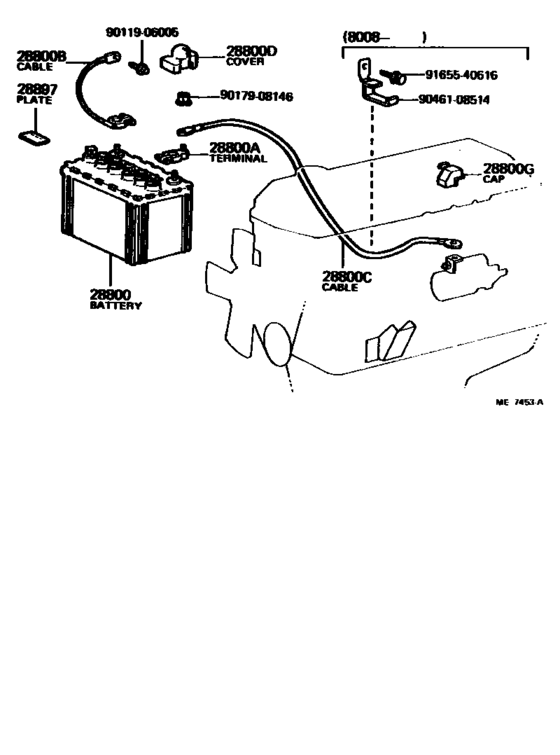

Battery & Battery Cable ([09.1978 - ] (7809- )) Diagram Toyota CORONA
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- RT135
- grade
- DLX
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- CORONA
- From
- 08.1980
- To
- 12.1981
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800
|
28800
28800-14030
Battery
[08.1981 - 12.1981] 22R..RT135..USA 50D20R,50D20R-MFB |
28800-14030 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-15021
Battery
[08.1981 - 12.1981] 22R..RT135..USA 50D20R,50D20R-MFB |
28800-15021 |
— | ||
|
28800
|
28800
28800-15010
Battery
[08.1981 - 12.1981] 22R..RT135 55D23R,55D23R-MFB,COLD SPEC |
28800-15010 |
— | ||
|
28800
|
28800
28800-27030
Battery
[08.1979 - 08.1981] 20R,22R..RT13#..USA N50-MFB |
28800-27030 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-15022
Battery
[08.1979 - 08.1981] 20R,22R..RT13#..USA N50-MFB |
28800-15022 |
— | ||
|
28800
|
28800
28800-33071
Battery
[09.1978 - 12.1981] 20R,22R..RT13#..USA 32C24R,N40 |
28800-33071 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-47090
Battery
[09.1978 - 12.1981] 20R,22R..RT13#..USA 32C24R,N40 |
28800-47090 |
— | ||
|
28800
|
28800
28800-38010
Battery
[09.1978 - 08.1981] 20R,22R..RT13#..USA N50Z-MFB |
28800-38010 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-15022
Battery
[09.1978 - 08.1981] 20R,22R..RT13#..USA N50Z-MFB |
28800-15022 |
— | ||
|
28800A
|
28800A
90982-05005
Terminal, Battery Positive
[09.1978 - 12.1981] 20R,22R..RT13# |
90982-05005 |
— | ||
| replacement | |||||
|
28800A
|
28800A
90982-05030 Terminal, Battery Positive[09.1978 - 12.1981] 20R,22R..RT13# |
90982-05030 |
from US $13.57 |
||
|
28800B
|
28800B
90982-02136
Cable, Battery To Ground
[09.1978 - 12.1981] 20R,22R..RT13# |
90982-02136 |
— | ||
| replacement | |||||
|
28800B
|
28800B
90982-02224
Cable, Battery To Ground
[09.1978 - 12.1981] 20R,22R..RT13# |
90982-02224 |
— | ||
|
28800C
|
28800C
82021-20280 Cable, Battery To Starter(For Battery To Main Switch)BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) [08.1980 - 12.1981] 22R..RT135..5F |
82021-20280 |
US $112.11 |
||
|
28800D
|
28800D
82821-14020
Cover, Connector(For Battery Terminal)
[09.1978 - 12.1981] 20R,22R..RT13# |
82821-14020 |
— | ||
|
28897
|
28897
28897-26010
Plate, Battery Caution
[09.1978 - 12.1981] 20R,22R..RT13#..USA N40 |
28897-26010 |
— | ||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9046108514
|
9046108514
90461-08514 New Genuine Part |
90461-08514 |
US $7.86 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
