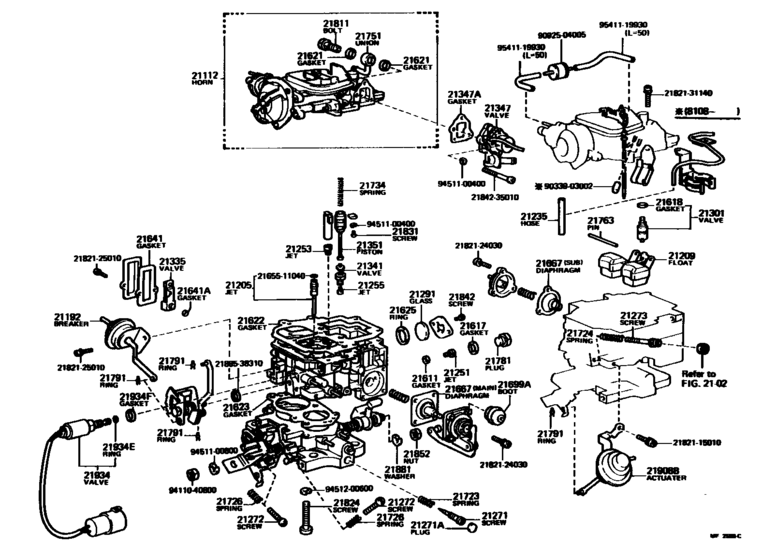

Carburetor ([08.1980 - ] (8008- )22R..5F..USA) Diagram Toyota CORONA
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- RT135
- grade
- DLX
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- CORONA
- From
- 08.1980
- To
- 12.1981
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21112
|
21112
21112-35011
Horn, Air
[08.1980 - 08.1981] 22R..RT135 |
21112-35011 |
— | ||
|
21112
|
21112
21112-35031
Horn, Air
[08.1980 - 08.1981] 22R..RT135..USA HIGH ALTITUDE SPEC |
21112-35031 |
— | ||
|
21112
|
21112
21112-35070
Horn, Air
[08.1981 - 12.1981] 22R..RT135..USA |
21112-35070 |
— | ||
|
21192
|
21192
21192-35010 Breaker[08.1980 - 12.1981] 22R..RT135 |
21192-35010 |
US $160.16 |
||
|
21205
|
21205
21205-35020 Jet Sub-Assy, SlowSLOW [08.1980 - 08.1981] 22R..RT135..USA ID=0.51 |
21205-35020 |
US $16.45 |
||
|
21209
|
21209
21209-37041
Float Sub-Assy
[08.1980 - 12.1981] 22R..RT135 |
21209-37041 |
— | ||
|
21235
|
21235
95411-19930
Hose(For Carburetor To Manifold)
[08.1980 - 08.1981] 22R..RT135 *H,L=70 |
95411-19930 |
— | ||
| replacement | |||||
|
21235
|
21235
90999-92002
Air Hose (300 mm)
[08.1980 - 08.1981] 22R..RT135 *H,L=70 |
90999-92002 |
— | ||
|
21251
|
21251
90999-41112 Jet, 1St Main[08.1980 - 08.1981] 22R..RT135..USA ID=1.12 |
90999-41112 |
US $5.82 |
||
|
21253
|
21253
21253-37040
Jet, 2Nd Main
[08.1980 - 12.1981] 22R..RT135 |
21253-37040 |
— | ||
| replacement | |||||
|
21253
|
21253
21253-35410 Jet, 2Nd Main2ND MAIN [08.1980 - 12.1981] 22R..RT135 |
21253-35410 |
US $5.97 |
||
|
21255
|
21255
90999-43044 Jet, Power[08.1980 - 12.1981] 22R..RT135 ID=0.44 |
90999-43044 |
US $5.97 |
||
|
21271
|
21271
21271-35010
Screw, Idle Adjusting
[08.1980 - 12.1981] 22R..RT135 |
21271-35010 |
— | ||
|
21271A
|
21271A
21785-13210 Plug, Plate(For Suction Chanber Adjusting)[08.1980 - 12.1981] 22R..RT135 |
21785-13210 |
US $6.41 |
||
|
21272
|
21272
21844-33010
Screw, 1St Idle Adjusting
[08.1980 - 12.1981] 22R..RT135 |
21844-33010 |
— | ||
|
21273
|
21273
21273-37040 Screw, Throttle Adjusting[08.1980 - 12.1981] 22R..RT135 |
21273-37040 |
US $11.07 |
||
|
21291
|
21291
21291-34320
Glass, Level Gage
[09.1978 - 12.1981] 20R,22R..RT13# |
21291-34320 |
— | ||
|
21301
|
21301
21301-35010
Valve Sub-Assy, Needle
[08.1980 - 12.1981] 22R..RT135 |
21301-35010 |
— | ||
|
21335
|
21335
21335-37040 Valve, Thermostatic[08.1980 - 12.1981] 22R..RT135 |
21335-37040 |
US $36.84 |
||
|
21341
|
21341
21304-61060
Valve, Power
[08.1980 - 12.1981] 22R..RT135 |
21304-61060 |
— | ||
|
21347
|
21347
21347-35011 Valve, SolenoidSOLENOID [08.1980 - 12.1981] 22R..RT135 |
21347-35011 |
US $275.18 |
||
| replacement | |||||
|
21347
|
21347
21347-35012 Valve, Solenoid[08.1980 - 12.1981] 22R..RT135 |
21347-35012 |
US $257.71 |
||
|
21347A
|
21347A
21641-35010 Gasket(For Valve, Solenoid)[08.1980 - 12.1981] 22R..RT135 |
21641-35010 |
US $5.53 |
||
| replacement | |||||
|
21347A
|
21347A
21641-35510 Gasket(For Valve, Solenoid)[08.1980 - 12.1981] 22R..RT135 |
21641-35510 |
US $5.68 |
||
|
21351
|
21351
21351-37040 Piston, Power[08.1980 - 12.1981] 22R..RT135 |
21351-37040 |
US $9.61 |
||
|
21611
|
21611
21611-22010 Gasket, Main Jet[09.1978 - 12.1981] 20R,22R..RT13# |
21611-22010 |
US $3.32 |
||
|
21617
|
21617
21617-30010 Gasket, Main Passage Plug[09.1978 - 12.1981] 20R,22R..RT13# |
21617-30010 |
US $3.55 |
||
|
21618
|
21618
21618-14010
Gasket, Needle Valve Seat
[08.1979 - 12.1981] 20R,22R..RT13# |
21618-14010 |
— | ||
|
21621
|
21621
21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt[09.1978 - 12.1981] 20R,22R..RT13# |
21633-24030 |
US $4.89 |
||
|
21622
|
21622
21622-37040
Gasket, Air Horn
[08.1980 - 12.1981] 22R..RT135 |
21622-37040 |
— | ||
| replacement | |||||
|
21622
|
21622
21622-71010
Gasket, Air Horn
[08.1980 - 12.1981] 22R..RT135 |
21622-71010 |
— | ||
|
21623
|
21623
21623-37040 Gasket, Body Flange[08.1980 - 12.1981] 22R..RT135 |
21623-37040 |
US $8.88 |
||
| replacement | |||||
|
21623
|
21623
21623-75080 Gasket, Body FlangeBODY FLANGE [08.1980 - 12.1981] 22R..RT135 |
21623-75080 |
US $5.39 |
||
|
21625
|
21625
21655-60200 Gasket, Level Gage[09.1978 - 12.1981] 20R,22R..RT13# |
21655-60200 |
US $9.90 |
||
|
21641
|
21641
21641-37041 Gasket(For Thermostatic Valve Cover)[08.1980 - 12.1981] 22R..RT135 |
21641-37041 |
US $4.37 |
||
|
21641A
|
21641A
21641-24030
Gasket(For Thermostatic Valve Cover No.2)
[08.1980 - 12.1981] 22R..RT135 |
21641-24030 |
— | ||
|
21667
|
21667
21667-37040
Diaphragm
[08.1980 - 12.1981] 22R..RT135 MAIN |
21667-37040 |
— | ||
| replacement | |||||
|
21667
|
21667
21667-72200
Diaphragm
[08.1980 - 12.1981] 22R..RT135 MAIN |
21667-72200 |
— | ||
|
21667
|
21667
21667-38011
Diaphragm
[08.1980 - 03.1981] 22R..RT135 SUB |
21667-38011 |
— | ||
| replacement | |||||
|
21667
|
21667
21675-35330
Diaphragm
[08.1980 - 03.1981] 22R..RT135 SUB |
21675-35330 |
— | ||
|
21667
|
21667
21667-38310
Diaphragm
[03.1981 - 12.1981] 22R..RT135 SUB |
21667-38310 |
— | ||
| replacement | |||||
|
21667
|
21667
21675-35510 Diaphragm[03.1981 - 12.1981] 22R..RT135 SUB |
21675-35510 |
US $15.04 |
||
|
21699A
|
21699A
21699-37040 Boot(For Acceleration Pump)[08.1980 - 12.1981] 22R..RT135 |
21699-37040 |
US $11.05 |
||
|
21723
|
21723
21723-37040
Spring, Idle Adjusting
[08.1980 - 12.1981] 22R..RT135 |
21723-37040 |
— | ||
|
21724
|
21724
21723-38330 Spring, Throttle Adjusting[08.1979 - 12.1981] 20R,22R..RT13# |
21723-38330 |
US $5.68 |
||
|
21726
|
21726
21726-38310 Spring, 1St Idle Adjusting[08.1980 - 12.1981] 22R..RT135 |
21726-38310 |
US $4.95 |
||
|
21734
|
21734
21734-37040 Spring, Power Piston[08.1980 - 12.1981] 22R..RT135 |
21734-37040 |
US $9.90 |
||
|
21751
|
21751
21894-37040 Union, Nipple[08.1980 - 12.1981] 22R..RT135 |
21894-37040 |
US $36.40 |
||
|
21763
|
21763
21763-34320 Pin, Float Lever[08.1980 - 12.1981] 22R..RT135 |
21763-34320 |
US $5.53 |
||
|
21781
|
21781
21781-30020 Plug, Main Passage(For Carburetor Jet)[09.1978 - 12.1981] 20R,22R..RT13# |
21781-30020 |
US $9.90 |
||
| replacement | |||||
|
21781
|
21781
21781-16510
Plug, Main Passage(For Carburetor Jet)
[09.1978 - 12.1981] 20R,22R..RT13# |
21781-16510 |
— | ||
|
21791
|
21791
21791-60010
Ring, Snap, No.1(For Carburetor Link)
[09.1978 - 12.1981] 20R,22R..RT13# |
21791-60010 |
— | ||
| replacement | |||||
|
21791
|
21791
21791-13010 Ring, Snap, No.1(For Carburetor Link)[09.1978 - 12.1981] 20R,22R..RT13# |
21791-13010 |
US $3.32 |
||
|
21811
|
21811
21811-11060 Bolt, Union Nipple[09.1978 - 12.1981] 20R,22R..RT13# |
21811-11060 |
US $9.46 |
||
|
21824
|
21824
93110-16035 Screw, Set(For 1St Idle Cam Follower Set)[08.1980 - 12.1981] 22R..RT135 |
93110-16035 |
US $0.73 |
||
|
21831
|
21831
21842-33010
Screw, Power Piston Stop
[09.1978 - 12.1981] 20R,22R..RT13# |
21842-33010 |
— | ||
|
21842
|
21842
21842-33010
Screw, Power Piston Stop
[09.1978 - 12.1981] 20R,22R..RT13# |
21842-33010 |
— | ||
|
21852
|
21852
21852-30010 Nut, Throttle Lever Set[09.1978 - 12.1981] 20R,22R..RT13# |
21852-30010 |
US $4.22 |
||
|
21881
|
21881
21881-60010 Washer, Lock(For Throttle Shaft)[09.1978 - 12.1981] 20R,22R..RT13# |
21881-60010 |
US $3.79 |
||
|
21908B
|
21908B
88031-36012
Actuator Set, Idle-Up
[08.1980 - 12.1981] 22R..RT135..USA |
88031-36012 |
— | ||
|
21934
|
21934
21062-35010
Solenoid, Throttle Valve
[08.1980 - 12.1981] 22R..RT135 |
21062-35010 |
— | ||
|
21934E
|
21934E
21655-44101 Ring, O(For Lifter Rod)[09.1978 - 12.1981] 20R,22R..RT13# |
21655-44101 |
US $7.86 |
||
|
21934F
|
21934F
21617-10010
Gasket
[09.1978 - 12.1981] 20R,22R..RT13# |
21617-10010 |
— | ||
|
2165511040
|
2165511040
21655-11040 Ring, O(For Pump Jet) |
21655-11040 |
US $5.68 |
||
|
2182115010
|
2182115010
21821-15010 Screw(For Choke Lever Adapter Set) |
21821-15010 |
US $1.75 |
||
|
2182124030
|
2182124030
21821-24030 Screw(For Vacuum Lock Diaphragm Ring Set) |
21821-24030 |
US $3.79 |
||
|
2182125010
|
2182125010
21821-25010 Screw, Coil Housing Set |
21821-25010 |
US $3.84 |
||
|
2182131140
|
2182131140
21821-31140 Screw(For 2Nd Regulator Cover Set) |
21821-31140 |
US $2.34 |
||
|
2184235010
|
2184235010
21842-35010
Screw, Set(for Carburetor Level Gage Clamp Set)
|
21842-35010 |
— | ||
|
2188538310
|
2188538310
21885-38310 New Genuine Part |
21885-38310 |
US $2.62 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
US $2.88 |
||
|
9092504005
|
9092504005
90925-04005 Jet(For Carburetor) |
90925-04005 |
US $11.01 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.03 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.08 |
||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
