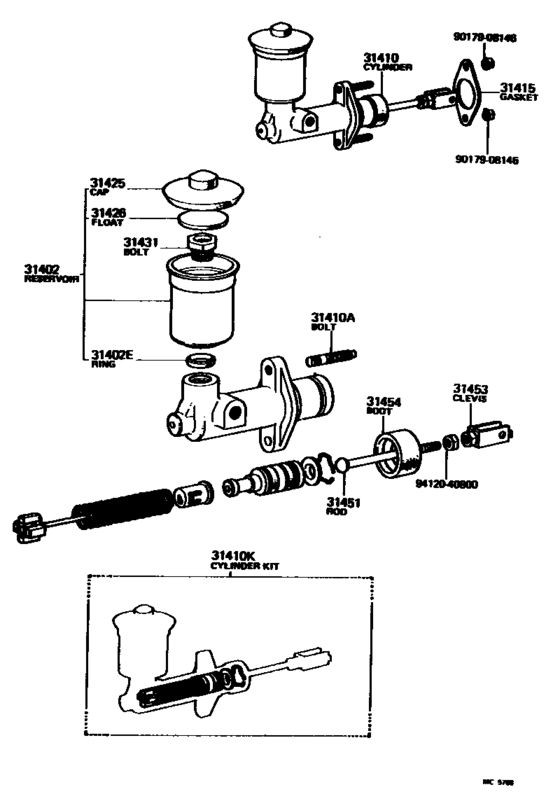

Clutch Master Cylinder ([09.1978 - ] (7809- )MTM) Diagram Toyota CORONA
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- RT135
- grade
- DLX
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- CORONA
- From
- 08.1980
- To
- 12.1981
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31402
|
31402
47202-20010 Reservoir Sub-Assy, Brake Master CylinderBRAKE MASTER CYLINDER [09.1978 - 12.1981] RT13#..MTM |
47202-20010 |
US $19.07 |
||
|
31402E
|
31402E
90562-18151
Ring(For Clutch Master Cylinder Reservoir)
[09.1978 - 12.1981] RT13#..MTM |
90562-18151 |
— | ||
|
31410
|
31410
31410-20160 Cylinder Assy, Clutch Master[09.1978 - 12.1981] RT13#..MTM |
31410-20160 |
US $195.10 |
||
| replacement | |||||
|
31410
|
31410
31410-20162 Cylinder Assy, Clutch Master[09.1978 - 12.1981] RT13#..MTM |
31410-20162 |
US $170.35 |
||
|
31410A
|
31410A
90116-08079
Bolt(For Clutch Master Cylinder Setting)
[10.1978 - 12.1981] RT13#..MTM |
90116-08079 |
— | ||
|
31410K
|
31410K
04311-12020
Cylinder Kit, Clutch Master
[09.1978 - 12.1981] RT13#..MTM |
04311-12020 |
— | ||
| replacement | |||||
|
31410K
|
31410K
04311-12023 Cylinder Kit, Clutch Master[09.1978 - 12.1981] RT13#..MTM |
04311-12023 |
US $35.57 |
||
|
31415
|
31415
31415-14010 Gasket, Clutch Master CylinderCLUTCH MASTER CYLINDER [09.1978 - 12.1981] RT13#..MTM |
31415-14010 |
US $2.33 |
||
|
31425
|
31425
47230-20040 Cap, Clutch Master Cylinder Reservoir Filler[09.1978 - 12.1981] RT13#..MTM |
47230-20040 |
from US $9.36 |
||
|
31426
|
31426
31426-30011
Float, Clutch Master Cylinder Reservoir
[09.1978 - 12.1981] RT13#..MTM |
31426-30011 |
— | ||
|
31431
|
31431
47231-20010 Bolt, Clutch Master Cylinder Reservoir Set[09.1978 - 12.1981] RT13#..MTM |
47231-20010 |
US $4.08 |
||
|
31451
|
31451
31451-14010 Rod, Clutch Master Cylinder Push[09.1978 - 12.1981] RT13#..MTM |
31451-14010 |
US $11.07 |
||
|
31453
|
31453
31453-22010 Clevis, Clutch Master Cylinder Push Rod[09.1978 - 12.1981] RT13#..MTM |
31453-22010 |
US $6.55 |
||
| replacement | |||||
|
31453
|
31453
31453-35010 Clevis, Clutch Master Cylinder Push Rod[09.1978 - 12.1981] RT13#..MTM |
31453-35010 |
US $6.64 |
||
|
31454
|
31454
31454-14010 Boot, Clutch Master Cylinder[09.1978 - 12.1981] RT13#..MTM |
31454-14010 |
US $4.19 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
