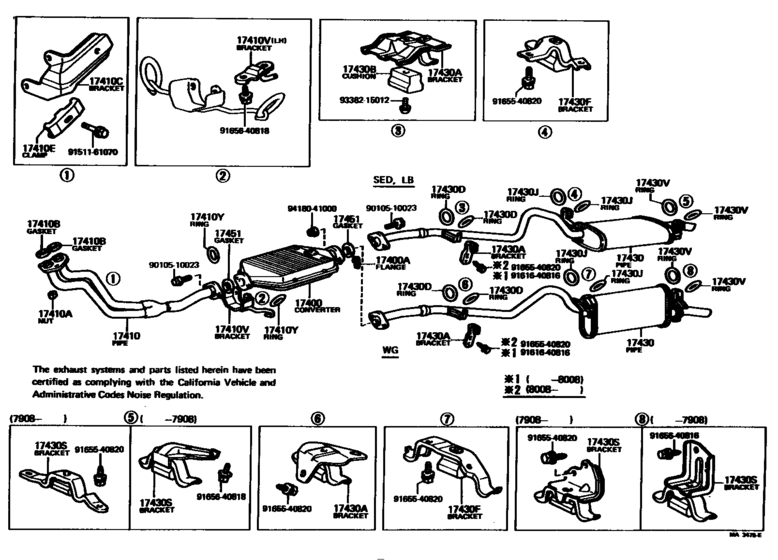

Exhaust Pipe ([09.1978 - ] (7809- )20R,22R..USA ; (8008- )22R..CND) Diagram Toyota CORONA
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- RT135
- grade
- DLX
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- CORONA
- From
- 08.1980
- To
- 12.1981
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
17040-35010 Converter Assy, W/catalystW/CATALYST [08.1980 - 12.1981] 22R..RT135..USA |
17040-35010 |
US $1,300.21 |
||
|
17400A
|
17400A
18491-34020 Flange, Thermosenser InletTHERMOSENSER INLET [08.1980 - 12.1981] 22R..RT135..USA |
18491-34020 |
US $18.20 |
||
|
17410
|
17410
17410-35020
Pipe Assy, Exhaust, Front
[08.1980 - 12.1981] 22R..RT135..USA |
17410-35020 |
— | ||
|
17410A
|
17410A
90179-10028 Nut, Exhaust Pipe Set Stud Bolt[11.1979 - 12.1981] 20R,22R..RT13# |
90179-10028 |
US $5.12 |
||
|
17410B
|
17410B
90917-06001
Gasket(For Manifold Extension)
[08.1980 - 12.1981] 22R..RT135 |
90917-06001 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06038 Gasket, Exhaust Pipe[08.1980 - 12.1981] 22R..RT135 |
90917-06038 |
from US $2.34 |
||
|
17410C
|
17410C
17571-35010 Bracket, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [08.1980 - 12.1981] 22R..RT135 |
17571-35010 |
US $22.28 |
||
|
17410E
|
17410E
90917-04037 Clamp No.1, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [08.1980 - 12.1981] 22R..RT135 |
90917-04037 |
US $8.59 |
||
|
17410V
|
17410V
17503-35010 Bracket, Exhaust Pipe Front (For Rear)EXHAUST PIPE FRONT (FOR REAR) [08.1980 - 12.1981] 22R..RT135..USA CTR |
17503-35010 |
US $37.56 |
||
|
17410V
|
17410V
17505-26011 Bracket, Exhaust Pipe Front (For Rear)EXHAUST PIPE FRONT (FOR REAR) [08.1980 - 12.1981] 22R..RT135 LH |
17505-26011 |
US $20.68 |
||
|
17410Y
|
17410Y
90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear)[08.1980 - 12.1981] 22R..RT135 |
90301-36001 |
from US $5.05 |
||
|
17430
|
17430
17430-35020 Pipe Assy, Exhaust, TailEXHAUST, TAIL [08.1980 - 12.1981] 22R..RT135..LB,SED |
17430-35020 |
US $547.46 |
||
|
17430A
|
17430A
17506-26050 Bracket, Exhaust Pipe, Center[09.1978 - 12.1981] 20R,22R..RT13#..LB,SED FLOOR PAN SIDE |
17506-26050 |
US $22.86 |
||
|
17430A
|
17430A
17561-26080 Bracket, Exhaust Tail Pipe(For Front)[09.1978 - 12.1981] 20R,22R..RT13# PIPE SIDE |
17561-26080 |
US $9.61 |
||
|
17430B
|
17430B
17591-36010
Cushion, Exhaust Pipe Front (For Rear)
[09.1978 - 12.1981] 20R,22R..RT13#..LB,SED |
17591-36010 |
— | ||
| replacements | |||||
|
17430B
|
17430B
17591-36011 Cushion, Exhaust Pipe Center, Center[09.1978 - 12.1981] 20R,22R..RT13#..LB,SED |
17591-36011 |
US $17.41 |
||
|
17430B
|
17430B
90159-50207 New Genuine Part[09.1978 - 12.1981] 20R,22R..RT13#..LB,SED |
90159-50207 |
US $0.92 |
||
|
17430D
|
17430D
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[09.1978 - 12.1981] 20R,22R..RT13# |
90301-34207 |
US $9.92 |
||
|
17430F
|
17430F
17507-26050
Bracket, Exhaust Tail Pipe(For Center)
[09.1978 - 12.1981] 20R,22R..RT13#..LB,SED |
17507-26050 |
— | ||
|
17430J
|
17430J
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[09.1978 - 12.1981] 20R,22R..RT13# |
90301-34207 |
US $9.92 |
||
|
17430S
|
17430S
17508-38040 Bracket, Exhaust Tail Pipe (For Rear)[08.1979 - 12.1981] 20R,22R..RT13#..LB,SED |
17508-38040 |
US $24.32 |
||
|
17430V
|
17430V
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[09.1978 - 12.1981] 20R,22R..RT13# |
90301-34207 |
US $9.92 |
||
|
17451
|
17451
90917-06012
Gasket, Exhaust Pipe
[08.1980 - 12.1981] 22R..RT135 RR |
90917-06012 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[08.1980 - 12.1981] 22R..RT135 RR |
90917-06045 |
from US $1.70 |
||
|
17451
|
17451
90917-06023
Gasket, Exhaust Pipe
[08.1980 - 12.1981] 22R..RT135 FR |
90917-06023 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06041 Gasket, Exhaust Pipe[08.1980 - 12.1981] 22R..RT135 FR |
90917-06041 |
from US $6.20 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9151161070
|
9151161070
91511-61070
Bolt Or Ring, Exhaust Pipe Front (For Front)
|
91511-61070 |
— | ||
| replacement | |||||
|
9151161070
|
9151161070
91512-61070 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91512-61070 |
US $4.16 |
||
|
9161640816
|
9161640816
91616-40816
Screw Or Bolt(for Valve Rocker Shaft Lock)
|
91616-40816 |
— | ||
| replacement | |||||
|
9161640816
|
9161640816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9165640816
|
9165640816
91656-40816
New Genuine Part
|
91656-40816 |
— | ||
| replacements | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9165640816
|
9165640816
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
9165640818
|
9165640818
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
91656-40818 |
— | ||
| replacement | |||||
|
9165640818
|
9165640818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9338215012
|
9338215012
93382-15012 New Genuine Part |
93382-15012 |
US $1.12 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.42 |
||
