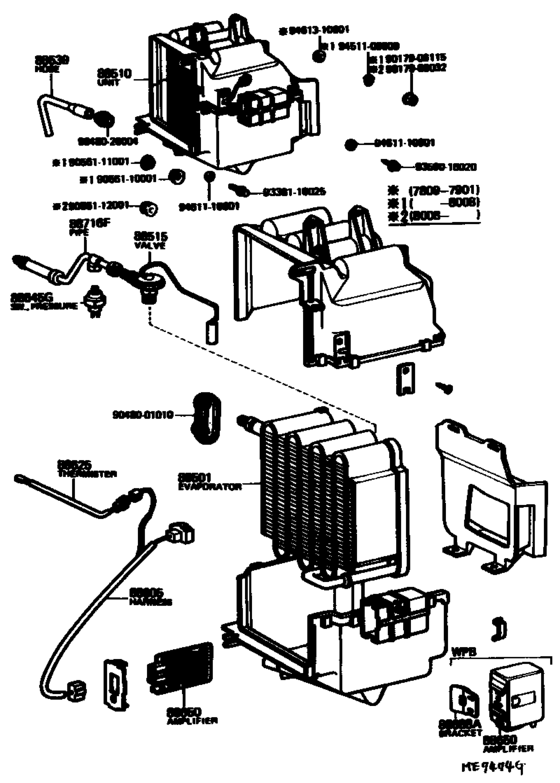

Heating & Air Conditioning - Cooler Unit ([09.1978 - ] (7809- )) Diagram Toyota CORONA
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- RT135
- grade
- DLX
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- CORONA
- From
- 08.1980
- To
- 12.1981
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88501
|
88501
88501-20150
Evaporator Sub-Assy, Cooler, No.1
[08.1979 - 12.1981] RT13# |
88501-20150 |
— | ||
|
88510
|
88510
88510-20260
Unit Assy, Cooler
[08.1979 - 12.1981] RT13#..LPB |
88510-20260 |
— | ||
|
88515
|
88515
88515-20050
Valve, Cooler Expansion
[04.1980 - 12.1981] RT13# |
88515-20050 |
— | ||
| replacement | |||||
|
88515
|
88515
88515-22170
Valve, Cooler Expansion
[04.1980 - 12.1981] RT13# |
88515-22170 |
— | ||
|
88539
|
88539
88539-20080
Hose, Cooler Unit Drain, No.1
[09.1978 - 12.1981] RT13# |
88539-20080 |
— | ||
|
88605
|
88605
88605-20131
Harness Sub-Assy, Cooler Wiring, No.1
[08.1980 - 12.1981] RT135 |
88605-20131 |
— | ||
|
88625
|
88625
88625-20060
Thermistor, Cooler, No.1
[09.1978 - 12.1981] RT13# |
88625-20060 |
— | ||
| replacement | |||||
|
88625
|
88625
88625-87001
Thermistor, Cooler, No.1
[09.1978 - 12.1981] RT13# |
88625-87001 |
— | ||
|
88645G
|
88645G
88645-22010
Switch, Pressure
[09.1978 - 12.1981] RT13# |
88645-22010 |
— | ||
| replacement | |||||
|
88645G
|
88645G
88645-30250
Switch, Pressure
[09.1978 - 12.1981] RT13# |
88645-30250 |
— | ||
|
88645G
|
88645G
88645-30250
Switch, Pressure
[11.1981 - 12.1981] RT135 |
88645-30250 |
— | ||
|
88650
|
88650
88650-14070
Amplifier Assy, Cooler Stabilizer
[10.1979 - 12.1981] RT13#..LPB |
88650-14070 |
— | ||
|
88716F
|
88716F
88716-20510
Pipe, Cooler Refrigerant Liquid, F
[04.1980 - 12.1981] RT13# |
88716-20510 |
— | ||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9048001010
|
9048001010
90480-01010
New Genuine Part
|
90480-01010 |
— | ||
|
9048026004
|
9048026004
90480-26004 Grommet, Heater Hose |
90480-26004 |
US $1.40 |
||
|
9056110001
|
9056110001
90561-10001
New Genuine Part
|
90561-10001 |
— | ||
|
9056111001
|
9056111001
90561-11001
New Genuine Part
|
90561-11001 |
— | ||
|
9056112001
|
9056112001
90561-12001
New Genuine Part
|
90561-12001 |
— | ||
|
9338116025
|
9338116025
93381-16025 New Genuine Part |
93381-16025 |
US $1.75 |
||
|
9359016020
|
9359016020
93590-16020 New Genuine Part |
93590-16020 |
US $1.02 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9461110601
|
9461110601
94611-10601 WASHER |
94611-10601 |
from US $0.52 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
