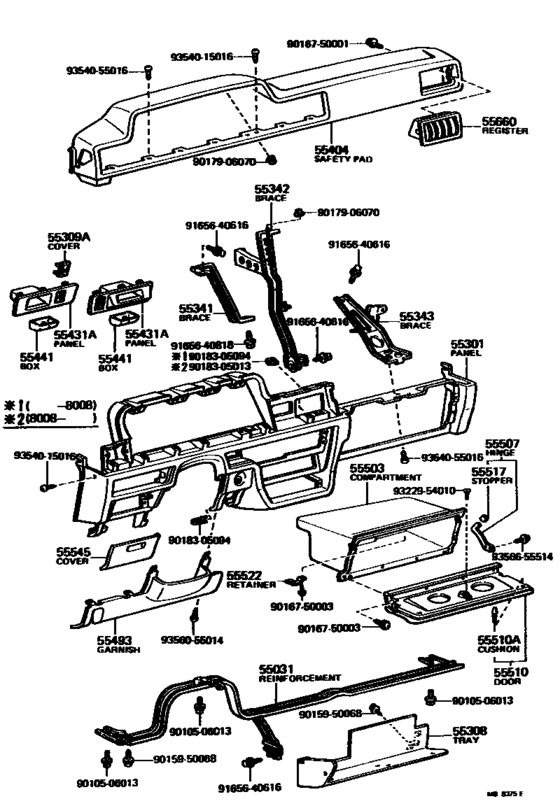

Instrument Panel & Glove Compartment ([09.1978 - ] (7809- )LPB) Diagram Toyota CORONA
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- RT135
- grade
- DLX
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- CORONA
- From
- 08.1980
- To
- 12.1981
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55031
|
55031
55305-20080
Reinforcement, Instrument Panel, No.1
[09.1978 - 12.1981] RT13#..LPB |
55305-20080 |
— | ||
|
55301
|
55301
55311-20111-01
Panel Sub-Assy, Instrument
[07.1980 - 12.1981] RT13# BLACK,BLACK |
55311-20111-01 |
— | ||
|
55301
|
55301
55311-20111-02
Panel Sub-Assy, Instrument
[07.1980 - 12.1981] RT13# DARK WINE,RED/MAROON |
55311-20111-02 |
— | ||
|
55301
|
55301
55311-20111-06
Panel Sub-Assy, Instrument
[08.1980 - 12.1981] RT135 LIGHT BROWN,BROWN |
55311-20111-06 |
— | ||
|
55308
|
55308
55601-20020-01
Tray Sub-Assy, Instrument Panel Under
[09.1978 - 12.1981] RT13#..LPB BLACK,BLACK |
55601-20020-01 |
— | ||
|
55308
|
55308
55601-20020-02
Tray Sub-Assy, Instrument Panel Under
[09.1978 - 12.1981] RT13#..LPB DARK WINE,RED/MAROON |
55601-20020-02 |
— | ||
|
55308
|
55308
55601-20020-06 Tray Sub-Assy, Instrument Panel UnderINSTRUMENT PANEL UNDER [08.1980 - 12.1981] RT135 LIGHT BROWN,BROWN |
55601-20020-06 |
US $31.01 |
||
|
55309A
|
55309A
55384-20011 Cover, Base Switch Hole, No.1BASE SWITCH HOLE, NO.1 [09.1978 - 12.1981] RT13#..LPB |
55384-20011 |
US $5.82 |
||
| replacement | |||||
|
55309A
|
55309A
55384-20011-01 Cover, Base Switch Hole, No.1[09.1978 - 12.1981] RT13#..LPB |
55384-20011-01 |
US $5.24 |
||
|
55341
|
55341
55341-20060
Brace, Instrument Panel, No.1
[09.1978 - 12.1981] RT13#..LPB |
55341-20060 |
— | ||
|
55342
|
55342
55307-20040
Brace, Instrument Panel, No.2
[09.1978 - 12.1981] RT13#..LPB |
55307-20040 |
— | ||
|
55343
|
55343
55308-20110
Brace, Instrument Panel, No.3
[09.1978 - 12.1981] RT13#..LPB |
55308-20110 |
— | ||
|
55404
|
55404
55401-20390-01
Safety Pad Sub-Assy, Instrument Panel, Upper
[08.1980 - 12.1981] RT135 BLACK,BLACK |
55401-20390-01 |
— | ||
|
55404
|
55404
55401-20390-02
Safety Pad Sub-Assy, Instrument Panel, Upper
[08.1980 - 12.1981] RT135 DARK WINE,RED/MAROON |
55401-20390-02 |
— | ||
|
55404
|
55404
55401-20390-06 Safety Pad Sub-Assy, Instrument Panel, UpperINSTRUMENT PANEL, UPPER [08.1980 - 12.1981] RT135 LIGHT BROWN,BROWN |
55401-20390-06 |
US $630.45 |
||
|
55431A
|
55431A
55431-20140-01
Panel, Instrument Panel Finish
[08.1980 - 12.1981] RT135..DLX BLACK,BLACK |
55431-20140-01 |
— | ||
|
55431A
|
55431A
55431-20140-02 Panel, Instrument Panel FinishINSTRUMENT PANEL FINISH [08.1980 - 12.1981] RT135..DLX DARK WINE,RED/MAROON |
55431-20140-02 |
US $42.08 |
||
| replacement | |||||
|
55431A
|
55431A
55431-20140-01
Panel, Instrument Panel Finish
[08.1980 - 12.1981] RT135..DLX DARK WINE,RED/MAROON |
55431-20140-01 |
— | ||
|
55431A
|
55431A
55431-20140-06 Panel, Instrument Panel FinishINSTRUMENT PANEL FINISH [08.1980 - 12.1981] RT135..DLX DARK BROWN,BROWN |
55431-20140-06 |
US $42.08 |
||
| replacement | |||||
|
55431A
|
55431A
55431-20140-01
Panel, Instrument Panel Finish
[08.1980 - 12.1981] RT135..DLX DARK BROWN,BROWN |
55431-20140-01 |
— | ||
|
55441
|
55441
55441-20120 Box, Instrument PanelINSTRUMENT PANEL [09.1978 - 12.1981] RT13#..LPB |
55441-20120 |
US $11.79 |
||
|
55493
|
55493
55432-20091-01
Garnish Or Safety Pad, Lower, Lh
[06.1980 - 12.1981] RT13#..3FC,4F,4FC,5F BLACK,BLACK |
55432-20091-01 |
— | ||
|
55493
|
55493
55432-20091-02 Garnish Or Safety Pad, Lower, LhLOWER, LH [06.1980 - 12.1981] RT13#..3FC,4F,4FC,5F DARK WINE,RED/MAROON |
55432-20091-02 |
US $36.40 |
||
|
55493
|
55493
55432-20091-06
Garnish Or Safety Pad, Lower, Lh
[08.1980 - 12.1981] RT135 LIGHT BROWN,BROWN |
55432-20091-06 |
— | ||
|
55503
|
55503
55581-20040
Compartment Sub-Assy, Glove
[09.1978 - 12.1981] RT13#..LPB |
55581-20040 |
— | ||
|
55507
|
55507
55556-20030 Arm, Glove Compartment Door CheckGLOVE COMPARTMENT DOOR [09.1978 - 12.1981] RT13#..LPB |
55556-20030 |
US $13.25 |
||
|
55510
|
55510
55550-20040-01
Door Assy, Glove Compartment
[09.1978 - 12.1981] RT13#..LPB BLACK,BLACK |
55550-20040-01 |
— | ||
|
55510
|
55510
55550-20040-02
Door Assy, Glove Compartment
[09.1978 - 12.1981] RT13#..LPB DARK WINE,RED/MAROON |
55550-20040-02 |
— | ||
|
55510
|
55510
55550-20040-06
Door Assy, Glove Compartment
[08.1980 - 12.1981] RT135 LIGHT BROWN,BROWN |
55550-20040-06 |
— | ||
|
55510A
|
55510A
90541-03015 Cushion, Instrument Panel Box[09.1978 - 12.1981] RT13# |
90541-03015 |
from US $1.62 |
||
|
55517
|
55517
55517-14010
Stopper, Glove Compartment Door Arm
[09.1978 - 12.1981] RT13# |
55517-14010 |
— | ||
|
55522
|
55522
55561-12010 Striker Sub-Assy, Glove Compartment Door Lock[09.1978 - 12.1981] RT13#..LPB |
55561-12010 |
US $4.22 |
||
|
55545
|
55545
55540-20050-01 Cover, Fuse Box OpeningFUSE BOX OPENING [08.1980 - 12.1981] RT135 BLACK,BLACK |
55540-20050-01 |
US $38.88 |
||
|
55545
|
55545
55540-20050-02 Cover, Fuse Box OpeningFUSE BOX OPENING [08.1980 - 12.1981] RT135 DARK WINE,RED/MAROON |
55540-20050-02 |
US $38.88 |
||
| replacement | |||||
|
55545
|
55545
55540-20050-01 Cover, Fuse Box OpeningFUSE BOX OPENING [08.1980 - 12.1981] RT135 DARK WINE,RED/MAROON |
55540-20050-01 |
US $38.88 |
||
|
55545
|
55545
55540-20050-06 Cover, Fuse Box OpeningFUSE BOX OPENING [08.1980 - 12.1981] RT135 LIGHT BROWN,BROWN |
55540-20050-06 |
US $38.88 |
||
| replacement | |||||
|
55545
|
55545
55540-20050-01 Cover, Fuse Box OpeningFUSE BOX OPENING [08.1980 - 12.1981] RT135 LIGHT BROWN,BROWN |
55540-20050-01 |
US $38.88 |
||
|
55660
|
55660
55650-20060-01 Register Assy, Instrument Panel, No.2INSTRUMENT PANEL, NO.2 [08.1980 - 12.1981] RT135 BLACK,BLACK |
55650-20060-01 |
US $62.17 |
||
| replacement | |||||
|
55660
|
55660
55650-20010
Register Assy, Instrument Panel, No.2
[08.1980 - 12.1981] RT135 BLACK,BLACK |
55650-20010 |
— | ||
|
55660
|
55660
55650-20060-02
Register Assy, Instrument Panel, No.2
[08.1980 - 12.1981] RT135 DARK WINE,RED/MAROON |
55650-20060-02 |
— | ||
| replacement | |||||
|
55660
|
55660
55650-20010
Register Assy, Instrument Panel, No.2
[08.1980 - 12.1981] RT135 DARK WINE,RED/MAROON |
55650-20010 |
— | ||
|
55660
|
55660
55650-20060-06
Register Assy, Instrument Panel, No.2
[08.1980 - 12.1981] RT135 DARK BROWN,BROWN |
55650-20060-06 |
— | ||
| replacement | |||||
|
55660
|
55660
55650-20010
Register Assy, Instrument Panel, No.2
[08.1980 - 12.1981] RT135 DARK BROWN,BROWN |
55650-20010 |
— | ||
|
9010506013
|
9010506013
90105-06013 New Genuine Part |
90105-06013 |
US $2.48 |
||
|
9015950068
|
9015950068
90159-50068 SCREW |
90159-50068 |
US $1.12 |
||
|
9016750001
|
9016750001
90167-50001 New Genuine Part |
90167-50001 |
US $1.46 |
||
| replacement | |||||
|
9016750001
|
9016750001
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
|
9016750003
|
9016750003
90167-50003 New Genuine Part |
90167-50003 |
US $1.75 |
||
| replacement | |||||
|
9016750003
|
9016750003
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9018305013
|
9018305013
90183-05013 New Genuine Part |
90183-05013 |
US $1.89 |
||
| replacement | |||||
|
9018305013
|
9018305013
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9165640818
|
9165640818
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
91656-40818 |
— | ||
| replacement | |||||
|
9165640818
|
9165640818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9322954010
|
9322954010
93229-54010 New Genuine Part |
93229-54010 |
US $1.46 |
||
|
9354015016
|
9354015016
93540-15016 New Genuine Part |
93540-15016 |
US $0.87 |
||
|
9354055016
|
9354055016
93540-55016 SCREW |
93540-55016 |
US $1.12 |
||
|
9356055014
|
9356055014
93560-55014 SCREW |
93560-55014 |
from US $0.70 |
||
|
9356655514
|
9356655514
93566-55514 New Genuine Part |
93566-55514 |
US $1.75 |
||
| replacement | |||||
|
9356655514
|
9356655514
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
