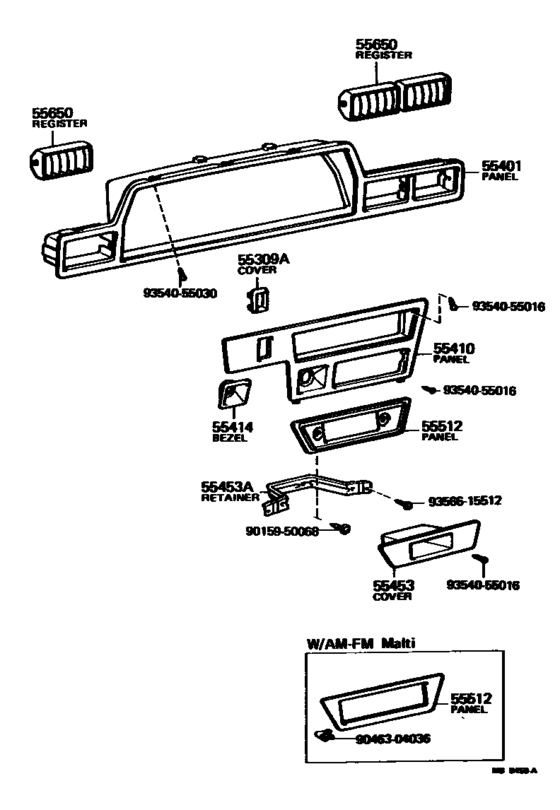

Instrument Panel & Glove Compartment ([08.1980 - ] (8008- )) Diagram Toyota CORONA
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- RT135
- grade
- DLX
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- CORONA
- From
- 08.1980
- To
- 12.1981
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55309A
|
55309A
55384-20011 Cover, Base Switch Hole, No.1BASE SWITCH HOLE, NO.1 [09.1978 - 12.1981] RT13#..LPB |
55384-20011 |
US $5.82 |
||
| replacement | |||||
|
55309A
|
55309A
55384-20011-01 Cover, Base Switch Hole, No.1[09.1978 - 12.1981] RT13#..LPB |
55384-20011-01 |
US $5.24 |
||
|
55401
|
55401
55410-20480-01
Panel Sub-Assy, Instrument Cluster Finish
[08.1980 - 12.1981] RT135 BLACK,BLACK |
55410-20480-01 |
— | ||
|
55401
|
55401
55410-20480-02 Panel Sub-Assy, Instrument Cluster FinishINSTRUMENT CLUSTER FINISH [08.1980 - 12.1981] RT135 DARK WINE,RED/MAROON |
55410-20480-02 |
US $260.62 |
||
| replacement | |||||
|
55401
|
55401
55410-20480-01
Panel Sub-Assy, Instrument Cluster Finish
[08.1980 - 12.1981] RT135 DARK WINE,RED/MAROON |
55410-20480-01 |
— | ||
|
55401
|
55401
55410-20480-06 Panel Sub-Assy, Instrument Cluster FinishINSTRUMENT CLUSTER FINISH [08.1980 - 12.1981] RT135 DARK BROWN,BROWN |
55410-20480-06 |
US $260.62 |
||
| replacement | |||||
|
55401
|
55401
55410-20480-01
Panel Sub-Assy, Instrument Cluster Finish
[08.1980 - 12.1981] RT135 DARK BROWN,BROWN |
55410-20480-01 |
— | ||
|
55410
|
55410
55412-20170-01 Panel Assy, Instrument Cluster Finish, No.2INSTRUMENT CLUSTER FINISH, NO.2 [08.1980 - 12.1981] RT135..DLX BLACK,BLACK |
55412-20170-01 |
US $90.27 |
||
|
55410
|
55410
55412-20170-02 Panel Assy, Instrument Cluster Finish, No.2INSTRUMENT CLUSTER FINISH, NO.2 [08.1980 - 12.1981] RT135..DLX DARK WINE,RED/MAROON |
55412-20170-02 |
US $90.27 |
||
| replacement | |||||
|
55410
|
55410
55412-20170-01 Panel Assy, Instrument Cluster Finish, No.2INSTRUMENT CLUSTER FINISH, NO.2 [08.1980 - 12.1981] RT135..DLX DARK WINE,RED/MAROON |
55412-20170-01 |
US $90.27 |
||
|
55410
|
55410
55412-20170-06 Panel Assy, Instrument Cluster Finish, No.2INSTRUMENT CLUSTER FINISH, NO.2 [08.1980 - 12.1981] RT135..DLX DARK BROWN,BROWN |
55412-20170-06 |
US $90.27 |
||
| replacement | |||||
|
55410
|
55410
55412-20170-01 Panel Assy, Instrument Cluster Finish, No.2INSTRUMENT CLUSTER FINISH, NO.2 [08.1980 - 12.1981] RT135..DLX DARK BROWN,BROWN |
55412-20170-01 |
US $90.27 |
||
|
55414
|
55414
55477-20040
Bezel, Cigar Lighter Hole
[09.1978 - 12.1981] RT13# |
55477-20040 |
— | ||
|
55453
|
55453
55522-20030 Cover, Radio Tuner OpeningRADIO TUNER OPENING [09.1978 - 12.1981] RT13#..LPB |
55522-20030 |
US $20.82 |
||
|
55453A
|
55453A
55417-20030
Retainer, Radio Tuner Opening, No.1
[09.1978 - 12.1981] RT13#..LPB |
55417-20030 |
— | ||
|
55512
|
55512
86220-20020-01 Plate, Radio Tuner Finish[08.1980 - 12.1981] RT135 W/AM-FM MALTI,BLACK,BLACK |
86220-20020-01 |
US $44.26 |
||
|
55512
|
55512
86220-20020-02
Plate, Radio Tuner Finish
[08.1980 - 12.1981] RT135 W/AM-FM MALTI,DARK WINE,RED/MAROON |
86220-20020-02 |
— | ||
|
55512
|
55512
86220-20020-06 Plate, Radio Tuner Finish[08.1980 - 12.1981] RT135 W/AM-FM MALTI,BROWN,BROWN |
86220-20020-06 |
US $44.26 |
||
|
55512
|
55512
86221-20030-01
Plate, Radio Tuner Finish
[08.1980 - 12.1981] RT135 BLACK,BLACK |
86221-20030-01 |
— | ||
|
55512
|
55512
86221-20030-02
Plate, Radio Tuner Finish
[08.1980 - 12.1981] RT135 DARK WINE,RED/MAROON |
86221-20030-02 |
— | ||
|
55512
|
55512
86221-20030-06
Plate, Radio Tuner Finish
[08.1980 - 12.1981] RT135 BROWN,BROWN |
86221-20030-06 |
— | ||
|
55650
|
55650
55061-20020 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [09.1978 - 12.1981] RT13# |
55061-20020 |
US $22.28 |
||
|
9015950068
|
9015950068
90159-50068 SCREW |
90159-50068 |
US $1.12 |
||
|
9046304036
|
9046304036
90463-04036
New Genuine Part
|
90463-04036 |
— | ||
|
9354055016
|
9354055016
93540-55016 SCREW |
93540-55016 |
US $1.12 |
||
|
9354055030
|
9354055030
93540-55030 New Genuine Part |
93540-55030 |
US $0.87 |
||
|
9356615512
|
9356615512
93566-15512
New Genuine Part
|
93566-15512 |
— | ||
| replacement | |||||
|
9356615512
|
9356615512
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
