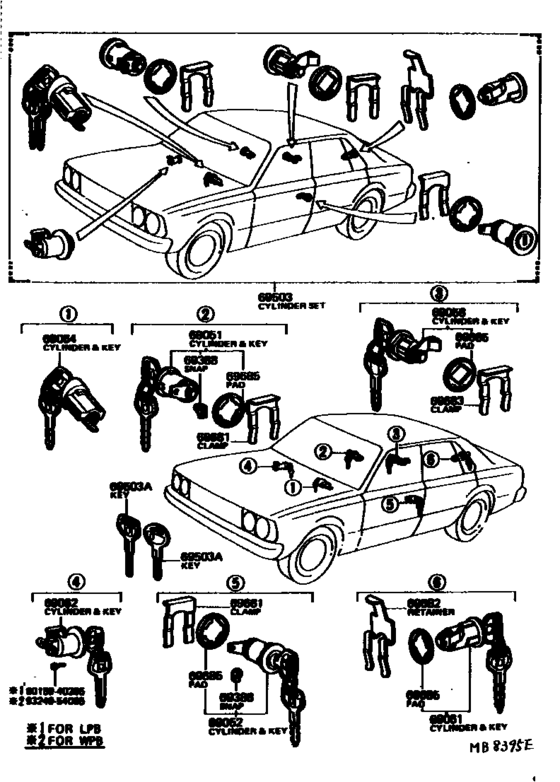

Lock Cylinder Set ([09.1978 - ] (7809- )SED) Diagram Toyota CORONA
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- RT135
- grade
- DLX
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- CORONA
- From
- 08.1980
- To
- 12.1981
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-29256 Cylinder & Key Set, Door Lock, RhDOOR LOCK, RH [03.1980 - 12.1981] RT13#..LB,SED |
69051-29256 |
US $57.51 |
||
| replacement | |||||
|
69051
|
69051
69051-29306
Cylinder & Key Set, Door Lock, Rh
[03.1980 - 12.1981] RT13#..LB,SED |
69051-29306 |
— | ||
|
69052
|
69052
69052-29256 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [03.1980 - 12.1981] RT13# |
69052-29256 |
US $52.12 |
||
| replacement | |||||
|
69052
|
69052
69052-29306
Cylinder & Key Set, Door Lock, Lh
[03.1980 - 12.1981] RT13# |
69052-29306 |
— | ||
|
69058
|
69058
69058-29045
Cylinder & Key Set, Fuel Filler Lid
[09.1978 - 12.1981] RT13#..(LB,SED)..LPB |
69058-29045 |
— | ||
|
69061
|
69061
69055-29075
Cylinder & Key Set, Luggage Lock
[09.1978 - 12.1981] RT13#..SED..LPB |
69055-29075 |
— | ||
|
69062
|
69062
69056-20020 Cylinder & Key Set, Glove Compartment Lock[09.1978 - 12.1981] RT13#..(LB,SED)..LPB |
69056-20020 |
US $54.31 |
||
| replacement | |||||
|
69062
|
69062
69056-90P01 Cylinder & Key Set, Glove Compartment Lock[09.1978 - 12.1981] RT13#..(LB,SED)..LPB |
69056-90P01 |
US $64.21 |
||
|
69064
|
69064
69057-20020 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [09.1978 - 12.1981] RT13#..(LB,SED)..LPB |
69057-20020 |
US $87.36 |
||
| replacement | |||||
|
69064
|
69064
69057-90A05
Cylinder & Key Set, Ignition Switch Lock
[09.1978 - 12.1981] RT13#..(LB,SED)..LPB |
69057-90A05 |
— | ||
|
69388
|
69388
69377-30020
Snap, Door Lock Control Rod
[09.1978 - 12.1981] RT13# FR DOOR |
69377-30020 |
— | ||
|
69503
|
69503
69005-29305
Cylinder Set, Lock
[09.1978 - 12.1981] RT13#..SED..LPB |
69005-29305 |
— | ||
|
69503A
|
69503A
90999-00066
Key, Blank
[09.1978 - 12.1981] RT13#..(LB,SED)..LPB MASTER KEY,MASTER KEY |
90999-00066 |
— | ||
| replacement | |||||
|
69503A
|
69503A
90999-00085 Key, Blank[09.1978 - 12.1981] RT13#..(LB,SED)..LPB MASTER KEY,MASTER KEY |
90999-00085 |
US $8.37 |
||
|
69503A
|
69503A
90999-00068
Key, Blank
[09.1978 - 12.1981] RT13#..(LB,SED)..LPB SUB KEY,SUB KEY |
90999-00068 |
— | ||
| replacement | |||||
|
69503A
|
69503A
90999-00094
Key, Blank
[09.1978 - 12.1981] RT13#..(LB,SED)..LPB SUB KEY,SUB KEY |
90999-00094 |
— | ||
|
69681
|
69681
69681-20040 Retainer, Back Door Lock Cylinder[09.1978 - 12.1981] RT13# |
69681-20040 |
from US $2.05 |
||
|
69682
|
69682
69561-20010 Retainer, Lock CylinderLOCK CYLINDER [09.1978 - 12.1981] RT13#..SED |
69561-20010 |
US $4.22 |
||
|
69683
|
69683
69581-14010
Retainer, Fuel Filler Lid Cylinder
[09.1978 - 12.1981] RT13#..LB,SED |
69581-14010 |
— | ||
|
69685
|
69685
69513-12020
Pad, Fuel Filler Lid Lock Cylinder
[03.1980 - 12.1981] RT13# FR DOOR |
69513-12020 |
— | ||
|
69685
|
69685
69513-14010
Pad, Fuel Filler Lid Cylinder
[09.1978 - 12.1981] RT13#..LB,SED FUEL DOOR |
69513-14010 |
— | ||
|
69685
|
69685
69685-12010 Pad, Fuel Filler Lid Lock Cylinder[03.1980 - 12.1981] RT13#..LB,SED LUGGAGE OR BACK DOOR |
69685-12010 |
from US $1.37 |
||
|
9015940205
|
9015940205
90159-40205 New Genuine Part |
90159-40205 |
US $1.46 |
||
|
9324954005
|
9324954005
93249-54005 New Genuine Part |
93249-54005 |
US $1.60 |
||
