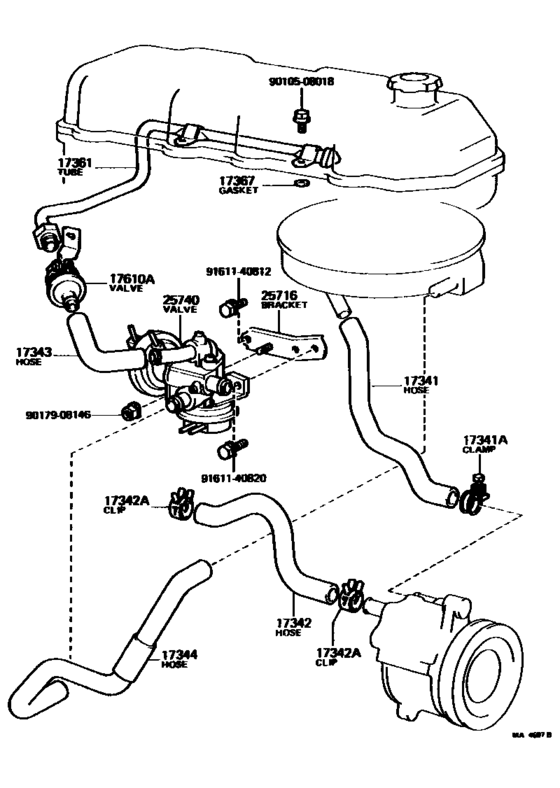

Manifold Air Injection System ([08.1980 - ] (8008- )22R..USA) Diagram Toyota CORONA
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- RT135
- grade
- DLX
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- CORONA
- From
- 08.1980
- To
- 12.1981
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341
|
17341
17341-35010 Hose, No.1(For Air Injection System)NO.1(FOR AIR INJECTION SYSTEM) [08.1980 - 12.1981] 22R..RT135..USA |
17341-35010 |
US $61.88 |
||
|
17341A
|
17341A
96111-10330 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1980 - 12.1981] 22R..RT135..USA |
96111-10330 |
US $2.08 |
||
|
17342
|
17342
17342-35010
Hose, No.2(For Air Injection System)
[08.1980 - 12.1981] 22R..RT135..USA |
17342-35010 |
— | ||
|
17342A
|
17342A
90467-28003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[08.1980 - 12.1981] 22R..RT135..USA |
90467-28003 |
— | ||
| replacement | |||||
|
17342A
|
17342A
90467-28007 Clip Or Clamp(For Ventilation Hose)[08.1980 - 12.1981] 22R..RT135..USA |
90467-28007 |
from US $3.20 |
||
|
17343
|
17343
17343-35010
Hose, No.3(For Air Injection System)
[08.1980 - 12.1981] 22R..RT135..USA |
17343-35010 |
— | ||
|
17344
|
17344
17344-35010 Hose, No.4(For Air Injection System)NO.4(FOR AIR INJECTION SYSTEM) [08.1980 - 12.1981] 22R..RT135..USA |
17344-35010 |
US $49.07 |
||
|
17361
|
17361
17360-38020
Tube, Air
[08.1980 - 12.1981] 22R..RT135..USA |
17360-38020 |
— | ||
|
17367
|
17367
17376-38011 Gasket(For Exhaust Manifold Plate)AIR TUBE [08.1980 - 12.1981] 22R..RT135..USA |
17376-38011 |
US $3.64 |
||
| replacement | |||||
|
17367
|
17367
17376-38012
Gasket(For Exhaust Manifold Plate)
[08.1980 - 12.1981] 22R..RT135..USA |
17376-38012 |
— | ||
|
17610A
|
17610A
90917-10028
Valve, Check(For Air Injection System)
[08.1980 - 12.1981] 22R..RT135..USA |
90917-10028 |
— | ||
|
25716
|
25716
25716-35010
Bracket, Air Switching Valve
[08.1980 - 12.1981] 22R..RT135..USA |
25716-35010 |
— | ||
|
25740
|
25740
25740-35010
Valve Assy, Air Control
[08.1980 - 12.1981] 22R..RT135..USA |
25740-35010 |
— | ||
|
9010508018
|
9010508018
90105-08018 New Genuine Part |
90105-08018 |
US $2.77 |
||
| replacement | |||||
|
9010508018
|
9010508018
90105-08112 New Genuine Part |
90105-08112 |
from US $2.04 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
