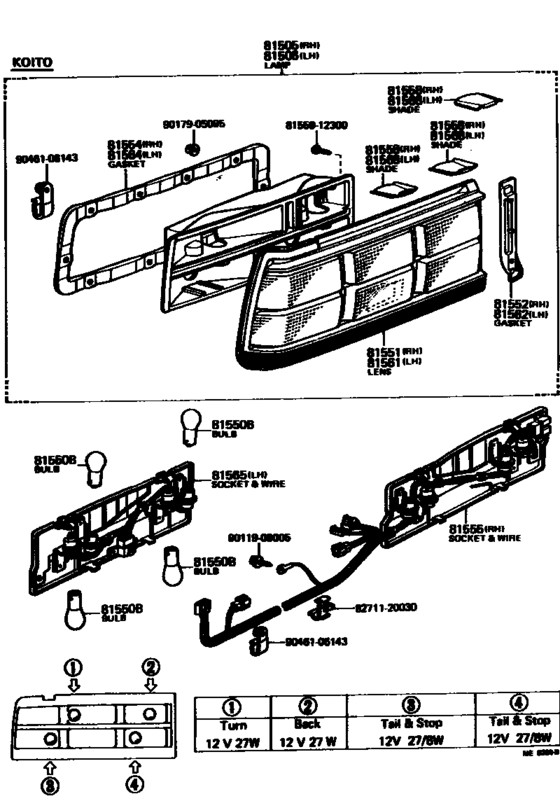

Rear Combination Lamp ([08.1980 - ] (8008- )SED) Diagram Toyota CORONA
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- RT135
- grade
- DLX
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- CORONA
- From
- 08.1980
- To
- 12.1981
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81505
|
81505
81505-29156 Lamp Sub-Assy, Rear Combination, Rh[08.1980 - 12.1981] RT135..SED |
81505-29156 |
US $356.72 |
||
|
81506
|
81506
81506-29076 Lamp Sub-Assy, Rear Combination, Lh[08.1980 - 12.1981] RT135..SED |
81506-29076 |
US $356.72 |
||
|
81550B
|
81550B
99132-11270 Bulb, Fog Lamp[09.1978 - 12.1981] RT13# 12V 27W,12V 27W |
99132-11270 |
US $3.36 |
||
|
81550B
|
81550B
99132-21270 Bulb (For Front Turn Signal Lamp)[09.1978 - 12.1981] RT13# 12V 27/8W,12V 27/8W |
99132-21270 |
US $4.32 |
||
|
81551
|
81551
81551-20481 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1980 - 12.1981] RT135..SED |
81551-20481 |
US $238.78 |
||
|
81552
|
81552
81554-20481
Gasket, Rear Combination Lamp Lens, Rh
[08.1980 - 12.1981] RT135..SED |
81554-20481 |
— | ||
|
81554
|
81554
81552-20481 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [08.1980 - 12.1981] RT135..SED |
81552-20481 |
US $17.33 |
||
|
81555
|
81555
81555-20502 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1980 - 12.1981] RT135..SED |
81555-20502 |
US $132.50 |
||
|
81558
|
81558
81557-20480 Shade, License Plate Lamp, RhREAR COMBINATION LAMP, NO.1 RH [08.1980 - 12.1981] RT135..SED |
81557-20480 |
US $2.18 |
||
|
81561
|
81561
81561-20421 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1980 - 12.1981] RT135..SED |
81561-20421 |
US $238.78 |
||
|
81562
|
81562
81564-20481
Gasket, Rear Combination Lamp Lens, Lh
[08.1980 - 12.1981] RT135..SED |
81564-20481 |
— | ||
|
81564
|
81564
81552-20481 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [08.1980 - 12.1981] RT135..SED |
81552-20481 |
US $17.33 |
||
|
81565
|
81565
81565-20441 Socket & Wire Sub-Assy, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1980 - 12.1981] RT135..SED |
81565-20441 |
US $87.36 |
||
|
81568
|
81568
81557-20480 Shade, License Plate Lamp, RhREAR COMBINATION LAMP, NO.1 RH [08.1980 - 12.1981] RT135..SED |
81557-20480 |
US $2.18 |
||
|
8155912300
|
8155912300
81559-12300
Bracket,foglamp,rh No.2
|
81559-12300 |
— | ||
| replacement | |||||
|
8155912300
|
8155912300
81279-91D01
Bracket,foglamp,rh No.2
|
81279-91D01 |
— | ||
|
8271120030
|
8271120030
82711-20030 Clamp, Wiring Harness |
82711-20030 |
US $3.35 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9046106143
|
9046106143
90461-06143 New Genuine Part |
90461-06143 |
US $1.89 |
||
