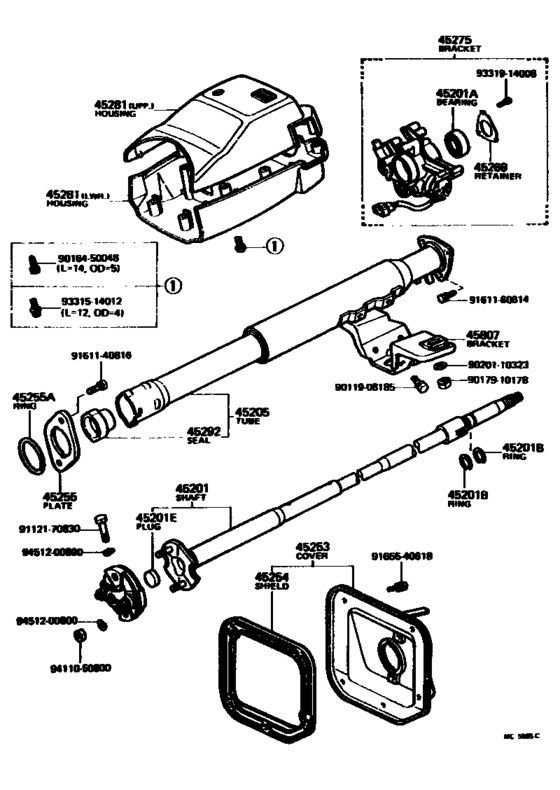

Steering Column & Shaft ([09.1978 - ] (7809- )DLX) Diagram Toyota CORONA
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- RT135
- grade
- DLX
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- CORONA
- From
- 08.1980
- To
- 12.1981
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Passive Belt
- LPB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45201
|
45201
45210-20080
Shaft Sub-Assy, Steering Main
[09.1978 - 12.1981] RT13#..DLX |
45210-20080 |
— | ||
|
45201
|
45201
45210-20090
Shaft Sub-Assy, Steering Main
[08.1979 - 12.1981] RT13#..(3HC,4FC,5F)..DLX W/POWER STEERING |
45210-20090 |
— | ||
|
45201A
|
45201A
90363-18038 Bearing(For Steering Main Shaft)[09.1978 - 12.1981] RT13#..DLX |
90363-18038 |
US $10.56 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[09.1978 - 12.1981] RT13# T=1.20,T=1.2 |
90520-17042 |
from US $0.86 |
||
|
45201B
|
45201B
90520-17196 Ring, Shaft Snap(For Steering Main Shaft)[09.1978 - 12.1981] RT13#..DLX T=1.35-1.45,T=1.4 |
90520-17196 |
US $2.97 |
||
|
45201E
|
45201E
90333-21008 Plug, Plate(For Steering Main Shaft)[09.1978 - 12.1981] RT13#..DLX |
90333-21008 |
US $2.33 |
||
|
45205
|
45205
45870-20070
Tube Sub-Assy, Steering Column
[08.1979 - 12.1981] RT13#..(3HC,4FC,5F)..DLX W/POWER STEERING |
45870-20070 |
— | ||
|
45205
|
45205
45870-22080
Tube Sub-Assy, Steering Column
[09.1978 - 12.1981] RT13#..DLX |
45870-22080 |
— | ||
|
45253
|
45253
45025-20042
Cover, Steering Column Hole
[08.1980 - 12.1981] RT135..DLX |
45025-20042 |
— | ||
|
45253
|
45253
45025-20062
Cover, Steering Column Hole
[08.1980 - 12.1981] RT135 W/POWER STEERING |
45025-20062 |
— | ||
|
45254
|
45254
45254-20051
Shield, Steering Column Hole
[05.1979 - 12.1981] RT13# |
45254-20051 |
— | ||
|
45255
|
45255
45255-12020 Plate, Steering Column Hole Cover[09.1978 - 12.1981] RT13# |
45255-12020 |
US $4.22 |
||
|
45255A
|
45255A
90301-45202
Grommet Or Ring, O(For Steering Column Clamp)
[09.1978 - 12.1981] RT13# |
90301-45202 |
— | ||
|
45269
|
45269
45269-35010 Retainer, Main Shaft Bearing[09.1978 - 12.1981] RT13#..DLX |
45269-35010 |
US $6.41 |
||
|
45275
|
45275
45280-20210 Bracket, Steering Column, Upper[08.1980 - 12.1981] RT135..DLX |
45280-20210 |
US $237.33 |
||
| replacement | |||||
|
45275
|
45275
45280-20200 Bracket, Steering Column, Upper[08.1980 - 12.1981] RT135..DLX |
45280-20200 |
US $206.75 |
||
|
45281
|
45281
45286-22192-01 Housing, Steering ColumnSTEERING COLUMN [08.1980 - 12.1981] RT135..DLX UPR,BLACK,BLACK |
45286-22192-01 |
US $39.02 |
||
| replacement | |||||
|
45281
|
45281
45286-60935-01
Cover, Steering Column
[08.1980 - 12.1981] RT135..DLX UPR,BLACK,BLACK |
45286-60935-01 |
— | ||
|
45281
|
45281
45286-22192-02 Housing, Steering ColumnSTEERING COLUMN [08.1980 - 12.1981] RT135..DLX UPR,DARK WINE,RED/MAROON |
45286-22192-02 |
US $39.02 |
||
| replacement | |||||
|
45281
|
45281
45286-60935-01
Cover, Steering Column
[08.1980 - 12.1981] RT135..DLX UPR,DARK WINE,RED/MAROON |
45286-60935-01 |
— | ||
|
45281
|
45281
45286-22192-06 Housing, Steering ColumnSTEERING COLUMN [08.1980 - 12.1981] RT135..DLX UPR,LIGHT BROWN,BROWN |
45286-22192-06 |
US $39.02 |
||
| replacement | |||||
|
45281
|
45281
45286-60935-01
Cover, Steering Column
[08.1980 - 12.1981] RT135..DLX UPR,LIGHT BROWN,BROWN |
45286-60935-01 |
— | ||
|
45281
|
45281
45287-22122-01
Housing, Steering Column
[08.1980 - 12.1981] RT135..DLX LWR,BLACK,BLACK |
45287-22122-01 |
— | ||
| replacement | |||||
|
45281
|
45281
45286-60935-01
Cover, Steering Column
[08.1980 - 12.1981] RT135..DLX LWR,BLACK,BLACK |
45286-60935-01 |
— | ||
|
45281
|
45281
45287-22122-02
Housing, Steering Column
[08.1980 - 12.1981] RT135..DLX LWR,DARK WINE,RED/MAROON |
45287-22122-02 |
— | ||
| replacement | |||||
|
45281
|
45281
45286-60935-01
Cover, Steering Column
[08.1980 - 12.1981] RT135..DLX LWR,DARK WINE,RED/MAROON |
45286-60935-01 |
— | ||
|
45281
|
45281
45287-22122-06
Housing, Steering Column
[08.1980 - 12.1981] RT135..DLX LWR,LIGHT BROWN,BROWN |
45287-22122-06 |
— | ||
| replacement | |||||
|
45281
|
45281
45286-60935-01
Cover, Steering Column
[08.1980 - 12.1981] RT135..DLX LWR,LIGHT BROWN,BROWN |
45286-60935-01 |
— | ||
|
45292
|
45292
45292-22050
Seal, Main Shaft Lower Dust
[09.1978 - 12.1981] RT13# |
45292-22050 |
— | ||
| replacement | |||||
|
45292
|
45292
45292-22040
Seal, Main Shaft Lower Dust
[09.1978 - 12.1981] RT13# |
45292-22040 |
— | ||
|
45807
|
45807
45807-20070
Bracket Sub-Assy, Steering Column Upper Support
[09.1978 - 12.1981] RT13#..DLX |
45807-20070 |
— | ||
|
9011908185
|
9011908185
90119-08185 New Genuine Part |
90119-08185 |
US $1.75 |
||
| replacement | |||||
|
9011908185
|
9011908185
90119-08165 New Genuine Part |
90119-08165 |
US $2.62 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.88 |
||
|
9017910178
|
9017910178
90179-10178 New Genuine Part |
90179-10178 |
US $1.75 |
||
|
9020110323
|
9020110323
90201-10323 New Genuine Part |
90201-10323 |
US $6.26 |
||
|
9112170830
|
9112170830
91121-70830 New Genuine Part |
91121-70830 |
US $1.89 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
9165540618
|
9165540618
91655-40618
New Genuine Part
|
91655-40618 |
— | ||
| replacement | |||||
|
9165540618
|
9165540618
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.28 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.28 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
