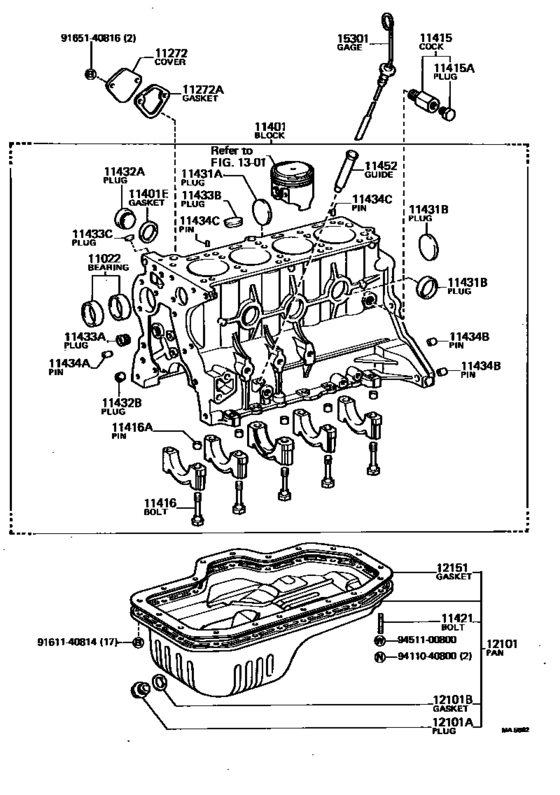

Cylinder Block ([01.1982 - 10.1982] (8201-8210)18RGEU) Diagram Toyota CORONA
- Year
- 1982 - 1982
- Sales region
- Japan
- Frame
- RT141
- grade
- GT
- body
- SED
- ENGINE
- 18RGEU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1982
- Gear Shift Type
- 5F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11022
|
11022
11022-33010
Bearing Set, Pump Drive Shaft
[01.1982 - 10.1982] 18RGEU..RT141 |
11022-33010 |
— | ||
|
11272
|
11272
11272-26010 Cover, Cylinder Block Side, No.2[01.1982 - 08.1985] 18RGEU..RT141; 3TGTEU..TT142 |
11272-26010 |
US $15.43 |
||
|
11272A
|
11272A
11274-88260 Gasket, Cylinder Block Side Cover, No.2[01.1982 - 08.1982] 18RGEU..RT141 |
11274-88260 |
US $4.51 |
||
| replacement | |||||
|
11272A
|
11272A
11274-88281 Gasket, Cylinder Block Side Cover, No.2[01.1982 - 08.1982] 18RGEU..RT141 |
11274-88281 |
US $5.24 |
||
|
11272A
|
11272A
11274-88281 Gasket, Cylinder Block Side Cover, No.2[08.1982 - 08.1985] 18RGEU..RT141; 3TGTEU..TT142 |
11274-88281 |
US $5.24 |
||
|
11401
|
11401
11401-39395
Block Sub-Assy, Cylinder
[01.1982 - 10.1982] 18RGEU..RT141 |
11401-39395 |
— | ||
|
11401E
|
11401E
90430-32003 Gasket(For Cylinder Block Plug)[01.1982 - 10.1982] 18RGEU..RT141 |
90430-32003 |
US $2.33 |
||
|
11415
|
11415
96431-03833
Cock Sub-Assy, Water Drain(For Cylinder Block)
[01.1982 - 06.1984] 18RGEU..RT141; 2YPU..YT140; 12TJ,3T#..TT14# |
96431-03833 |
— | ||
| replacement | |||||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[01.1982 - 06.1984] 18RGEU..RT141; 2YPU..YT140; 12TJ,3T#..TT14# |
96431-53828 |
US $9.96 |
||
|
11415A
|
11415A
96431-23814 Plug, Water Drain Cock(For Cylinder Block)[01.1982 - 04.1985] 5KJ..KT147 L=28; 18RGEU..RT141 L=28; 12TJ,3T#..TT14# L=28 |
96431-23814 |
from US $7.29 |
||
|
11416
|
11416
90910-02042 Bolt(For Crankshaft Bearing Cap Set)[01.1982 - 10.1982] 18RGEU..RT141 |
90910-02042 |
US $4 |
||
|
11416A
|
11416A
90253-16014
Pin, Ring(For Crankshaft Bearing Cap Set)
[01.1982 - 10.1982] 18RGEU..RT141 |
90253-16014 |
— | ||
|
11421
|
11421
90116-08057
Bolt, Stud(For Timing Gear Cover)
[01.1982 - 08.1985] 18RGEU..RT141 L=28,S=13&13; 3TGTEU..TT142 L=28,S=13&13 |
90116-08057 |
— | ||
|
11431A
|
11431A
96411-44500 Plug, Tight, No.4[01.1982 - 10.1982] 18RGEU..RT141 OD=45 |
96411-44500 |
from US $4.02 |
||
|
11431B
|
11431B
96411-44000 Plug, Tight, No.1[01.1982 - 12.1987] 18RGEU..RT141 OD=40; 1SU..ST140 OD=40; 3AU,4AGEU..AT14# OD=40 |
96411-44000 |
from US $4.19 |
||
|
11432A
|
11432A
90341-32038
Plug, W/head Taper Screw, No.1
[01.1982 - 10.1982] 18RGEU..RT141 |
90341-32038 |
— | ||
|
11432B
|
11432B
90072-34402
Plug, W/head Taper Screw, No.2
[01.1982 - 10.1982] 18RGEU..RT141 |
90072-34402 |
— | ||
| replacement | |||||
|
11432B
|
11432B
90344-51005 Plug, W/head Taper Screw, No.1[01.1982 - 10.1982] 18RGEU..RT141 |
90344-51005 |
US $3.20 |
||
|
11433A
|
11433A
90344-53011 Plug, W/head Taper Screw, No.1[01.1982 - 10.1982] 18RGEU..RT141 |
90344-53011 |
from US $3.84 |
||
|
11433B
|
11433B
90334-09015
Plug, Straight, No.2
[01.1982 - 10.1982] 18RGEU..RT141 |
90334-09015 |
— | ||
|
11433C
|
11433C
90072-33603
Plug, Straight, No.3
[01.1982 - 10.1982] 18RGEU..RT141 |
90072-33603 |
— | ||
|
11434A
|
11434A
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[01.1982 - 10.1982] 18RGEU..RT141 長さ＝１１，外径＝１１ |
90253-11001 |
US $1.92 |
||
|
11434B
|
11434B
90253-17012
Pin, Straight(For Clutch Housing Set)
[01.1982 - 10.1982] 18RGEU..RT141 |
90253-17012 |
— | ||
|
11434C
|
11434C
90250-08120 Pin, Straight, No.1[01.1982 - 12.1987] 5KJ..KT147 長さ＝１８，外径＝８,L=18,OD=8; 18RGEU..RT141 長さ＝１８，外径＝８,L=18,OD=8; 12TJ,3T#..TT14# 長さ＝１８，外径＝８,L=18,OD=8 |
90250-08120 |
from US $1.07 |
||
|
11452
|
11452
11452-40010 Guide, Oil Level Gage[01.1982 - 04.1998] 18RGEU..RT141; 2YPU..YT140 |
11452-40010 |
US $10.31 |
||
|
12101
|
12101
12101-39335 Pan Sub-Assy, Oil[01.1982 - 10.1982] 18RGEU..RT141 |
12101-39335 |
US $438.26 |
||
| replacement | |||||
|
12101
|
12101
12101-39336 Pan Sub-Assy, Oil[01.1982 - 10.1982] 18RGEU..RT141 |
12101-39336 |
US $436.80 |
||
|
12101A
|
12101A
90341-18089
Plug(For Oil Pan Drain)
[01.1982 - 07.1984] 1C..CT14#; 5KJ..KT147; 18RGEU..RT141; 1SU..ST140; 2YPU..YT140; 3AU,4AGEU..AT14#; 12TJ,3T#..TT14# |
90341-18089 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90033-41020 Plug(For Oil Pan Drain)[01.1982 - 07.1984] 1C..CT14#; 5KJ..KT147; 18RGEU..RT141; 1SU..ST140; 2YPU..YT140; 3AU,4AGEU..AT14#; 12TJ,3T#..TT14# |
90033-41020 |
from US $2.46 |
||
|
12101B
|
12101B
90430-18244
Gasket(For Oil Pan Drain Plug)
[01.1982 - 07.1984] 1C..CT14#; 5KJ..KT147; 18RGEU..RT141; 1SU..ST140; 2YPU..YT140; 3AU,4AGEU..AT14#; 12TJ,3T#..TT14# |
90430-18244 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[01.1982 - 07.1984] 1C..CT14#; 5KJ..KT147; 18RGEU..RT141; 1SU..ST140; 2YPU..YT140; 3AU,4AGEU..AT14#; 12TJ,3T#..TT14# |
90430-18023 |
from US $1.07 |
||
|
12151
|
12151
12151-33010
Gasket, Oil Pan
[01.1982 - 10.1982] 18RGEU..RT141 |
12151-33010 |
— | ||
|
15301
|
15301
15301-33013
Gage Sub-Assy, Oil Level
[01.1982 - 10.1982] 18RGEU..RT141 |
15301-33013 |
— | ||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $1.60 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
