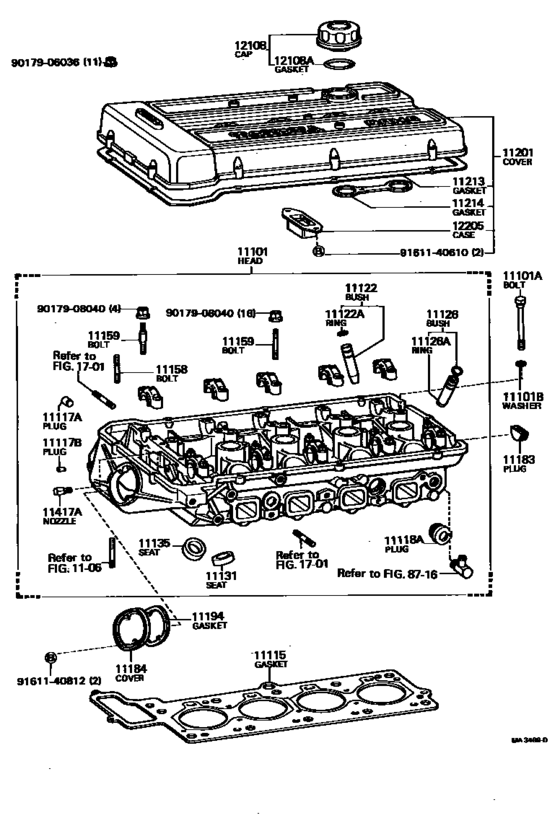

Cylinder Head ([01.1982 - 10.1982] (8201-8210)18RGEU) Diagram Toyota CORONA
- Year
- 1982 - 1982
- Sales region
- Japan
- Frame
- RT141
- grade
- GT
- body
- SED
- ENGINE
- 18RGEU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1982
- Gear Shift Type
- 5F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-39267 Head Sub-Assy, Cylinder[01.1982 - 10.1982] 18RGEU..RT141 |
11101-39267 |
US $4,906.72 |
||
|
11101A
|
11101A
90072-70103 Bolt(For Cylinder Head Set)[01.1982 - 08.1985] 18RGEU..RT141 *12-1.25PX164-22; 3TGTEU..TT142 *12-1.25PX164-22 |
90072-70103 |
US $11.84 |
||
|
11101B
|
11101B
90201-12222 Washer, Plate(For Cylinder Head Set)[01.1982 - 04.1998] 1C,2C..CT14#; 18RGEU..RT141; 3TGTEU..TT142 |
90201-12222 |
from US $1.15 |
||
|
11115
|
11115
11115-88270
Gasket, Cylinder Head
[01.1982 - 10.1982] 18RGEU..RT141 |
11115-88270 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-88231
Gasket, Cylinder Head
[01.1982 - 10.1982] 18RGEU..RT141 |
11115-88231 |
— | ||
|
11117A
|
11117A
90072-33614 Plug, W/head Taper Screw, No.1[01.1982 - 10.1982] 18RGEU..RT141 |
90072-33614 |
US $3.93 |
||
|
11117B
|
11117B
90072-33616
Plug, W/head Taper Screw, No.2
[01.1982 - 10.1982] 18RGEU..RT141 |
90072-33616 |
— | ||
|
11118A
|
11118A
90341-32031 Plug, W/head Straight Screw, No.2[01.1982 - 10.1982] 18RGEU..RT141 |
90341-32031 |
US $7.16 |
||
|
11122
|
11122
11122-88250
Bush, Intake Valve Guide
[01.1982 - 08.1985] 18RGEU..RT141; 3TGTEU..TT142 |
11122-88250 |
— | ||
|
11122A
|
11122A
90520-13092 Ring, Shaft Snap (For Valve Guide Bush)[01.1982 - 08.1985] 18RGEU..RT141; 3TGTEU..TT142 |
90520-13092 |
US $2.06 |
||
|
11126
|
11126
11122-88250
Bush, Intake Valve Guide
[01.1982 - 08.1985] 18RGEU..RT141; 3TGTEU..TT142 |
11122-88250 |
— | ||
|
11126A
|
11126A
90520-13092 Ring, Shaft Snap (For Valve Guide Bush)[01.1982 - 08.1985] 18RGEU..RT141; 3TGTEU..TT142 |
90520-13092 |
US $2.06 |
||
|
11131
|
11131
11131-34021 Seat, Intake Valve[01.1982 - 10.1982] 18RGEU..RT141 STD |
11131-34021 |
US $29.41 |
||
|
11131
|
11131
11132-34032
Seat, Intake Valve
[01.1982 - 10.1982] 18RGEU..RT141 O/S 0.03 |
11132-34032 |
— | ||
|
11135
|
11135
11135-34040 Seat, Exhaust Valve[01.1982 - 10.1982] 18RGEU..RT141 STD |
11135-34040 |
US $22.42 |
||
|
11135
|
11135
11136-34050
Seat, Exhaust Valve
[01.1982 - 10.1982] 18RGEU..RT141 O/S 0.03 |
11136-34050 |
— | ||
|
11158
|
11158
90072-11617
Bolt, Stud(For Head To Cylinder Head Cover)
[01.1982 - 10.1982] 18RGEU..RT141 L=35,S=11&11 |
90072-11617 |
— | ||
| replacement | |||||
|
11158
|
11158
90116-06027
Bolt, Stud(For Head To Cylinder Head Cover)
[01.1982 - 10.1982] 18RGEU..RT141 L=35,S=11&11 |
90116-06027 |
— | ||
|
11159
|
11159
90072-11601
Bolt, Stud(For Head To Camshaft Bearing Cap)
[01.1982 - 10.1982] 18RGEU..RT141 L=58.5,S=18&17.5 |
90072-11601 |
— | ||
|
11159
|
11159
92132-60835
Bolt, Stud(For Head To Camshaft Bearing Cap)
[01.1982 - 08.1985] 18RGEU..RT141 L=51,S=16&16; 3TGTEU..TT142 L=51,S=16&16 |
92132-60835 |
— | ||
|
11183
|
11183
11183-88260
Plug, Semicircular
[01.1982 - 08.1985] 18RGEU..RT141; 3TGTEU..TT142 |
11183-88260 |
— | ||
|
11184
|
11184
11184-88260
Cover, Cylinder Head, Front
[01.1982 - 08.1985] 18RGEU..RT141; 3TGTEU..TT142 |
11184-88260 |
— | ||
|
11194
|
11194
11194-88260
Gasket, Cylinder Head Front Cover
[01.1982 - 08.1985] 18RGEU..RT141; 3TGTEU..TT142 |
11194-88260 |
— | ||
|
11201
|
11201
11201-39216
Cover Sub-Assy, Cylinder Head
[01.1982 - 10.1982] 18RGEU..RT141 |
11201-39216 |
— | ||
|
11213
|
11213
11213-88270
Gasket, Cylinder Head Cover
[01.1982 - 10.1982] 18RGEU..RT141 |
11213-88270 |
— | ||
|
11214
|
11214
11214-88270
Gasket, Cylinder Head Cover, No.2
[01.1982 - 10.1982] 18RGEU..RT141 |
11214-88270 |
— | ||
|
11417A
|
11417A
90072-73103
Nozzle, Oil
[01.1982 - 08.1985] 18RGEU..RT141; 3TGTEU..TT142 |
90072-73103 |
— | ||
|
12108
|
12108
12108-49015 Cap Sub-Assy, Oil Filler[01.1982 - 10.1982] 18RGEU..RT141 |
12108-49015 |
US $15.66 |
||
|
12108A
|
12108A
90301-44049
Gasket(For Oil Filler Cap)
[01.1982 - 10.1982] 18RGEU..RT141 |
90301-44049 |
— | ||
|
12205
|
12205
12205-88210
Case Sub-Assy, Ventilation
[01.1982 - 10.1982] 18RGEU..RT141 |
12205-88210 |
— | ||
|
9017906036
|
9017906036
90179-06036
Nut, Cap(For Cylinder Head Cover)
|
90179-06036 |
— | ||
| replacement | |||||
|
9017906036
|
9017906036
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
