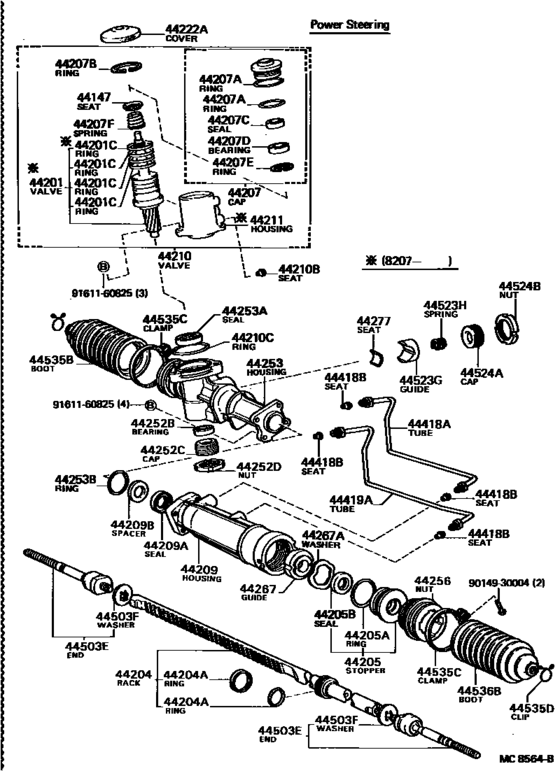

Front Steering Gear & Link ([01.1982 - 08.1985] POWER STEERING (8201-8508)AT141,RT141,TT142) Diagram Toyota CORONA
- Year
- 1982 - 1982
- Sales region
- Japan
- Frame
- RT141
- grade
- GT
- body
- SED
- ENGINE
- 18RGEU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1982
- Gear Shift Type
- 5F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44147
|
44147
44147-24020
Seat, Spool Valve Spring
[01.1982 - 08.1985] AT141,RT141,TT142 |
44147-24020 |
— | ||
|
44201
|
44201
44201-24011
Valve Sub-Assy, Power Steering Control
[07.1982 - 08.1985] AT141,RT141,TT142 |
44201-24011 |
— | ||
|
44201C
|
44201C
90562-38001
Ring(For Power Steering Control Valve)
[07.1982 - 08.1985] AT141,RT141,TT142 |
90562-38001 |
— | ||
|
44204
|
44204
44204-14010 Rack Sub-Assy, Power Steering[01.1982 - 08.1985] AT141,RT141,TT142 |
44204-14010 |
US $227.14 |
||
|
44204A
|
44204A
90301-33003 Ring(For Rack Steering Piston)[01.1982 - 08.1985] AT141,RT141,TT142 INNER |
90301-33003 |
US $4.32 |
||
|
44204A
|
44204A
90562-37001 Ring(For Rack Steering Piston)[01.1982 - 08.1985] AT141,RT141,TT142 OUTER |
90562-37001 |
US $4.37 |
||
| replacement | |||||
|
44204A
|
44204A
90562-37004 Ring(For Rack Steering Piston)[01.1982 - 08.1985] AT141,RT141,TT142 OUTER |
90562-37004 |
US $3.86 |
||
|
44205
|
44205
44205-24010 Stopper Sub-Assy, Cylinder End[01.1982 - 08.1985] AT141,RT141,TT142 |
44205-24010 |
US $57.80 |
||
|
44205A
|
44205A
90301-49004 Ring, O(For Cylinder End Stopper)[01.1982 - 08.1985] AT141,RT141,TT142 |
90301-49004 |
US $4.08 |
||
|
44205B
|
44205B
90311-25008 Seal, Oil(For Cylinder End Stopper)[01.1982 - 08.1985] AT141,RT141,TT142 |
90311-25008 |
US $2.75 |
||
|
44207
|
44207
44207-24010 Cap Sub-Assy, Valve[01.1982 - 08.1985] AT141,RT141,TT142 |
44207-24010 |
US $99.01 |
||
|
44207A
|
44207A
90301-37001 Ring, O(For Valve Cap Sub-Assy)[01.1982 - 08.1985] AT141,RT141,TT142 OD=42.6 |
90301-37001 |
US $4.08 |
||
|
44207A
|
44207A
90301-41001 Ring, O(For Valve Cap Sub-Assy)[01.1982 - 08.1985] AT141,RT141,TT142 OD=45 |
90301-41001 |
US $4.08 |
||
|
44207B
|
44207B
96151-04500 Ring, Hole Snap (For Needle Roller)[01.1982 - 08.1985] AT141,RT141,TT142 |
96151-04500 |
from US $1.14 |
||
|
44207C
|
44207C
90311-19006 Seal, Oil(For Power Steering Control Valve)[01.1982 - 08.1985] AT141,RT141,TT142 |
90311-19006 |
from US $3.04 |
||
|
44207D
|
44207D
90363-19002 Bearing(For Power Steering Control Valve)[01.1982 - 08.1985] AT141,RT141,TT142 |
90363-19002 |
US $21.67 |
||
|
44207E
|
44207E
96151-03500 Ring, Snap(For Valve Cap Sub-Assy)[01.1982 - 08.1985] AT141,RT141,TT142 |
96151-03500 |
US $2.91 |
||
|
44207F
|
44207F
90502-15001
Spring, Conical(For Power Steering Control Valve)
[01.1982 - 08.1985] AT141,RT141,TT142 |
90502-15001 |
— | ||
|
44209
|
44209
44209-14010 Housing Sub-Assy, Power Steering Cylinder[01.1982 - 08.1985] AT141,RT141,TT142 |
44209-14010 |
US $177.63 |
||
|
44209A
|
44209A
90311-25006
Seal(For Power Steering Cylinder Housing)
[01.1982 - 08.1985] AT141,RT141,TT142 |
90311-25006 |
— | ||
|
44209B
|
44209B
90560-26004 Spacer(For Power Steering Cylinder Housing)[01.1982 - 08.1985] AT141,RT141,TT142 |
90560-26004 |
US $8.30 |
||
|
44210
|
44210
44210-14041
Valve Assy, Power Steering Control
[01.1982 - 07.1982] RT141,TT142 |
44210-14041 |
— | ||
| replacements | |||||
|
44210
|
44210
44210-14H03 Valve Assy, Power Steering Control[01.1982 - 07.1982] RT141,TT142 |
44210-14H03 |
US $591.14 |
||
|
44210
|
44210
44210-14H04
Valve Assy, Power Steering Control
[01.1982 - 07.1982] RT141,TT142 |
44210-14H04 |
— | ||
|
44210
|
44210
44210-14042 Valve Assy, Power Steering Control[07.1982 - 08.1985] AT141,RT141,TT142 |
44210-14042 |
US $620.26 |
||
|
44210B
|
44210B
90410-06002 Seat, Union(For Power Steering Control Valve)[01.1982 - 08.1985] AT141,RT141,TT142 |
90410-06002 |
US $3.52 |
||
|
44210C
|
44210C
96711-24060 Ring, O(For Power Steering Control Valve)[01.1982 - 08.1985] AT141,RT141,TT142 |
96711-24060 |
from US $2.96 |
||
|
44211
|
44211
44211-14020 Housing, Control Valve[07.1982 - 08.1985] AT141,RT141,TT142 |
44211-14020 |
US $141.23 |
||
|
44222A
|
44222A
45222-24010 Cover, Dust(For Power Steering Gear)[01.1982 - 08.1985] AT141,RT141,TT142 |
45222-24010 |
US $9.03 |
||
|
44252B
|
44252B
90363-13002 Bearing(For Power Steering Control Valve Lower)[01.1982 - 08.1985] AT141,RT141,TT142 |
90363-13002 |
from US $21.67 |
||
|
44252C
|
44252C
45524-16010 Cap(For Power Steering Pinion)[01.1982 - 08.1985] AT141,RT141,TT142 |
45524-16010 |
US $8.91 |
||
|
44252D
|
44252D
90179-36002 Nut(For Power Steering Pinion Cap)[01.1982 - 08.1985] AT141,RT141,TT142 |
90179-36002 |
US $4.89 |
||
|
44253
|
44253
44253-14011 Housing, Power Steering Rack[01.1982 - 07.1982] RT141,TT142 |
44253-14011 |
US $189.28 |
||
| replacement | |||||
|
44253
|
44253
44253-14H00
Housing, Power Steering Rack
[01.1982 - 07.1982] RT141,TT142 |
44253-14H00 |
— | ||
|
44253
|
44253
44253-14012
Housing, Power Steering Rack
[07.1982 - 08.1985] AT141,RT141,TT142 |
44253-14012 |
— | ||
|
44253A
|
44253A
90310-30002
Seal, Oil(For Power Steering Rack Housing)
[01.1982 - 07.1982] RT141,TT142 OD=43.3 |
90310-30002 |
— | ||
|
44253A
|
44253A
90310-31001 Seal, Oil(For Power Steering Control Valve)[07.1982 - 08.1985] AT141,RT141,TT142 OD=44.3 |
90310-31001 |
US $1.75 |
||
|
44253B
|
44253B
90301-38001 Ring, O(For Power Steering Rack Housing)[01.1982 - 08.1985] AT141,RT141,TT142 |
90301-38001 |
US $4.08 |
||
|
44256
|
44256
44256-24010 Nut, Cylinder End Stopper[01.1982 - 08.1985] AT141,RT141,TT142 |
44256-24010 |
US $50.96 |
||
|
44267
|
44267
44267-24010 Guide, Rack End[01.1982 - 08.1985] AT141,RT141,TT142 |
44267-24010 |
US $6.26 |
||
|
44267A
|
44267A
90206-43001 Washer(For Rack End Guide)[01.1982 - 08.1985] AT141,RT141,TT142 |
90206-43001 |
US $4.51 |
||
|
44277
|
44277
44277-24010 Seat, Rack Guide[01.1982 - 08.1985] AT141,RT141,TT142 |
44277-24010 |
US $8.59 |
||
|
44418A
|
44418A
44418-14011 Tube, Steering Right Turn Pressure[01.1982 - 08.1985] AT141,RT141,TT142 |
44418-14011 |
US $24.75 |
||
|
44418B
|
44418B
90410-05004
Seat, Union(For Power Steering Control Valve)
[01.1982 - 08.1985] AT141,RT141,TT142 |
90410-05004 |
— | ||
|
44419A
|
44419A
44419-14011 Tube, Steering Left Turn Pressure[01.1982 - 08.1985] AT141,RT141,TT142 |
44419-14011 |
US $20.24 |
||
|
44503E
|
44503E
45503-29015 End Sub-Assy, Steering Rack(For Power Steering)[01.1982 - 01.1983] AT140,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
45503-29015 |
US $93.18 |
||
| replacement | |||||
|
44503E
|
44503E
45503-29125 End Sub-Assy, Steering Rack(For Power Steering)[01.1982 - 01.1983] AT140,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
45503-29125 |
US $103.60 |
||
|
44503F
|
44503F
90214-14003 Washer, Claw(For Power Steering Rack End)[01.1982 - 01.1983] AT140,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX OD=43 |
90214-14003 |
US $2.91 |
||
|
44523G
|
44523G
45523-24010 Guide, Rack(For Power Steering)[01.1982 - 08.1985] AT141,RT141,TT142 |
45523-24010 |
US $8.59 |
||
| replacements | |||||
|
44523G
|
44523G
44277-20040
Seat, Rack Guide
[01.1982 - 08.1985] AT141,RT141,TT142 |
44277-20040 |
— | ||
|
44523G
|
44523G
45523-20040 Guide, Rack(For Steering Gear)[01.1982 - 08.1985] AT141,RT141,TT142 |
45523-20040 |
from US $17.82 |
||
|
44523G
|
44523G
45524-50010 Cap, Rack Housing[01.1982 - 08.1985] AT141,RT141,TT142 |
45524-50010 |
US $8.74 |
||
|
44523G
|
44523G
90501-23007 Spring(For Power Steering Rack Guide)[01.1982 - 08.1985] AT141,RT141,TT142 |
90501-23007 |
from US $1.49 |
||
|
44523G
|
44523G
90501-29036 Spring(For Steering Gear Rack Guide)[01.1982 - 08.1985] AT141,RT141,TT142 |
90501-29036 |
US $3.64 |
||
|
44523H
|
44523H
90501-23024 Spring(For Power Steering Rack Guide)[01.1982 - 12.1987] AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
90501-23024 |
US $1.31 |
||
|
44524A
|
44524A
45524-16010 Cap(For Power Steering Pinion)[01.1982 - 12.1987] AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
45524-16010 |
US $8.91 |
||
|
44524B
|
44524B
90179-36002 Nut(For Power Steering Pinion Cap)[01.1982 - 12.1987] AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
90179-36002 |
US $4.89 |
||
|
44535B
|
44535B
45535-14011
Boot, Steering Rack No.1(For Power Steering)
[01.1982 - 08.1985] AT141,RT141,TT142 |
45535-14011 |
— | ||
|
44535C
|
44535C
90461-10554
Clamp(For Power Steering Rack Boot)
[01.1982 - 08.1985] AT141,RT141,TT142 |
90461-10554 |
— | ||
|
44535D
|
44535D
90467-18003 Clip Or Clamp(For Ventilation Hose)[01.1982 - 12.1987] AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
90467-18003 |
from US $1.92 |
||
|
44536B
|
44536B
45535-14011
Boot, Steering Rack No.1(For Power Steering)
[01.1982 - 08.1985] AT141,RT141,TT142 |
45535-14011 |
— | ||
|
9014930004
|
9014930004
90149-30004 Screw(For Steering Rack Boot Clamp) |
90149-30004 |
US $1.76 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
