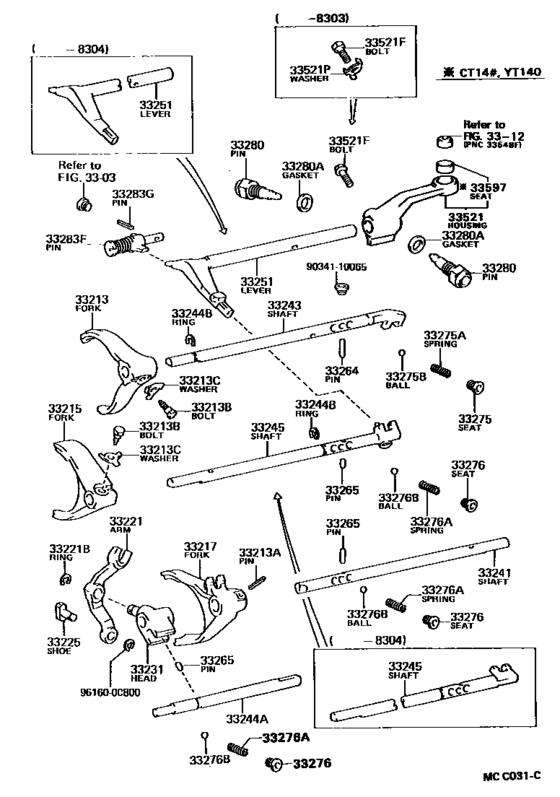

Gear Shift Fork & Lever Shaft (Mtm) ([01.1982 - 08.1985] (8201-8508)RT141,TT142..5F..GT,GTT ; (8209-9110) YT140..5F ; (8508-9111)CT14#) Diagram Toyota CORONA
- Year
- 1982 - 1982
- Sales region
- Japan
- Frame
- RT141
- grade
- GT
- body
- SED
- ENGINE
- 18RGEU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1982
- Gear Shift Type
- 5F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33213
|
33213
33212-22020 Fork, Gear Shift, No.1[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
33212-22020 |
US $43.10 |
||
| replacement | |||||
|
33213
|
33213
33212-30050 Fork, Gear Shift, No.1[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
33212-30050 |
from US $35.47 |
||
|
33213A
|
33213A
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
90254-05016 |
from US $2.05 |
||
|
33213B
|
33213B
90113-06005 Bolt(For Shift Fork Set)[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
90113-06005 |
US $5.39 |
||
| replacement | |||||
|
33213B
|
33213B
90105-06143 Bolt(For Shift Fork Set)[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
90105-06143 |
US $1.31 |
||
|
33213C
|
33213C
90215-09002 Washer, Lock(For Shift Fork Set)[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
90215-09002 |
US $1.89 |
||
|
33215
|
33215
33213-22030
Fork, Gear Shift, No.2
[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
33213-22030 |
— | ||
| replacement | |||||
|
33215
|
33215
33213-22040
Fork, Gear Shift, No.2
[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
33213-22040 |
— | ||
|
33217
|
33217
33214-22020 Fork, 5Th & Reverse Shift[01.1982 - 04.1983] RT141,TT142..5F..(GT,GTT) |
33214-22020 |
US $64.65 |
||
| replacement | |||||
|
33217
|
33217
33214-22030
Fork, Gear Shift, No.3
[01.1982 - 04.1983] RT141,TT142..5F..(GT,GTT) |
33214-22030 |
— | ||
|
33221
|
33221
33221-22010 Arm, Reverse Shift[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
33221-22010 |
US $37.71 |
||
|
33221B
|
33221B
90523-10002 Ring, E(For Reverse Shift Arm)[01.1982 - 04.1983] RT141,TT142,YT140..5F..(DLX,GT,GTT) |
90523-10002 |
US $2.18 |
||
|
33225
|
33225
33225-22010 Shoe, Shift Arm[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
33225-22010 |
US $13.40 |
||
|
33231
|
33231
33231-22010 Head, Reverse Shift[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
33231-22010 |
US $52.27 |
||
|
33241
|
33241
33244-22020 Shaft, Reverse Shift Fork[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
33244-22020 |
US $36.55 |
||
|
33243
|
33243
33242-22020 Shaft, Gear Shift Fork, No.1[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
33242-22020 |
US $51.54 |
||
|
33244A
|
33244A
33245-22010 Shaft, 5Th Shift Fork[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
33245-22010 |
US $33.78 |
||
|
33244B
|
33244B
90520-12003 Ring(For Reverse Shift Head)[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
90520-12003 |
from US $0.92 |
||
|
33245
|
33245
33243-22030
Shaft, 3Rd & 4Th Shift Fork
[01.1982 - 04.1983] RT141,TT142..5F..(GT,GTT) |
33243-22030 |
— | ||
| replacements | |||||
|
33245
|
33245
33240-22022 Shaft Assy, Gear Shift Fork, No.2[01.1982 - 04.1983] RT141,TT142..5F..(GT,GTT) |
33240-22022 |
US $106.29 |
||
|
33245
|
33245
33214-22030
Fork, Gear Shift, No.3
[01.1982 - 04.1983] RT141,TT142..5F..(GT,GTT) |
33214-22030 |
— | ||
|
33251
|
33251
33251-22030
Lever, Shift & Select
[01.1982 - 04.1983] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
33251-22030 |
— | ||
| replacement | |||||
|
33251
|
33251
33251-22051
Lever, Shift & Select
[01.1982 - 04.1983] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
33251-22051 |
— | ||
|
33264
|
33264
33264-22010 Pin, Or Ball, Shift Inter Lock, No.1[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
33264-22010 |
US $2.18 |
||
|
33265
|
33265
33265-22010 Pin, Shift Inter Lock, No.2[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) 長さ＝１１．２，外径＝４,L=11.2 |
33265-22010 |
US $1.89 |
||
|
33265
|
33265
33266-22010 Pin, Shift Inter Lock, No.2[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) 長さ＝１３．６，外径＝６,L=13.6 |
33266-22010 |
US $2.04 |
||
|
33265
|
33265
90250-06007 Pin, Shift Inter Lock, No.2[01.1982 - 08.1985] RT141,TT142,YT140..5F 長さ＝８．６，外径＝６,L=8.6 |
90250-06007 |
from US $0.87 |
||
|
33275
|
33275
90341-12004 Plug, Oil Pan(For Oil Cooler)[01.1982 - 01.1984] RT141,TT142,YT140..MTM..(DLX,GT,GTT,STD) 外径＝１８ |
90341-12004 |
US $2.24 |
||
|
33275A
|
33275A
90501-13004 Spring, Compression (For Shift Detent Ball Low Side)[01.1982 - 08.1985] RT141,TT142,YT140..MTM..(DLX,GT,GTT,STD) 長さ＝２０．６５ |
90501-13004 |
US $2.33 |
||
| replacement | |||||
|
33275A
|
33275A
90501-14123 Spring, Compression (For Shift Detent Ball Low Side)[01.1982 - 08.1985] RT141,TT142,YT140..MTM..(DLX,GT,GTT,STD) 長さ＝２０．６５ |
90501-14123 |
US $0.73 |
||
|
33275B
|
33275B
90360-10003 Ball(For Transmission Oil Pump Cover)[01.1982 - 08.1985] AT14#,KT147,RT141,ST140,TT14#,YT140..MTM |
90360-10003 |
from US $1.29 |
||
|
33276
|
33276
90341-12005 Plug, W/head Straight Screw, No.2[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
90341-12005 |
US $4.95 |
||
| replacement | |||||
|
33276
|
33276
90341-12018 Plug, W/head Straight Screw, No.2[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
90341-12018 |
US $4.19 |
||
|
33276A
|
33276A
90501-13004 Spring, Compression (For Shift Detent Ball Low Side)[01.1982 - 08.1985] RT141,TT142,YT140..MTM..(DLX,GT,GTT,STD) |
90501-13004 |
US $2.33 |
||
| replacement | |||||
|
33276A
|
33276A
90501-14123 Spring, Compression (For Shift Detent Ball Low Side)[01.1982 - 08.1985] RT141,TT142,YT140..MTM..(DLX,GT,GTT,STD) |
90501-14123 |
US $0.73 |
||
|
33276B
|
33276B
90360-10003 Ball(For Transmission Oil Pump Cover)[01.1982 - 08.1985] RT141,TT142,YT140..MTM..(DLX,GT,GTT,STD) |
90360-10003 |
from US $1.29 |
||
|
33280
|
33280
33280-22020
Pin Assy, Reverse Restrict
[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) RH |
33280-22020 |
— | ||
|
33280
|
33280
33280-22030
Pin Assy, Reverse Restrict
[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) LH |
33280-22030 |
— | ||
|
33280A
|
33280A
90430-18007
Gasket(For Water Hole)
[01.1982 - 08.1984] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
90430-18007 |
— | ||
| replacement | |||||
|
33280A
|
33280A
90430-18008 Gasket[01.1982 - 08.1984] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
90430-18008 |
from US $0.92 |
||
|
33283F
|
33283F
33280-22010 Pin Assy, Reverse Restrict[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
33280-22010 |
US $31.16 |
||
|
33283G
|
33283G
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[01.1982 - 08.1985] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
90254-05016 |
from US $2.05 |
||
|
33521
|
33521
33502-14100
Housing, Shift Lever
[01.1982 - 08.1985] RT141,TT142..5F..(GT,GTT) |
33502-14100 |
— | ||
|
33521F
|
33521F
90113-08001 Bolt(For 5Th Shift Arm)[01.1982 - 03.1983] RT141,TT142,YT140..5F..(DLX,GT,GTT,STD) |
90113-08001 |
US $3.32 |
||
|
33521P
|
33521P
90215-09001 Washer(For 5Th Shift Arm)[01.1982 - 03.1983] RT141,TT142,YT140..5F..(DLX,GT,GTT) |
90215-09001 |
US $2.33 |
||
|
9034110065
|
9034110065
90341-10065 Plug, Straight, No.1 |
90341-10065 |
from US $3.52 |
||
|
9616000800
|
9616000800
96160-00800 Ring, E(For Counter Weight) |
96160-00800 |
from US $0.90 |
||
