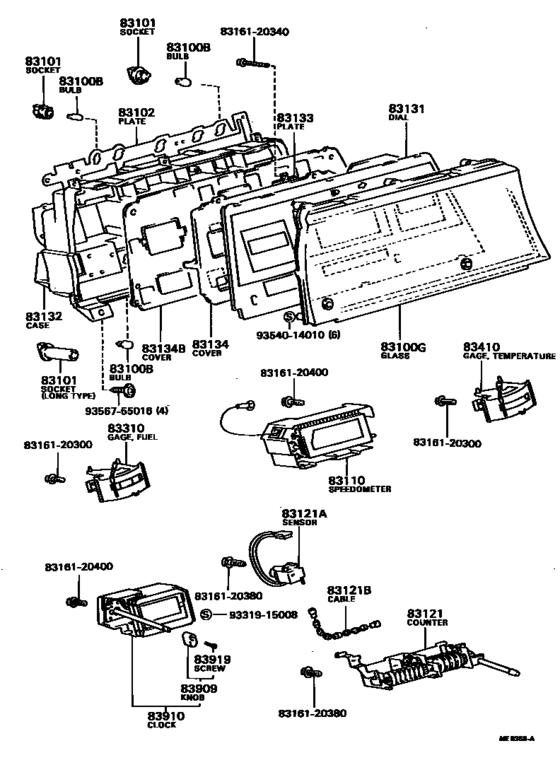

Meter ([01.1982 - 10.1983] (8201-8310)GXA) Diagram Toyota CORONA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- ST140
- grade
- GXA
- body
- SED
- ENGINE
- 1SU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1983
- Gear Shift Type
- 5F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 １２Ｖ １．２Ｗ ソケット無し,12V 1.4W |
90981-11018 |
from US $2.24 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 １２Ｖ ３．４Ｗ,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 １２Ｖ ３．４Ｗ,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83138-2B180
Glass, Combination Meter
[01.1982 - 10.1983] ST140..GXA |
83138-2B180 |
— | ||
|
83101
|
83101
83101-12020
Socket Sub-Assy, Combination Meter Bulb
[01.1982 - 10.1983] ST140..GXA BULB:12V 3.4W,LONG TYPE(L=40) |
83101-12020 |
— | ||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 BULB:12V 1.4W(D=11.3) |
83101-14040 |
US $2.98 |
||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V BULB:12V 3.4W(OD=18) |
83101-20040 |
from US $1.70 |
||
|
83101
|
83101
83101-20070 Socket Sub-Assy, Combination Meter Bulb[10.1983 - 12.1987] AT14#,CT147,KT147,ST140,TT142..SED,V W/GREEN CAP BULB |
83101-20070 |
US $7.84 |
||
|
83102
|
83102
83247-2B220
Plate Sub-Assy, Combination Meter Circuit, No.1
[01.1982 - 10.1983] ST140..GXA |
83247-2B220 |
— | ||
|
83110
|
83110
83110-20870 Speedometer Assy[01.1982 - 10.1982] ST140..GXA |
83110-20870 |
US $1,284.19 |
||
| replacement | |||||
|
83110
|
83110
83110-2B050
Speedometer Assy
[01.1982 - 10.1982] ST140..GXA |
83110-2B050 |
— | ||
|
83110
|
83110
83110-2B050
Speedometer Assy
[10.1982 - 10.1983] ST140..GXA |
83110-2B050 |
— | ||
|
83110
|
83110
83110-2B300 Speedometer Assy[10.1983 - 08.1985] AT140,KT147,ST140..SED,V |
83110-2B300 |
US $336.34 |
||
|
83121
|
83121
83121-2B020 Counter, Total[01.1982 - 08.1985] AT141,RT141,ST140,TT142..SED..(EXA,GT,GTT,GXA) |
83121-2B020 |
US $235.87 |
||
|
83121A
|
83121A
83121-2B040 Sensor, Speed[01.1982 - 08.1985] AT141,RT141,ST140,TT142..SED..(EXA,GT,GTT,GXA) |
83121-2B040 |
US $270.82 |
||
|
83121B
|
83121B
83121-2B060
Cable, Counter And Sensor
[01.1982 - 08.1985] AT141,RT141,ST140,TT142..SED..(EXA,GT,GTT,GXA) |
83121-2B060 |
— | ||
|
83131
|
83131
83145-2B360
Dial, Meter, No.1
[01.1982 - 10.1983] ST140..GXA |
83145-2B360 |
— | ||
|
83132
|
83132
83132-20420 Case, Combination Meter[10.1983 - 12.1987] AT140,CT147,KT147,ST140..SED,V |
83132-20420 |
US $90.27 |
||
|
83132
|
83132
83132-2B200
Case, Combination Meter
[01.1982 - 10.1983] ST140..GXA |
83132-2B200 |
— | ||
|
83133
|
83133
83134-2B280
Plate, Combination Meter, No.1
[01.1982 - 10.1983] ST140..GXA |
83134-2B280 |
— | ||
|
83134
|
83134
83134-2B260
Cover, Combination Meter, No.1
[01.1982 - 10.1983] ST140..GXA |
83134-2B260 |
— | ||
|
83134B
|
83134B
83134-2B180
Cover, Combination Meter, No.2
[01.1982 - 10.1983] ST140..GXA |
83134-2B180 |
— | ||
|
83310
|
83310
83243-2B140 Gage Assy, Fuel Receiver[01.1982 - 10.1983] ST140..GXA |
83243-2B140 |
US $131.04 |
||
|
83410
|
83410
83244-20240 Gage Assy, Water Temperature Receiver[10.1983 - 12.1987] AT140,CT147,KT147,ST140..SED,V |
83244-20240 |
US $58.68 |
||
|
83410
|
83410
83244-2B100
Gage Assy, Water Temperature Receiver
[01.1982 - 10.1983] ST140..GXA |
83244-2B100 |
— | ||
|
83909
|
83909
83909-14200 Knob, Clock[01.1982 - 10.1983] ST140..GXA |
83909-14200 |
US $6.12 |
||
|
83910
|
83910
83910-20350
Clock Assy
[01.1982 - 10.1983] ST140..GXA DIGITAL |
83910-20350 |
— | ||
|
83919
|
83919
83919-12230 Screw, Clock[01.1982 - 08.1985] AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX DIGITAL |
83919-12230 |
US $1.92 |
||
|
8316120300
|
8316120300
83161-20300 Case, Combination Meter Mirror, No.1 |
83161-20300 |
US $1.75 |
||
|
8316120340
|
8316120340
83161-20340 Case, Combination Meter Mirror, No.1 |
83161-20340 |
US $1.46 |
||
|
8316120380
|
8316120380
83161-20380 Case, Combination Meter Mirror, No.1 |
83161-20380 |
US $1.14 |
||
|
8316120400
|
8316120400
83161-20400
Case, Combination Meter Mirror, No.1
|
83161-20400 |
— | ||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.99 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
