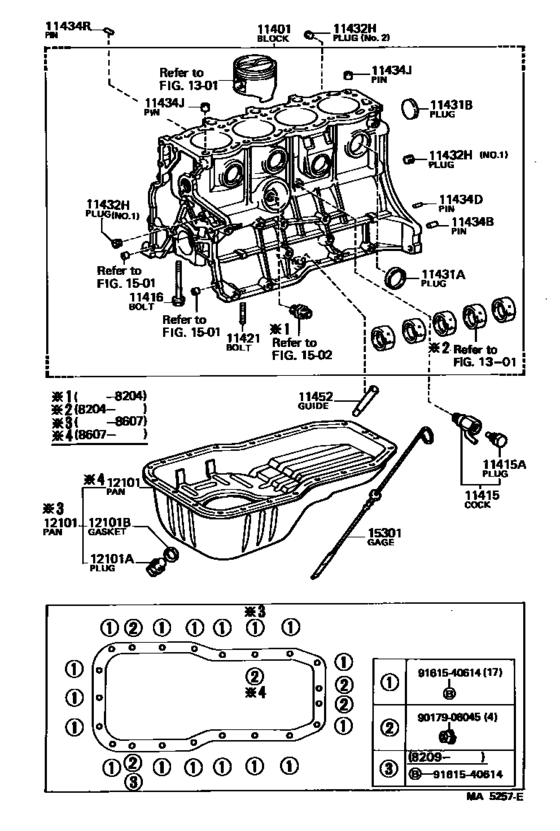

Cylinder Block ([01.1982 - 12.1987] (8201-8712)1SU) Diagram Toyota CORONA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- ST140
- grade
- GX
- body
- HT
- ENGINE
- 1SU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1983
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-69086 Block Sub-Assy, Cylinder[01.1982 - 07.1986] 1SU..ST140 |
11401-69086 |
US $2,620.80 |
||
| replacements | |||||
|
11401
|
11401
11381-63012 Retainer, Engine Rear Oil Seal[01.1982 - 07.1986] 1SU..ST140 |
11381-63012 |
US $64.60 |
||
|
11401
|
11401
12101-63012 Pan Sub-Assy, Oil[01.1982 - 07.1986] 1SU..ST140 |
12101-63012 |
US $189.28 |
||
|
11401
|
11401
11401-69087 Block Sub-Assy, Cylinder[01.1982 - 07.1986] 1SU..ST140 |
11401-69087 |
US $2,649.92 |
||
|
11401
|
11401
12101-63021
Pan Sub-Assy, Oil
[01.1982 - 07.1986] 1SU..ST140 |
12101-63021 |
— | ||
|
11401
|
11401
90341-12012 Plug(For Oil Pan Drain)[01.1982 - 07.1986] 1SU..ST140 |
90341-12012 |
from US $2.56 |
||
|
11401
|
11401
90430-12031 Gasket (For Oil Pan Drain Plug)[01.1982 - 07.1986] 1SU..ST140 |
90430-12031 |
from US $0.88 |
||
|
11415
|
11415
90910-09076 Cock Sub-Assy, Water Drain(For Cylinder Block)[01.1982 - 12.1987] 1SU..ST140 |
90910-09076 |
US $12.52 |
||
| replacement | |||||
|
11415
|
11415
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)[01.1982 - 12.1987] 1SU..ST140 |
90345-52001 |
from US $3.68 |
||
|
11415A
|
11415A
90109-14003 Plug, Water Drain Cock(For Cylinder Block)[01.1982 - 10.1987] 1SU..ST140 |
90109-14003 |
US $6.26 |
||
|
11416
|
11416
90105-10028 Bolt(For Crankshaft Bearing Cap Set)[01.1982 - 12.1987] 1SU..ST140 *10-1.25PX67-18 |
90105-10028 |
US $3.84 |
||
|
11421
|
11421
90116-06022 Bolt, Stud(For Valve Push Rod Cover)[01.1982 - 04.1982] 1SU..ST140 |
90116-06022 |
from US $1.95 |
||
|
11431A
|
11431A
96411-43500 Plug, Tight, No.1[01.1982 - 04.1998] 1C,2C..CT14# OD=35; 1SU..ST140 OD=35; 3AU,4AGEU..AT14# OD=35 |
96411-43500 |
from US $3.88 |
||
|
11431B
|
11431B
96411-44000 Plug, Tight, No.1[01.1982 - 12.1987] 18RGEU..RT141 OD=40; 1SU..ST140 OD=40; 3AU,4AGEU..AT14# OD=40 |
96411-44000 |
from US $4.17 |
||
|
11432H
|
11432H
90344-52003 Plug, W/head Taper Screw, No.1[01.1982 - 12.1987] 1SU..ST140 NO.2 |
90344-52003 |
US $1.40 |
||
|
11432H
|
11432H
90344-53008 Plug, W/head Taper Screw, No.2[01.1982 - 12.1987] 1SU..ST140 NO.1 |
90344-53008 |
US $1.76 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[01.1982 - 04.1998] 5KJ..KT147 長さ＝２２，外径＝１０,L=22,OD=10; 1SU..ST140 長さ＝２２，外径＝１０,L=22,OD=10; 2YPU..YT140 長さ＝２２，外径＝１０,L=22,OD=10; 3AU,4AGEU..AT14# 長さ＝２２，外径＝１０,L=22,OD=10; 12TJ,3T#..TT14# 長さ＝２２，外径＝１０,L=22,OD=10 |
90250-10113 |
from US $1.03 |
||
|
11434D
|
11434D
90250-06003 Pin, Straight[01.1982 - 12.1987] 1SU..ST140 長さ＝１４，外径＝６,L=14,OD=6; 3AU,4AGEU..AT14# 長さ＝１４，外径＝６,L=14,OD=6 |
90250-06003 |
from US $1.05 |
||
|
11434J
|
11434J
90253-13017 Pin, Ring W/head[01.1982 - 12.1987] 1SU..ST140 |
90253-13017 |
from US $1.62 |
||
|
11452
|
11452
11452-63010 Guide, Oil Level Gage[01.1982 - 12.1987] 1SU..ST140 |
11452-63010 |
US $11.65 |
||
|
12101
|
12101
12101-69055 Pan Sub-Assy, Oil[01.1982 - 07.1986] 1SU..ST140 |
12101-69055 |
US $193.65 |
||
| replacements | |||||
|
12101
|
12101
90341-12012 Plug(For Oil Pan Drain)[01.1982 - 07.1986] 1SU..ST140 |
90341-12012 |
from US $2.56 |
||
|
12101
|
12101
12101-63012 Pan Sub-Assy, Oil[01.1982 - 07.1986] 1SU..ST140 |
12101-63012 |
US $189.28 |
||
|
12101
|
12101
90430-12031 Gasket (For Oil Pan Drain Plug)[01.1982 - 07.1986] 1SU..ST140 |
90430-12031 |
from US $0.88 |
||
|
12101A
|
12101A
90341-18089
Plug(For Oil Pan Drain)
[01.1982 - 07.1984] 1C..CT14#; 5KJ..KT147; 18RGEU..RT141; 1SU..ST140; 2YPU..YT140; 3AU,4AGEU..AT14#; 12TJ,3T#..TT14# |
90341-18089 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90033-41020 Plug(For Oil Pan Drain)[01.1982 - 07.1984] 1C..CT14#; 5KJ..KT147; 18RGEU..RT141; 1SU..ST140; 2YPU..YT140; 3AU,4AGEU..AT14#; 12TJ,3T#..TT14# |
90033-41020 |
from US $2.32 |
||
|
12101B
|
12101B
90430-18244
Gasket(For Oil Pan Drain Plug)
[01.1982 - 07.1984] 1C..CT14#; 5KJ..KT147; 18RGEU..RT141; 1SU..ST140; 2YPU..YT140; 3AU,4AGEU..AT14#; 12TJ,3T#..TT14# |
90430-18244 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[01.1982 - 07.1984] 1C..CT14#; 5KJ..KT147; 18RGEU..RT141; 1SU..ST140; 2YPU..YT140; 3AU,4AGEU..AT14#; 12TJ,3T#..TT14# |
90430-18023 |
from US $1.07 |
||
|
15301
|
15301
15301-63010 Gage Sub-Assy, Oil Level[01.1982 - 08.1985] 1SU..ST140 |
15301-63010 |
US $11.50 |
||
| replacement | |||||
|
15301
|
15301
15301-63030 Gage Sub-Assy, Oil Level[01.1982 - 08.1985] 1SU..ST140 |
15301-63030 |
US $11.50 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $1.92 |
||
|
9161540614
|
9161540614
91615-40614 Screw Or Bolt(for Valve Rocker Shaft Lock) |
91615-40614 |
US $1.89 |
||
| replacement | |||||
|
9161540614
|
9161540614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
