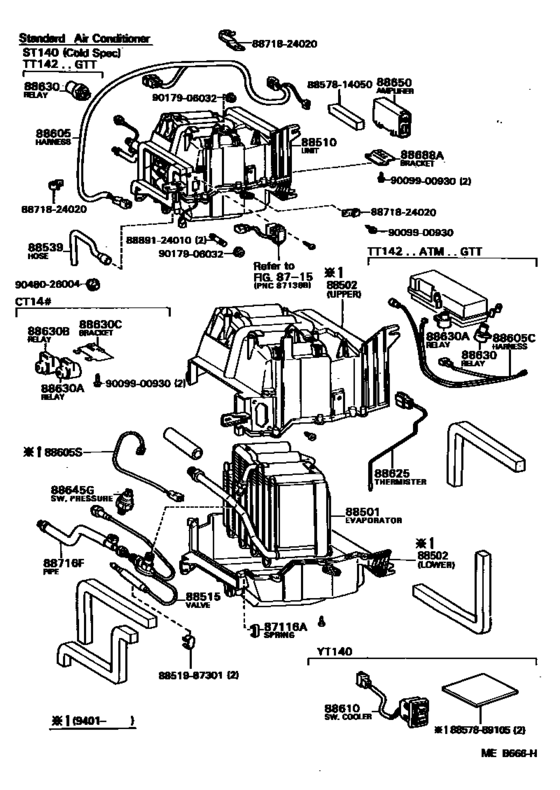

Heating & Air Conditioning - Cooler Unit ([01.1982 - ] (8201- )) Diagram Toyota CORONA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- ST140
- grade
- GX
- body
- HT
- ENGINE
- 1SU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1983
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87116A
|
87116A
87116-14010
Spring, Heater Case Fastening
[10.1983 - 12.1987] AT14#,KT147,ST140,TT142 |
87116-14010 |
— | ||
|
88501
|
88501
88501-14180
Evaporator Sub-Assy, Cooler, No.1
[01.1982 - 08.1982] AT140,CT14#,RT141,ST140,TT14# |
88501-14180 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-24022
Evaporator Sub-Assy, Cooler, No.1
[01.1982 - 08.1982] AT140,CT14#,RT141,ST140,TT14# |
88501-24022 |
— | ||
|
88501
|
88501
88501-24020
Evaporator Sub-Assy, Cooler, No.1
[08.1982 - 12.1982] AT140,CT14#,RT141,ST140,TT14#,YT140 |
88501-24020 |
— | ||
|
88501
|
88501
88501-24021
Evaporator Sub-Assy, Cooler, No.1
[12.1982 - 04.1986] AT14#,CT14#,KT147,ST140,TT14#,YT140 |
88501-24021 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-24022
Evaporator Sub-Assy, Cooler, No.1
[12.1982 - 04.1986] AT14#,CT14#,KT147,ST140,TT14#,YT140 |
88501-24022 |
— | ||
|
88510
|
88510
88510-14320
Unit Assy, Cooler
[01.1982 - 10.1983] AT140,CT14#,RT141,ST140,TT14#,YT140 |
88510-14320 |
— | ||
|
88510
|
88510
88510-24020
Unit Assy, Cooler
[10.1983 - 12.1987] AT14#,KT147,ST140,TT142 |
88510-24020 |
— | ||
|
88515
|
88515
88515-16030
Valve, Cooler Expansion
[12.1982 - 11.1988] AT14#,CT14#,KT147,ST140,TT14#,YT140 |
88515-16030 |
— | ||
| replacement | |||||
|
88515
|
88515
88515-16031 Valve, Cooler Expansion[12.1982 - 11.1988] AT14#,CT14#,KT147,ST140,TT14#,YT140 |
88515-16031 |
US $109.52 |
||
|
88515
|
88515
88515-20040 Valve, Cooler Expansion[01.1982 - 12.1982] AT140,CT14#,RT141,ST140,TT14#,YT140 |
88515-20040 |
US $119.39 |
||
| replacement | |||||
|
88515
|
88515
88515-16031 Valve, Cooler Expansion[01.1982 - 12.1982] AT140,CT14#,RT141,ST140,TT14#,YT140 |
88515-16031 |
US $109.52 |
||
|
88539
|
88539
88539-24010
Hose, Cooler Unit Drain, No.1
[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
88539-24010 |
— | ||
|
88605
|
88605
88605-14400
Harness Sub-Assy, Cooler Wiring, No.1
[01.1982 - 12.1987] ST140 |
88605-14400 |
— | ||
|
88605
|
88605
88605-14430
Harness Sub-Assy, Cooler Wiring, No.1
[01.1982 - 12.1987] ST140 COLD SPEC |
88605-14430 |
— | ||
|
88625
|
88625
88625-90A00
Thermistor, Cooler, No.1
[01.1982 - 10.1983] AT140,CT14#,RT141,ST140,TT14#,YT140 |
88625-90A00 |
— | ||
| replacement | |||||
|
88625
|
88625
88625-12070 Thermistor, Cooler, No.1[01.1982 - 10.1983] AT140,CT14#,RT141,ST140,TT14#,YT140 |
88625-12070 |
US $7.69 |
||
|
88630
|
88630
90987-02004 Relay Assy, Starter[01.1982 - 12.1987] ST140 COLD SPEC |
90987-02004 |
from US $28.20 |
||
| replacement | |||||
|
88630
|
88630
909870200483 [01.1982 - 12.1987] ST140 COLD SPEC |
909870200483 |
US $53.75 |
||
|
88645G
|
88645G
88645-30250
Switch, Pressure
[01.1982 - 01.1994] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 EXCL/DASH TYPE COOLER |
88645-30250 |
— | ||
|
88650
|
88650
88650-14170
Amplifier Assy, Cooler Stabilizer
[01.1982 - 12.1987] ST140 |
88650-14170 |
— | ||
|
88688A
|
88688A
88688-14320
Bracket, Cooler Stabilizer Amplifier
[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
88688-14320 |
— | ||
|
88716F
|
88716F
88716-24010
Pipe, Cooler Refrigerant Liquid, F
[01.1982 - 01.1994] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
88716-24010 |
— | ||
|
8851987301
|
8851987301
88519-87301
Holder, Remote Bulb, Parts
|
88519-87301 |
— | ||
|
8857814050
|
8857814050
88578-14050
Packing, Cooler Stabilizer Amplifier
|
88578-14050 |
— | ||
|
8857889105
|
8857889105
88578-89105
Packing, Air Purifier, No.2
|
88578-89105 |
— | ||
| replacement | |||||
|
8857889105
|
8857889105
88578-12170
Packing, Air Purifier, No.2
|
88578-12170 |
— | ||
|
8871824020
|
8871824020
88718-24020
Clamp (For Cooler Wiring Harness), No.1
|
88718-24020 |
— | ||
|
8889124010
|
8889124010
88891-24010
Packing (for Cooler)
|
88891-24010 |
— | ||
|
9009900930
|
9009900930
90099-00930
New Genuine Part
|
90099-00930 |
— | ||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9048026004
|
9048026004
90480-26004 Grommet, Heater Hose |
90480-26004 |
US $1.40 |
||
