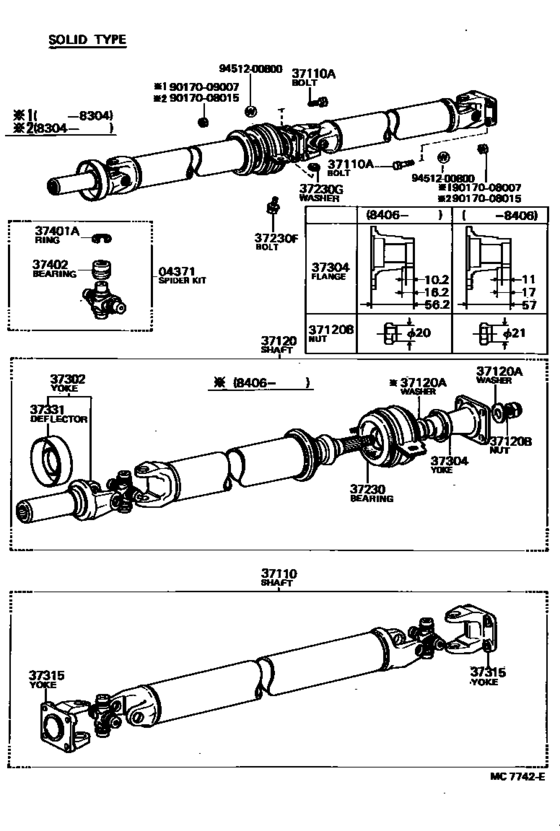

Propeller Shaft & Universal Joint ([01.1982 - 12.1987] (8201-8712)AT140,CT140,ST140) Diagram Toyota CORONA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- ST140
- grade
- GX
- body
- HT
- ENGINE
- 1SU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1983
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04371
|
04371
04371-22010 Spider Kit, Universal Joint(For Propeller Shaft)[01.1982 - 08.1985] AT140,CT14#,KT147,ST140,TT147,YT140 |
04371-22010 |
US $105.08 |
||
|
37110
|
37110
37110-14140
Shaft Assy, Propeller
[01.1982 - 11.1991] AT140,CT140,141,ST140 SHEEL TYPE |
37110-14140 |
— | ||
|
37110
|
37110
37110-22035 Shaft Assy, Propeller[01.1982 - 08.1985] AT140,CT140,ST140 SOLID TYPE |
37110-22035 |
US $623.17 |
||
|
37110A
|
37110A
90101-08062 Bolt (For Propeller Shaft)[01.1982 - 04.1983] AT140,CT14#,RT141,ST140,TT14#,YT140 |
90101-08062 |
US $2.62 |
||
|
37110A
|
37110A
90101-08082 Bolt, No.1 (For Propeller Shaft & Differential Setting)[04.1983 - 04.1998] AT14#,CT14#,KT147,ST140,TT14#,YT140 ＊８−１．２５ＰＸ２５−１２ |
90101-08082 |
US $3.20 |
||
|
37120
|
37120
37120-14120 Shaft Assy, Propeller Intermediate[01.1982 - 12.1987] AT14#,ST140..MTM SHELL TYPE |
37120-14120 |
US $776.05 |
||
|
37120
|
37120
37120-14190 Shaft Assy, Propeller Intermediate[01.1982 - 08.1985] AT140,ST140..MTM SOLID TYPE |
37120-14190 |
US $776.05 |
||
|
37120A
|
37120A
90201-18182 Washer, Plate (For Propeller Intermediate Shaft Set)[01.1982 - 04.1998] AT14#,CT14#,RT141,ST140,TT14#,YT140 外径＝３３．５，厚さ＝４．０,T=4,OD=33.5 |
90201-18182 |
from US $2.88 |
||
|
37120B
|
37120B
90179-18060
Nut (For Propeller Intermediate Shaft Setting)
[01.1982 - 06.1984] AT14#,CT14#,RT141,ST140,TT142,YT140 |
90179-18060 |
— | ||
| replacement | |||||
|
37120B
|
37120B
90179-18001 Nut (For Transfer Gear)[01.1982 - 06.1984] AT14#,CT14#,RT141,ST140,TT142,YT140 |
90179-18001 |
from US $4 |
||
|
37230
|
37230
37230-24010
Bearing Assy, Center Support, No.1
[01.1982 - 04.1998] AT14#,CT14#,RT141,ST140,YT140 |
37230-24010 |
— | ||
|
37230F
|
37230F
90119-10046 Bolt, No.1 (For Center Support Bearing)[01.1982 - 04.1998] AT14#,CT14#,RT141,ST140,TT142,YT140 |
90119-10046 |
US $1.92 |
||
|
37230G
|
37230G
90201-10008 Washer, No.2 (For Center Support Bearing)[01.1982 - 04.1998] AT14#,CT14#,RT141,ST140,YT140 厚さ＝４．５ |
90201-10008 |
US $1.76 |
||
|
37230G
|
37230G
90201-10010 Washer, No.2 (For Center Support Bearing)[01.1982 - 04.1998] AT14#,CT14#,RT141,ST140,TT142,YT140 厚さ＝１２．０,T=12.0 |
90201-10010 |
US $1.75 |
||
|
37230G
|
37230G
90201-10017 Washer, No.2 (For Center Support Bearing)[01.1982 - 04.1998] AT14#,CT14#,RT141,ST140,YT140 厚さ＝９．０ |
90201-10017 |
US $2.62 |
||
|
37230G
|
37230G
90201-10033 Washer, No.2 (For Center Support Bearing)[01.1982 - 04.1998] AT14#,CT14#,RT141,ST140,YT140 厚さ＝６．５ |
90201-10033 |
US $2.61 |
||
|
37302
|
37302
37302-14030
Yoke Sub-Assy, Universal Joint Sleeve
[01.1982 - 08.1985] AT140,KT147,ST140..MTM |
37302-14030 |
— | ||
|
37304
|
37304
37304-22012 Flange Sub-Assy, Universal Joint[01.1982 - 06.1984] AT14#,CT14#,RT141,ST140,TT142 |
37304-22012 |
US $58.53 |
||
| replacement | |||||
|
37304
|
37304
37304-22H00 Flange Sub-Assy, Universal Joint[01.1982 - 06.1984] AT14#,CT14#,RT141,ST140,TT142 |
37304-22H00 |
US $57.95 |
||
|
37315
|
37315
37315-20020 Yoke, Universal Joint Flange[01.1982 - 04.1998] AT140,CT14#,KT147,ST140,TT147,YT140 |
37315-20020 |
US $49.97 |
||
|
37331
|
37331
37331-12010
Cover, Sliding Shaft Dust
[01.1982 - 12.1987] AT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX) |
37331-12010 |
— | ||
|
37401A
|
37401A
90521-29070 Ring, Hole Snap (For Spider Bearing)[01.1982 - 04.1998] AT140,CT14#,KT147,ST140,TT147,YT140 厚さ＝２．３７５−２．４２５,T=2.375-2.425 |
90521-29070 |
US $3.06 |
||
|
37401A
|
37401A
90521-29071 Ring, Hole Snap (For Spider Bearing)[01.1982 - 04.1998] AT140,CT14#,KT147,ST140,TT147,YT140 厚さ＝２．４２５−２．４７５,T=2.425-2.475 |
90521-29071 |
US $3.06 |
||
|
37401A
|
37401A
90521-29072 Ring, Hole Snap (For Spider Bearing)[01.1982 - 04.1998] AT140,CT14#,KT147,ST140,TT147,YT140 厚さ＝２．４７５−２．５２５,T=2.475-2.525 |
90521-29072 |
US $3.06 |
||
|
37401A
|
37401A
90521-29073 Ring, Hole Snap (For Spider Bearing)[01.1982 - 04.1998] AT140,CT14#,KT147,ST140,TT147,YT140 厚さ＝２．５２５−２．５７５,T=2.525-2.575 |
90521-29073 |
US $3.06 |
||
|
37402
|
37402
37402-22020
Bearing Sub-Assy, Universal Joint Spider
[01.1982 - 04.1998] AT140,CT14#,KT147,ST140,TT147,YT140 |
37402-22020 |
— | ||
|
9017008007
|
9017008007
90170-08007 Nut (For Propeller Shaft) |
90170-08007 |
US $1.92 |
||
|
9017008015
|
9017008015
90170-08015 Nut, No.1 (For Propeller Shaft & Differential Setting) |
90170-08015 |
US $1.92 |
||
|
9017009007
|
9017009007
90170-09007
New Genuine Part
|
90170-09007 |
— | ||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
